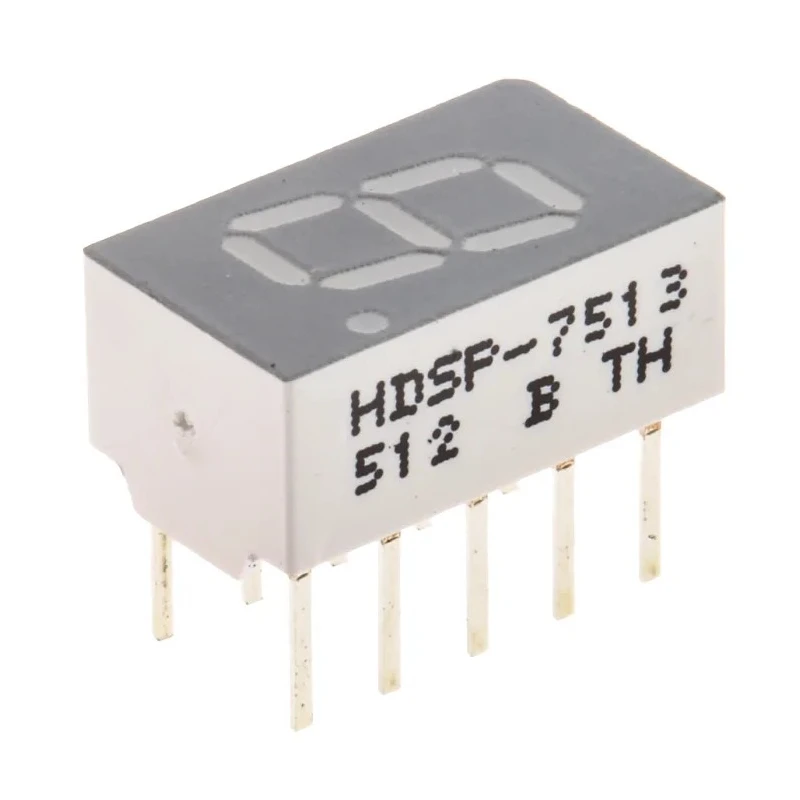

Broadcom 1 Digit 7 Segment Red LED Display Cathode, 7.6 mm Character Height HDSP-7513
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-7513 |
| Mount Type | Through Hole |
| Character height | 7.6mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.6mm |
| External Depth | 9.9mm |
| External Height | 12.7mm |
| Luminous Intensity | 1mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 1.7V |
| Forward Current | 15mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| HDSP-A103 Broadcom 7-Segment LED Display, CC Red 3.6 mcd RH DP 7.6mmBrand | Broadcom |
Key Features
- The display features a red LED color with 1 mcd luminous intensity.
- Character height is 7.6 mm with a character width of 4.2 mm.

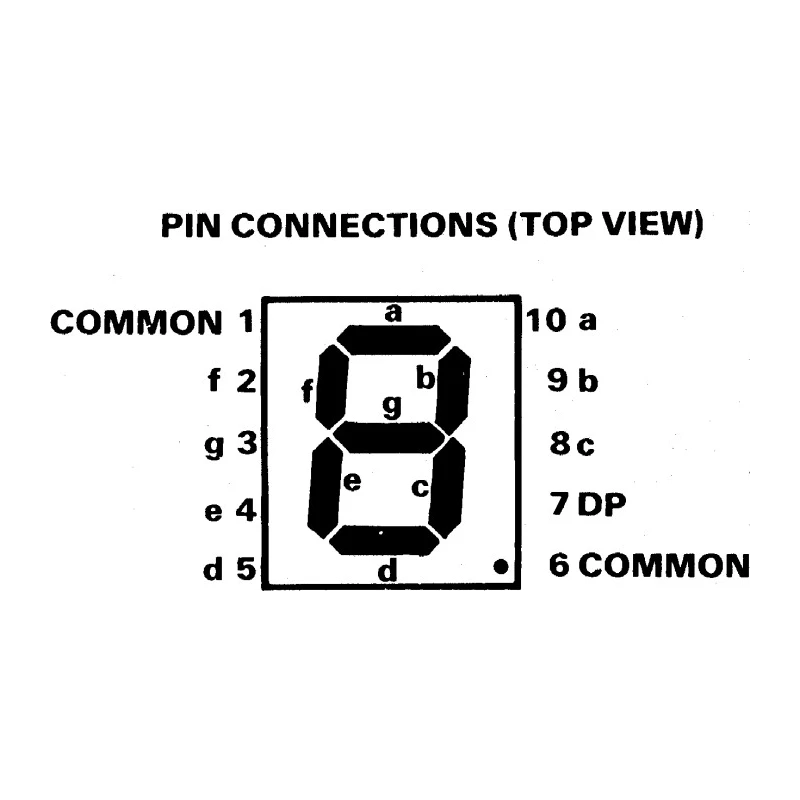

- Common cathode connection and right side decimal orientation for easy integration.
- Forward voltage rating is 1.7 V with a forward current of 15 mA.
- Operates reliably from -40°C to a maximum of 100°C.
- Meets RoHS compliance standards for environmental safety.
- Designed for electronic and display module applications requiring clear numeric representation.
Product Description
Broadcom HDSP-7513 is a highly reliable single-digit 7-segment LED display featuring a red LED color with a luminous intensity of 1 mcd. It has a character height of 7.6 mm and a character width of 4.2 mm, making it suitable for compact display applications.
The common cathode connection and through-hole mount type facilitate simple circuit integration and mechanical stability in electronic assemblies. This display has a right side decimal orientation which is optimized for numeric displays requiring decimal point indication.
The device dimensions are precise with an external width of 7.6 mm, height of 12.7 mm, and depth of 9.9 mm. Its electrical characteristics include a forward voltage of 1.7 V and a forward current of 15 mA, ensuring efficient operation at typical drive currents.
Operational temperature range spans from -40°C to 100°C, suitable for varied industrial and commercial environments. The product is RoHS compliant, guaranteeing environmental and safety standards conformity.
This 7-segment LED display is ideal for use in electronic components, LED display modules in industrial automation, instrumentation panels, digital readouts, and various consumer electronics where clear, reliable numeric display is needed.
The display features a red LED color with 1 mcd luminous intensity. Character height is 7.6 mm with a character width of 4.2 mm. Common cathode connection and right side decimal orientation for easy integration. Dimensions are 7.6 mm width, 12.7 mm height, and 9.9 mm depth.
Forward voltage rating is 1.7 V with a forward current of 15 mA. Operates reliably from -40°C to a maximum of 100°C. Meets RoHS compliance standards for environmental safety. Designed for electronic and display module applications requiring clear numeric representation.
Explore more LED Display Modules and electronic components in the EnvMart catalog for precision and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 7.6 mm.
The luminous intensity of the HDSP-7513 is 1 mcd.
The forward voltage rating for the HDSP-7513 is 1.7 V.
This model operates reliably from -40°C to a maximum of 100°C.
It features a common cathode connection.
The external dimensions are 7.6 mm in width, 12.7 mm in height, and 9.9 mm in depth.

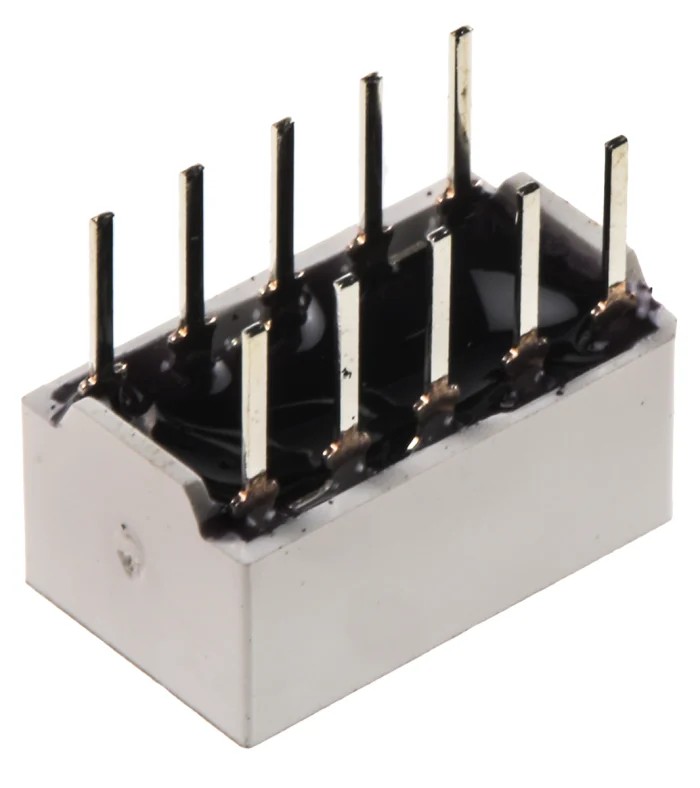

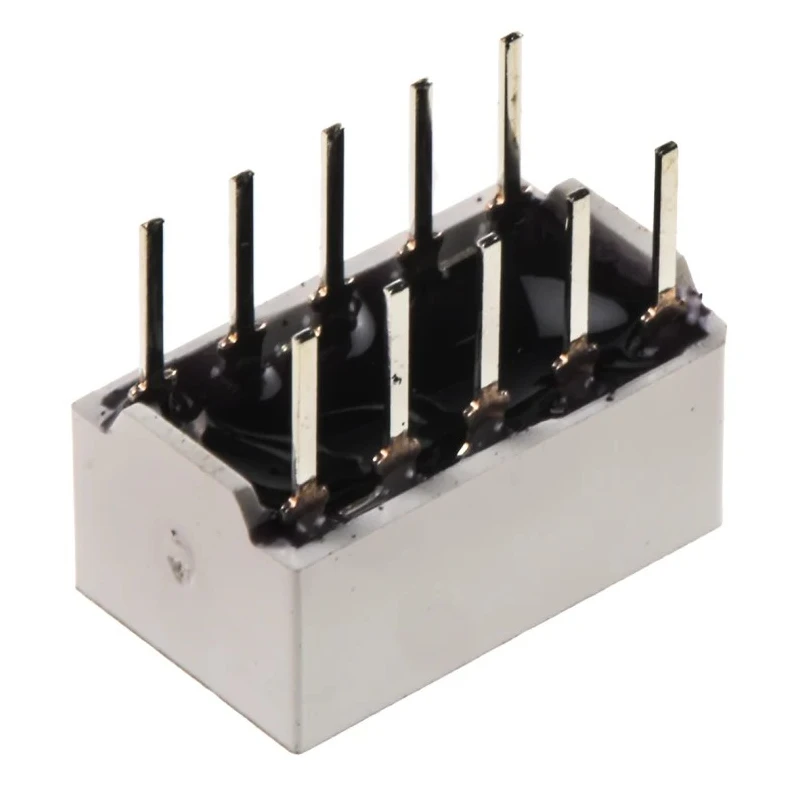

The HDSP-7513 uses a through-hole mount type for installation.
The LED color of this display is red.
The character width is 4.2 mm.
Yes, it meets RoHS compliance standards for environmental safety.
The dominant wavelength of the red LED is 626 nm.
This display has 7 segments.
