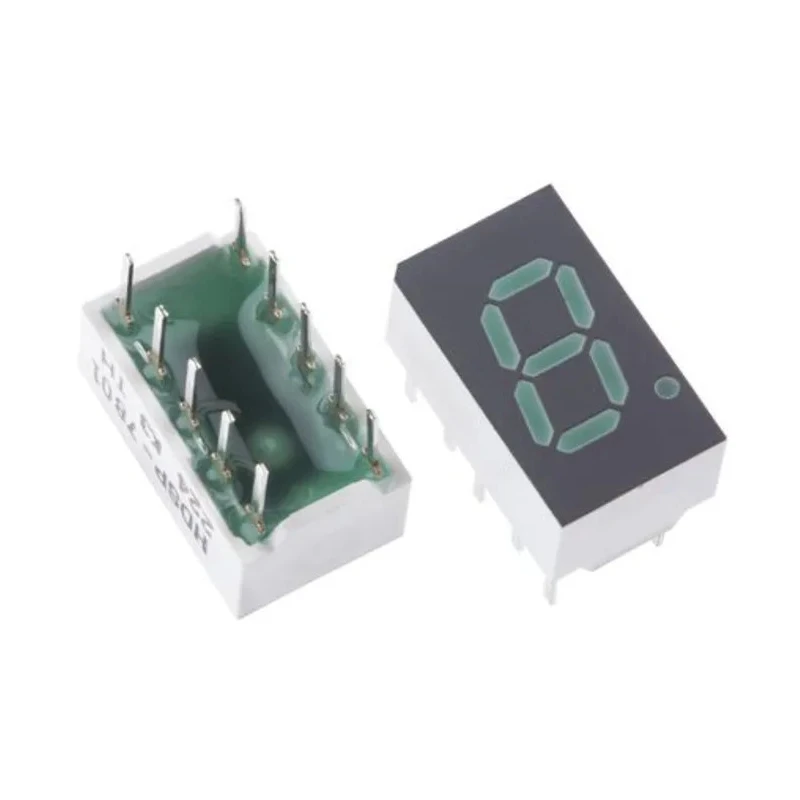

Broadcom 1 7-Segment Green LED Display Anode Surface Mount 7.6 mm HDSP-A901

Broadcom HDSP-A901 is a high-quality single-digit 7-segment LED display designed for industrial and electronic applications requiring clear numeric display capabilities. Featuring a green LED color with a dominant wavelength of 571 nm, it ensures bright, clear digits for effective visual communication. The device uses a common anode connection and is intended for surface mount applications, making it ideal for compact circuit layouts.

With a character height of 7.6 mm and a character width of 4.2 mm, the display size is optimized for readability in various instruments and control panels. The right side decimal orientation provides flexibility in layout design and decimal positioning. The luminous intensity of 475μcd delivers a bright output, visible in a wide range of lighting conditions.

The device operates efficiently with a forward voltage of 1.9V and power dissipation of 64mW, supporting energy-conscious designs. It sustains performance within an operational temperature range from -40°C to 100°C, suitable for harsh environments including industrial and manufacturing settings.

Its grey face color adds contrast to the green illuminated segments, improving visibility. The compact external dimensions - 7.6 mm width, 12.7 mm height, and 6.1 mm depth - allow integration into dense electronic assemblies.

Compliance with RoHS ensures the product meets international environmental standards, making it suitable for global supply chains and environmentally conscious applications. Single-digit 7-segment LED display designed for surface mounting.

Green LED color with a dominant wavelength of 571 nm. Character width of 4.2 mm and height of 7.6 mm for clear visibility. Luminous intensity rated at 475μcd for bright display output. Right side decimal orientation suitable for industrial and electronic applications.

Forward voltage of 1.9V and power dissipation of 64mW ensure energy efficiency. Operating temperature range from -40°C to 100°C for diverse environments. Compliant with RoHS standards for environmental safety.

This product is well suited for use in industrial automation systems, electronic instrumentation, measurement equipment, and other applications requiring reliable, visible numeric displays. Its high efficiency and environmental compliance make it a preferred component in design and manufacturing.
