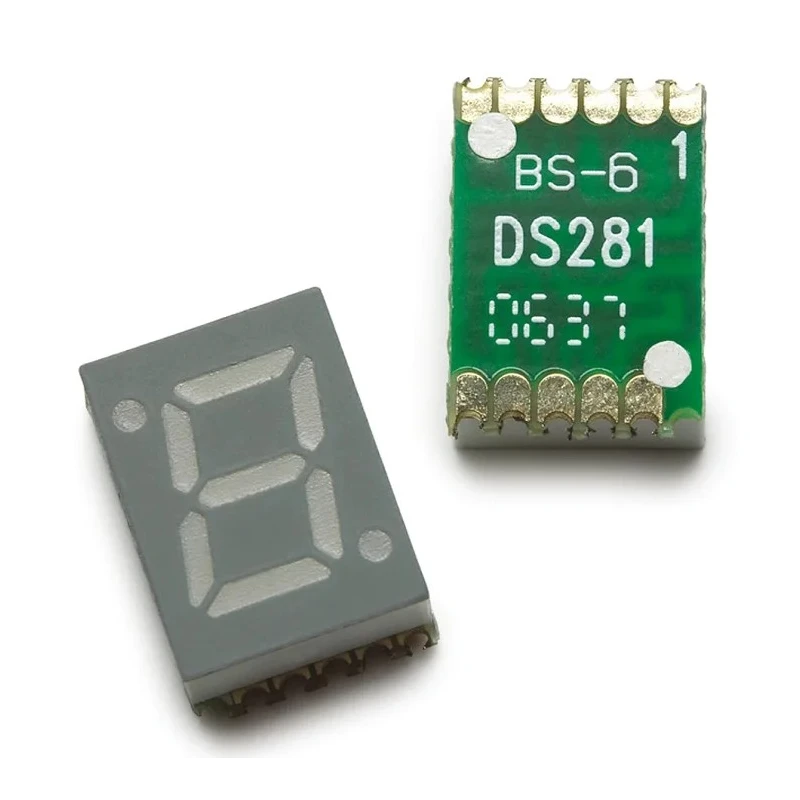

Broadcom 1 7 Segment Red LED Display Cathode Surface Mount 10 mm Character Height HDSM-433C

Broadcom HDSM-433C is a high-quality single-digit 7 segment red LED display featuring a cathode common connection and 10 mm character height, designed for surface mount applications. It offers bright red illumination with a dominant wavelength of 630 nm, making it ideal for various electronic display modules and signage implementations.

The display's grey face ensures contrast for easy readability and includes a right side decimal point orientation suitable for numeric data presentation. Its luminous intensity of 14.3 mcd provides excellent brightness for indoor or industrial use.

Engineered for reliability, the HDSM-433C operates effectively within a wide temperature range of -40°C to 105°C, supporting demanding environmental conditions found in industrial, manufacturing, and laboratory equipment.

Power characteristics include a forward voltage of 2 volts and a forward current rating of 25 milliamps, balancing brightness with energy efficiency. The device dissipates only 65 mW, minimizing thermal impact on assemblies.

The compact size with an external height of 3.8 mm, width of 9.8 mm, and depth of 15 mm makes integration into circuit boards straightforward, suited for applications in instrumentation panels, control systems, and other electronic devices requiring numeric display.

This LED display complies with RoHS standards, ensuring it meets environmental and safety regulations for electronic components. Comprises a single 7-segment red LED digit with cathode common connection. Suitable for use in industrial electronic display modules and control systems.

Robust operating temperature range for diverse application environments. Surface mount type for modern electronic manufacturing processes. Compact dimensions facilitate easy PCB integration. Bright and consistent red display offered by 630 nm wavelength LEDs.
