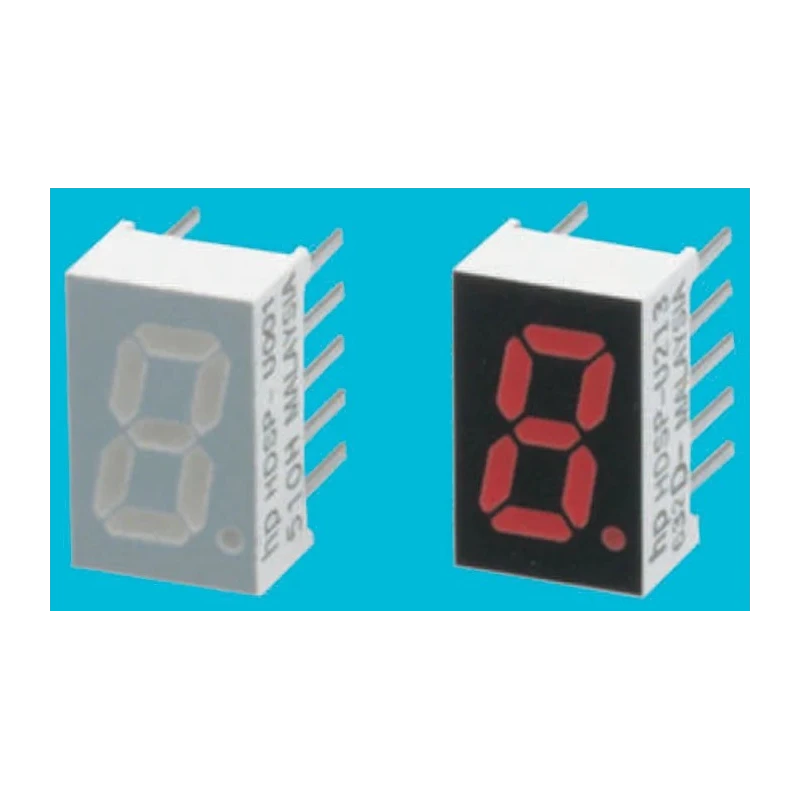

Broadcom 1 Character 7-Segment Red LED Display Cathode Through Hole 8mm HDSP-U203
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-U203 |
| Mount Type | Through Hole |
| Character height | 8mm |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -25°C |
| Number Of Segments | 7 |
| External Width | 7.1mm |
| External Depth | 5mm |
| External Height | 11mm |
| Luminous Intensity | 5.4mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| HDSP-U103 Broadcom 7-Segment LED Display, CC Red 3.6 mcd RH DP 8mmBrand | Broadcom |
Key Features
- This display features a right side decimal orientation for clear numerical indication.
- It has a common cathode connection and is designed for through-hole mounting.
- The LED color is red with a dominant wavelength of 626nm ensuring bright visual output.
- Operating temperature range is from -25°C up to 90°C, suitable for various industrial environments.
- The display has external dimensions of 7.1mm width, 5mm depth, and 11mm height.
- Forward voltage is approximately 2V with a forward current of 30mA for efficient power consumption.
- The face color of the display is grey, providing good contrast for readability.
Product Description
Broadcom HDSP-U203 is a high-quality single-digit 7-segment LED display featuring a cathode common connection. It provides bright red illumination with a luminous intensity of 5.4mcd, making it ideal for electronic display modules in industrial and consumer electronics.
The display character height is 8 mm, and the character width is 4 mm, offering clear and precise numeric visualization. It uses a right side decimal point orientation, enhancing its suitability for numerical output in digital counters, measurement instruments, and control panels.
Its through-hole mount type ensures easy installation on PCBs in a variety of electronic assemblies. The device operates safely across a wide temperature range from -25°C to 90°C, suitable for harsh industrial environments.
The LED operates at a forward voltage of 2V and a forward current of 30mA for reliable and efficient performance. The broad wavelength of 626nm produces a vivid red display, while the grey face color provides excellent contrast.
The package dimensions are compact with 7.1mm width, 5mm depth, and 11mm height, ideal for space-constrained applications. This product complies with RoHS standards, ensuring environmentally safe manufacturing processes.
This Broadcom 7-segment LED display is extensively used in industrial automation, instrumentation, measurement devices, and electronic signage due to its durability and clarity. Choose Broadcom HDSP-U203 LED displays for your industrial and laboratory electronic assemblies to ensure quality and long-lasting performance.
Explore more in the LED Display category at EnvMart for a wide range of compatible electronic components and modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 8 mm, providing clear visibility for numerical output.
This model can operate safely at a maximum temperature of 90°C, making it suitable for various industrial environments.
It features a through-hole mounting type, which allows for easy installation on printed circuit boards (PCBs).
The forward voltage is approximately 2V, and the forward current is 30mA, ensuring efficient power consumption.
The luminous intensity of this display is 5.4 mcd, providing bright red illumination for clear visibility.
The external dimensions are 7.1 mm in width, 5 mm in depth, and 11 mm in height, making it compact for various applications.
The LED color is red, with a dominant wavelength of 626 nm, ensuring bright visual output.
The face color of the display is grey, which provides good contrast for readability.
Yes, this product complies with RoHS standards, ensuring environmentally safe manufacturing processes.
It features a common cathode connection, which is standard for many electronic displays.
This model has a right side decimal orientation, enhancing its suitability for numerical output.
This display is extensively used in industrial automation, instrumentation, measurement devices, and electronic signage.
