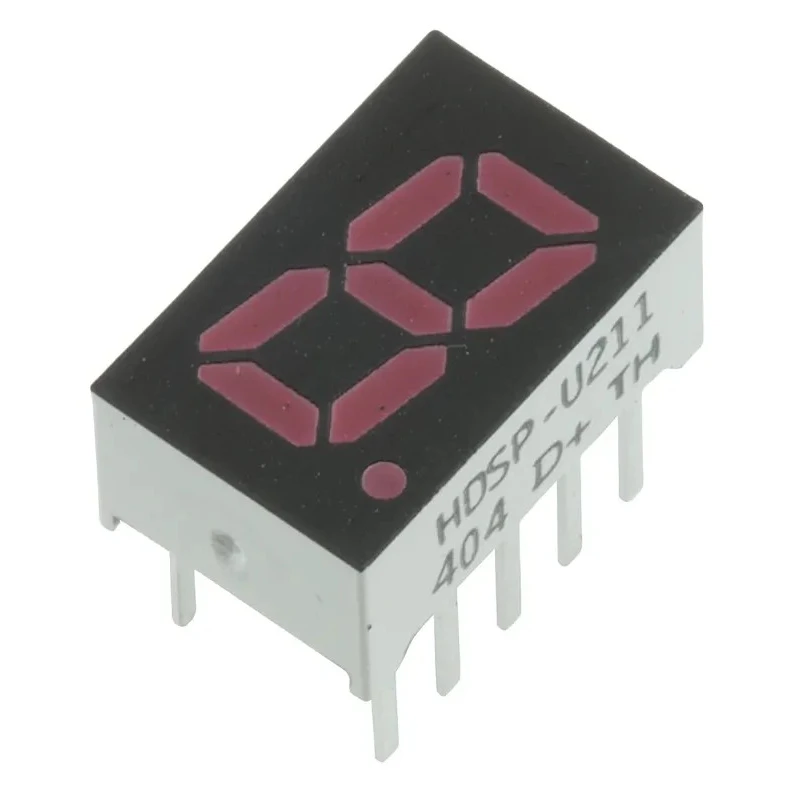

Broadcom 1 Digit 7 Segment Red LED Display Anode 8mm Character Height HDSP-U211

Broadcom HDSP-U211 1 Digit 7 Segment Red LED Display features a through-hole mounting design with an anode common connection. This display is designed to provide clear numeric indication via seven distinct segments and is commonly used in industrial, laboratory, and electronic component applications for numeric readouts.

The character height is 8mm with character width of 4mm, making it suitable for compact digital display panels. The LED color uses a dominant wavelength of 626nm producing a bright red glow with a luminous intensity of 5.4mcd, ensuring high visibility in various lighting conditions. The face color is black, providing contrast for easy reading of digits.

This display can operate reliably in temperatures ranging from -25°C to 90°C, making it applicable in harsh industrial environments. The forward voltage is 2V and forward current is rated at 30mA, typical for 7-segment displays of this type. The decimal point is positioned on the right side, offering flexibility for precise numerical displays.

Physical dimensions include an external width of 7.1mm, height of 11mm, and a depth of 5mm, allowing integration in compact spaces. The display is RoHS compliant, adhering to environmental standards.

This single-digit 7-segment red LED display provides highly visible numeric indication. Suitable for electronic and industrial display modules with through-hole mounting. Operates across wide temperature range from -25°C to 90°C and complies with RoHS standards.

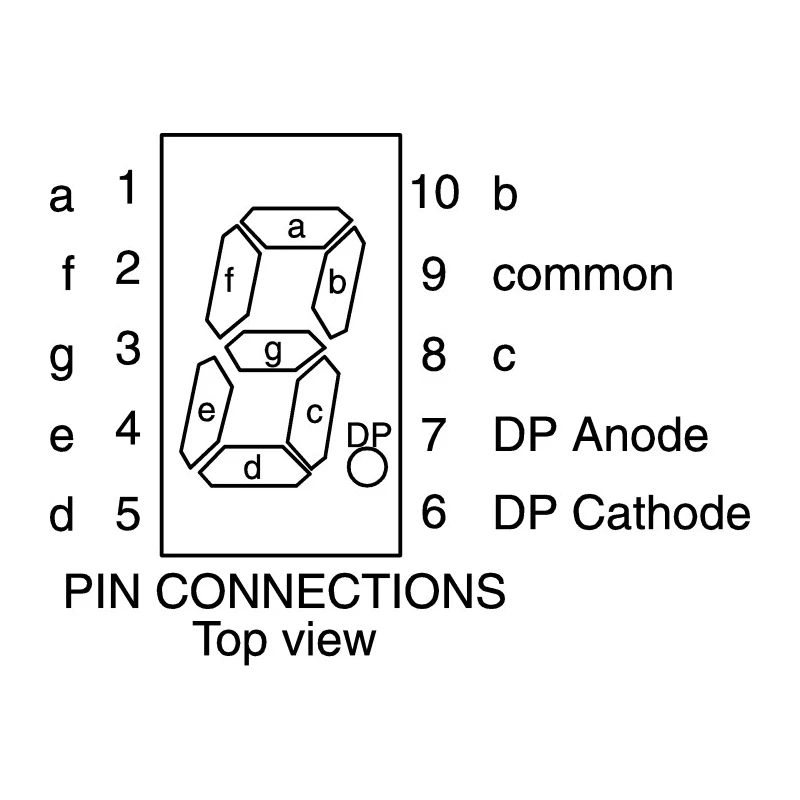

Anode common connection and right side decimal point orientation for flexible use. Compact external size and luminous intensity of 5.4mcd meet demanding display requirements.

This HDSP-U211 model from Broadcom is ideal for use in industrial automation, instrumentation panels, digital counters, and electronic equipment where clear and reliable numeric display is required. Explore more LED Display modules and components in EnvMart’s Electronics Components category.
