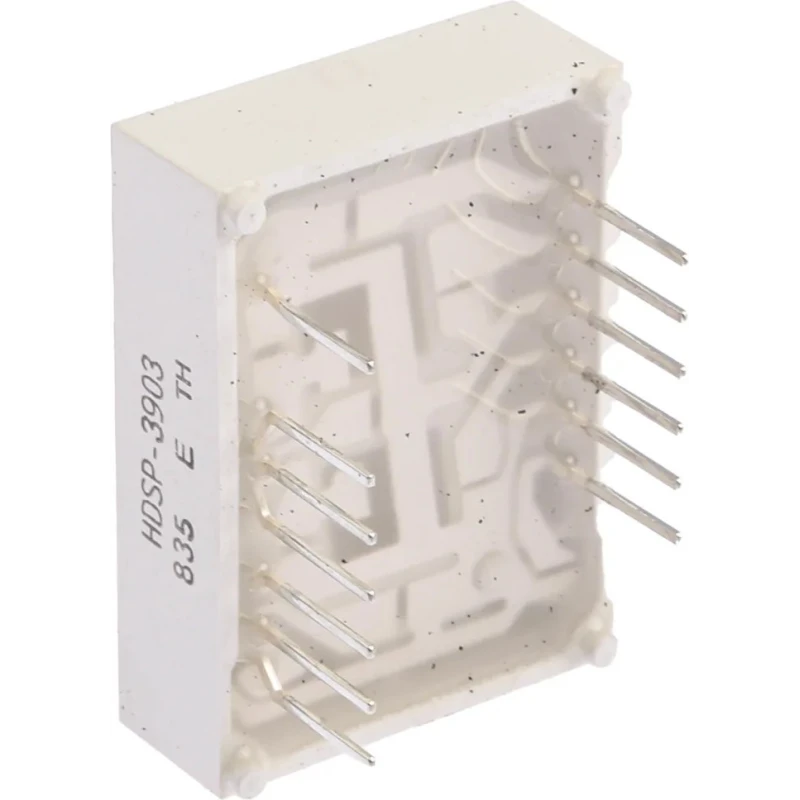

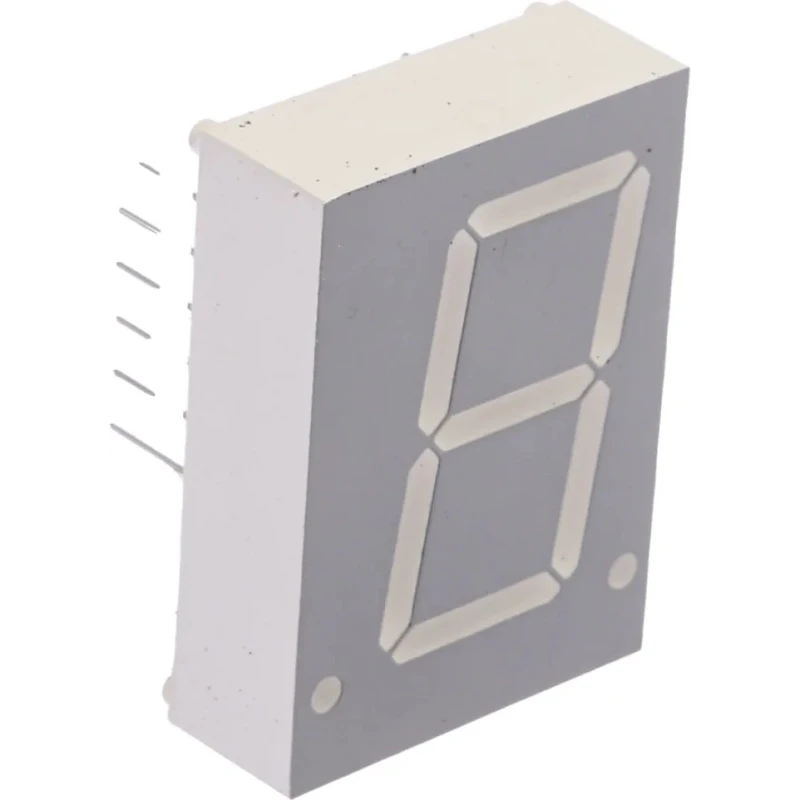

Broadcom 1 Digit 7 Segment LED Display Cathode Red 7mcd Right Side Decimal, 20.3mm Character Height HDSP-3903
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-3903 |
| Mount Type | Through Hole |
| Character height | 20.3mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 20mm |
| External Depth | 8.4mm |
| External Height | 27.7mm |
| Luminous Intensity | 7mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 2.6V |
| Forward Current | 135mA |
| Number of Characters | 1 |
| Character Width | 11.1mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| HDSP-N153 Broadcom 7-Segment LED Display, CC Red 14 mcd RH DP 20.3mmBrand | Broadcom |
Key Features
- The display has a right side decimal point orientation for precise numeric indication.
- It operates within a forward voltage of 2.6V and forward current of 135mA.
- Character dimensions are 11.1mm width and 20.3mm height for clear readability.
- Durable grey face color with operating temperature range from -40°C to 100°C.
- High reliability with RoHS compliance ensures environmental safety.
- External dimensions include 20mm width, 27.7mm height, and 8.4mm depth.
- Designed for industrial, electronic components, and display module applications.
Product Description
Broadcom HDSP-3903 is a high-quality single-digit 7 segment red LED display designed for precision numeric display applications. Featuring a bright 7mcd luminous intensity and a character height of 20.3mm, it provides excellent visibility and clear representation of digits. The right side decimal point orientation allows for versatile display configurations.
This cathode common display operates at a low forward voltage of 2.6V with a forward current of 135mA, making it energy-efficient for a wide range of electronic and industrial equipment. Its robust grey face and through-hole mount design ensure durability and stable installation in various devices.
The display measures 20mm in width, 27.7mm in height, and 8.4mm in depth, fitting compactly into display modules. It is built to withstand harsh environments with an operating temperature range from -40°C to 100°C, suitable for industrial, laboratory, and commercial electronics applications.
Compliant with RoHS standards, the HDSP-3903 ensures safe and environmentally friendly usage. Ideal for electronic displays, counters, and instrumentation, it supports clear numerical output for diagnostic and monitoring systems.
The display includes a single character with 7 LED segments for numeric visualization. Right side decimal point orientation supports flexible numeric formatting. Through-hole mounting facilitates secure mechanical and electrical connections.
Character width of 11.1mm contributes to readability in various lighting conditions. Operating temperature range ensures reliability in extreme conditions. Suitable for electronics, industrial machinery, measurement instruments, and display boards.
Discover more LED Display options and industrial electronic components in the Electronics & Electricals category on EnvMart for professional applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this display is 7mcd, providing bright visibility for numeric indications.
The character height of this model is 20.3mm, ensuring clear readability in various applications.
It operates at a forward voltage of 2.6V and a forward current of 135mA, making it energy-efficient for electronic applications.
The external dimensions are 20mm in width, 27.7mm in height, and 8.4mm in depth.
The operating temperature range for the HDSP-3903 is from -40°C to 100°C, suitable for harsh environments.
This model uses a through-hole mounting type, facilitating secure mechanical and electrical connections.
The LED color is red, and the face of the display is grey, providing a contrasting appearance for visibility.
This display features 7 segments for numeric visualization, allowing for clear representation of digits.
Yes, the HDSP-3903 is compliant with RoHS standards, ensuring safe and environmentally friendly usage.
The common connection type for the HDSP-3903 is cathode, which is typical for this kind of LED display.
It is suitable for various applications including electronic displays, counters, instrumentation, and industrial machinery.
The character width of this model is 11.1mm, contributing to its readability in different lighting conditions.
