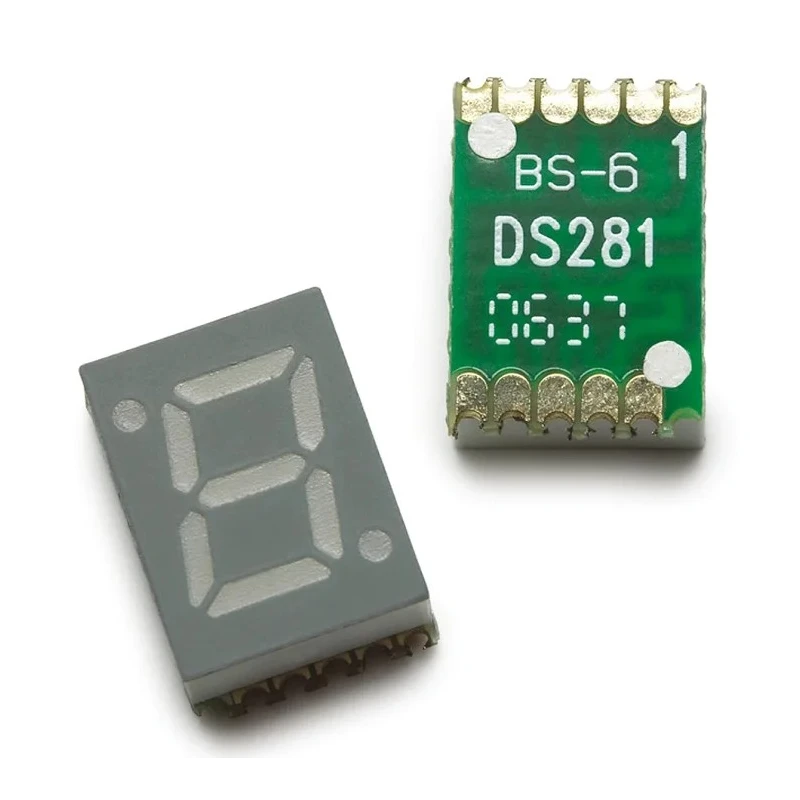

Broadcom 1 7 Segment Red LED Display Cathode Surface Mount 7.5mcd, 7mm Height HDSM-283C

Broadcom HDSM-283C is a high-quality single-digit, 7 segment red LED display suitable for a range of industrial and electronic applications requiring clear numeric indication. It features a cathode common connection and supports surface mounting, making it compatible with modern PCB assembly techniques.

This display offers a character height of 7 mm and a width of 4.6 mm, providing excellent visibility in compact electronic devices. The luminous intensity of 7.5mcd, combined with a dominant wavelength of 632 nm, ensures vivid red illumination that improves readability under various lighting conditions.

Operating at a forward voltage of 2V and a forward current of 25mA, the HDSM-283C is optimized for low power consumption while maintaining brightness and longevity. The decimal point orientation on the right side adds flexibility for numeric displays requiring decimal precision.

Designed to operate in harsh environments, this LED display supports a wide operating temperature range from -40°C to 105°C, suitable for industrial, laboratory, manufacturing, and HVAC applications. The display has a sturdy grey face color and is RoHS compliant, ensuring it meets environmental and safety standards.

The compact external dimensions of 7.5 mm width, 3.8 mm height, and 10.8 mm depth allow it to fit in tight spaces without compromising functionality. Its surface mount design facilitates efficient automated production line integration, ideal for mass manufacture of electronic instruments and devices.

The LED display features a character height of 7 mm and width of 4.6 mm. It operates at a forward voltage of 2V with a forward current of 25mA. The display provides a luminous intensity of 7.5mcd with a dominant wavelength of 632 nm.

The unit supports a decimal point oriented on the right side for enhanced readability. Designed for robust use with operating temperatures ranging from -40°C to 105°C. Power dissipation is low at 65mW, optimizing energy efficiency.

The external dimensions are compact: 7.5 mm width, 3.8 mm height, and 10.8 mm depth.

With the Broadcom HDSM-283C, industries can achieve reliable numerical display solutions with efficient power usage and high visibility. Suitable for LED display modules in varied electronic components, it is a trusted choice for professionals seeking durability and performance.
