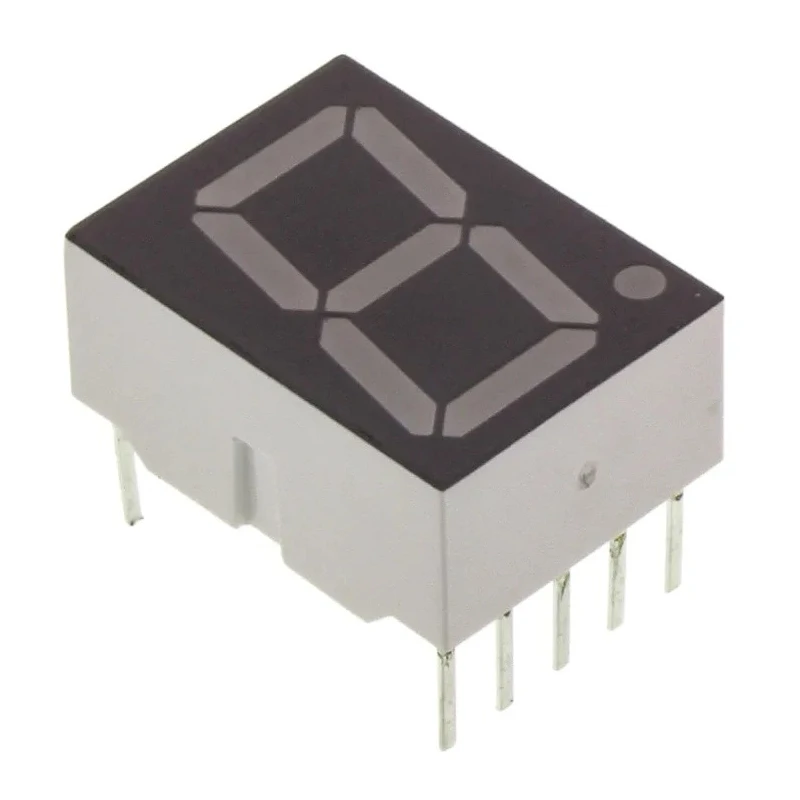

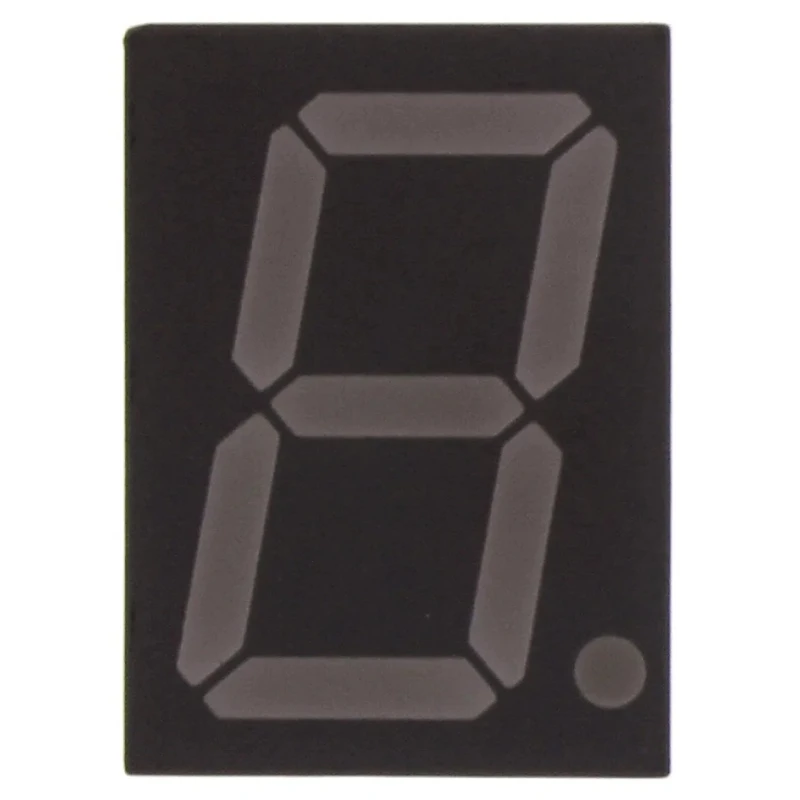

Broadcom 1 Digit 7 Segment Red LED Display Anode Through Hole 20.3mm Height HDSP-3901

Broadcom HDSP-3901 is a high-quality single-digit 7 segment LED display, featuring a red LED array with an anode common connection and through hole mounting. It offers a character height of 20.3 mm and a luminous intensity of 7 millicandelas, suitable for various electronic display applications where clear and bright numerical data is required.

Its right side decimal orientation accommodates precise numerical presentations in electronic devices. Designed to operate reliably across a wide temperature range from -40°C to 100°C, this component is ideal for industrial, laboratory, and commercial electronics projects requiring durable and consistent display performance.

The forward voltage of 2.6V and 135 mA forward current ensures compatibility with standard driving circuits. Its grey face and compact external dimensions (20 mm width, 27.7 mm height, and 8.4 mm depth) enable flexible integration into display modules and systems.

This LED display complies with RoHS standards for environmental safety and quality assurance. It is commonly used in multi-function electronic control panels, measurement instruments, and embedded systems to visually convey numerical data effectively.

The character height measures 20.3 mm for clear visibility. The luminous intensity is 7 millicandelas for bright red display output. The display has a right side decimal orientation with 7 segments. Operating temperature range is from -40°C to 100°C for robust industrial use.

Its forward voltage is 2.6 volts and forward current rating of 135 mA. The device features a grey face with a character width of 11.1 mm. External dimensions measure approximately 20 mm width, 27.7 mm height, and 8.4 mm depth.

Designed to comply with RoHS standards, ensuring environmental compliance. Explore the wide range of Broadcom LED Displays on EnvMart for reliable and precise electronic visual applications.
