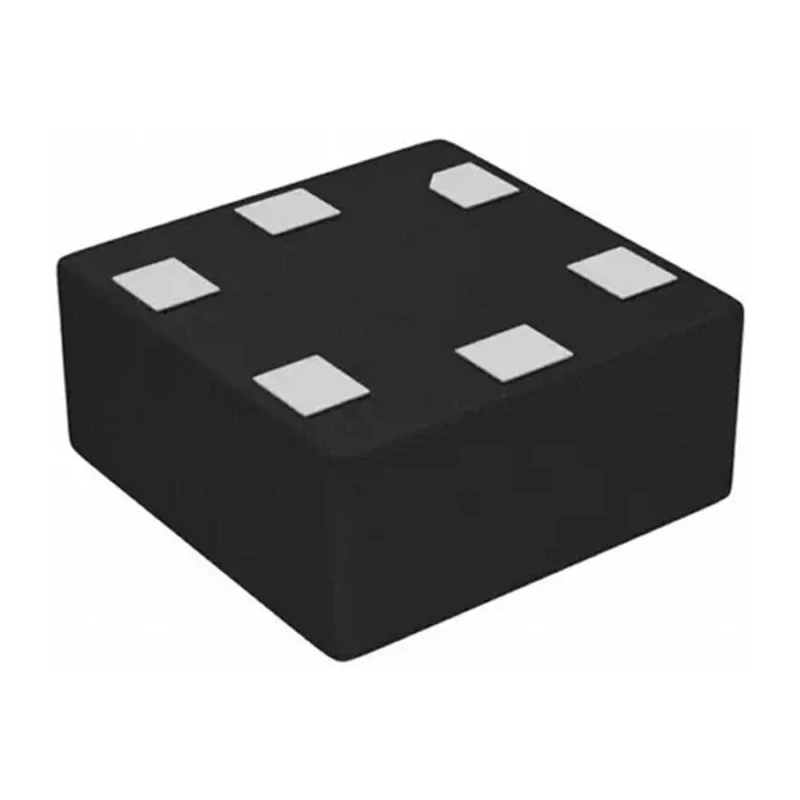

STMicroelectronics Digital Output Temperature & Humidity Sensor, Surface Mount, ±0.5°C (±3.5 %), 1.7V-3.6V, HLGA EMC1843T
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5°C (±3.5 %) |
| Temperature Accuracy | ± 0.5 °C 15 to +40 °C |
| Humidity accuracy | ± 3.5% rH, 20 to +80% rH |
| Brand | STMicroelectronics |
| Height | 900μm |
| Length | 2mm |
| Model | EMC1843T |
| RH Range | 0 to 100 % |
| Width | 2mm |
| Mount Type | Surface |
| Output type | Digital |
| Series | EMC1843T |
| Maximum Operating Temperature | 120°C |
| Package Type | HLGA |
| Sub Type | Temperature & Humidity Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.7V |
| High rH sensitivity | 0.004% rH/LSB |
Key Features
- Supports digital output for humidity and temperature measurements.
- Compact HLGA package with dimensions 2 mm x 2 mm x 0.9 mm.
- Wide humidity range from 0 to 100% relative humidity.
- High accuracy with ±0.5 °C temperature and ±3.5% rH humidity within defined ranges.
- Operates over a broad temperature range from -40°C to 120°C.
- Low power consumption at 2 μA with selectable output data rates between 1 Hz and 12.5 Hz.
- Interfaces supported include SPI and I²C protocols.
- Supply voltage range from 1.7 V to 3.6 V ensuring compatibility with various systems.
Product Description
STMicroelectronics EMC1843T is a high-precision digital output temperature and humidity sensor designed for surface mount applications. With a tiny HLGA package measuring just 2 mm in length and width and 0.9 mm in height, it integrates a polymer dielectric planar capacitor sensing element and mixed signal ASIC, providing accurate measurements over SPI and I²C digital interfaces.
Operating reliably over a wide temperature range from -40°C to 120°C and a relative humidity range of 0 to 100%, the sensor delivers ±0.5°C temperature accuracy (between 15°C and 40°C) and ±3.5% relative humidity accuracy (20% to 80% rH). Its low power consumption of 2 μA at 1 Hz output data rate makes it suitable for battery operated and low power systems.
The EMC1843T supports selectable output data rates from 1 Hz to 12.5 Hz, optimizing performance based on system requirements. The sensor accepts supply voltages between 1.7 V and 3.6 V, enhancing compatibility with varied embedded and IoT designs.
Typical applications include heating, ventilation and air conditioning systems, wearable health and fitness devices, smart home products, industrial automation equipment, respiratory instruments, and asset tracking solutions. The sensor comes factory pre-calibrated to enable immediate deployment without additional calibration steps.
Digital output via SPI and I²C interfaces ensures ease of integration. Compact HLGA package reduces board space and supports surface mount technology. High resolution 16-bit data output for both humidity and temperature.
Robust operating temperature and humidity ranges cover a wide variety of environments. Low current consumption supports energy efficient designs. High sensitivity enables precise environmental monitoring. Compliance with RoHS assures adherence to environmental regulations.
The EMC1843T embodies a reliable and efficient sensing solution for multiple industrial, commercial, and consumer applications demanding precise humidity and temperature measurement. Explore the full range of STMicroelectronics sensor ICs and enhance your design with leading-edge technology at EnvMart.
