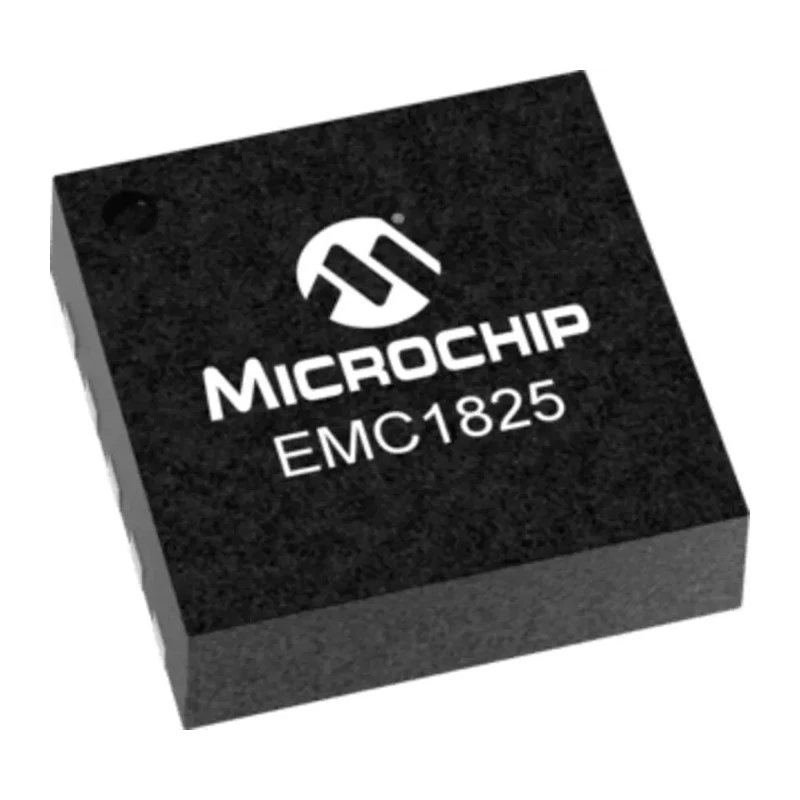

Microchip Digital and Analogue Output Temperature & Humidity Sensor, Surface Mount, I2C, 2 Wire, SMBus, EMC1825T

Free Delivery in India | Lowest Global Shipping Charges

Microchip Digital and Analogue Output Temperature & Humidity Sensor, Surface Mount, I2C, 2 Wire, SMBus, EMC1825T

Name: Microchip Digital and Analogue Output Temperature & Humidity Sensor, Surface Mount, I2C, 2 Wire, SMBus, EMC1825T
Brand: Microchip
SKU: 157668
Price: 1.75 USD
Availability: InStock



Category Temperature & Humidity Sensor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	2mm
Length	2.5mm
Model	EMC1825T
Width	850μm
Mount Type	Surface
Output type	Digital, Analogue
Series	EMC1825T
Maximum Operating Temperature	125°C
Package Type	VDFN
Sub Type	Temperature Sensor
Minimum Operating Temperature	-40°C
Interface Type	I2C, 2 Wire, SMBus
Pin Count	10
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.62V

Key Features

The sensor operates over a voltage range of 1.62V to 3.6V to provide flexibility in power design.
Features a 10-lead Very Thin Plastic Dual Flat No Lead (VDFN) package with compact dimensions of 2.5mm length, 2mm height, and 850μm width.
Includes Rate of Change (ROC), Resistance Error Correction (REC), and Beta Compensation for precise temperature measurement.
Supports surface mount technology with an I2C compatible 2-wire interface, including SMBus compatibility for easy integration.
Operates reliably across an extended temperature range from -40°C to +125°C for harsh industrial environments.
Equipped with configurable alert pins and auto-beta compensation for enhanced system protection.
Designed for complex environmental monitoring in industrial, manufacturing, HVAC, and laboratory applications.

Product Description

Microchip EMC1825T is a digital and analogue output temperature and humidity sensor designed for surface mount applications. It provides high accuracy and robust environmental sensing with advanced features such as Rate of Change, Resistance Error Correction, and Beta Compensation. The sensor operates from 1.62V to 3.6V, allowing flexible integration into various industrial and commercial systems.

Featuring a compact 10-lead Very Thin Plastic Dual Flat No Lead (VDFN) package with dimensions 2.5mm length by 2mm height and 850μm width, the EMC1825T is well suited to space-constrained PCB layouts. It supports a 2-wire I2C compatible interface including SMBus, facilitating communication with digital systems and CPUs.

The device functions reliably over an extended temperature range from -40°C to +125°C, making it ideal for harsh industrial environments requiring precise temperature and humidity measurements. Its built-in configurable alert pins and auto-beta compensation provide pre-emptive system alerts and protection layers for critical system temperature management.

This sensor is applicable in industrial automation, manufacturing process control, HVAC regulation, environmental monitoring, and laboratory instrumentation where accurate temperature and humidity sensing is vital.

The sensor operates over a voltage range of 1.62V to 3.6V. 10-lead VDFN package measuring 2.5 x 2.0 mm provides compactness. High accuracy with internal/external temperature resolution of 0.125°C. Supports I2C/SMBus 2-wire communication interface.

Wide operating temperature range of -40°C to +125°C. Includes advanced features like ROC, REC, and Beta Compensation for enhanced sensing. Configurable alert pins for system monitoring and protection.

Microchip products are well known for reliability and performance in sensor IC applications. Browse the full Microchip sensor range at EnvMart for compatible and complementary components.
