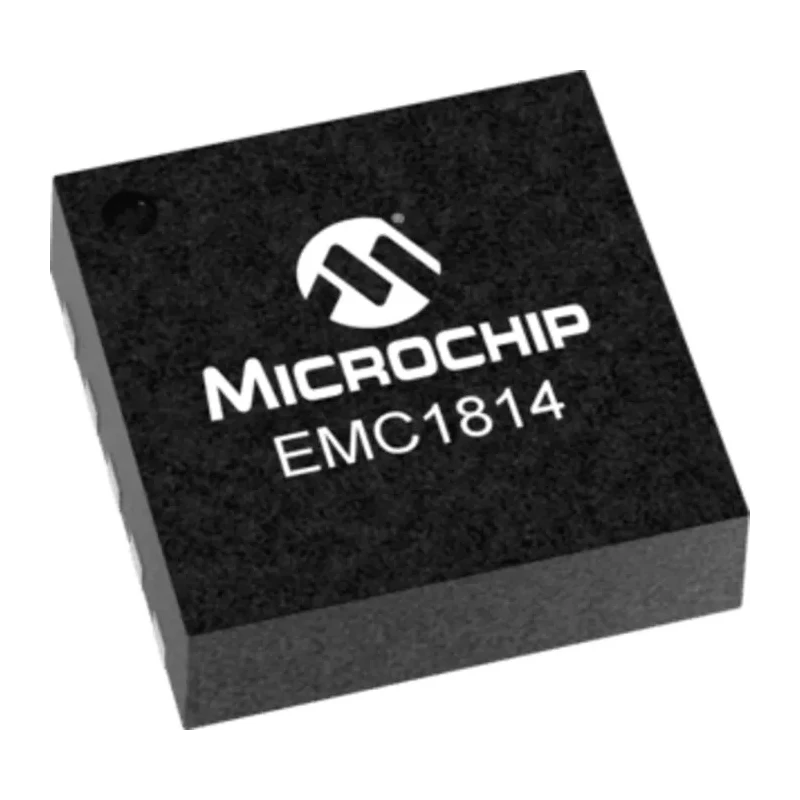

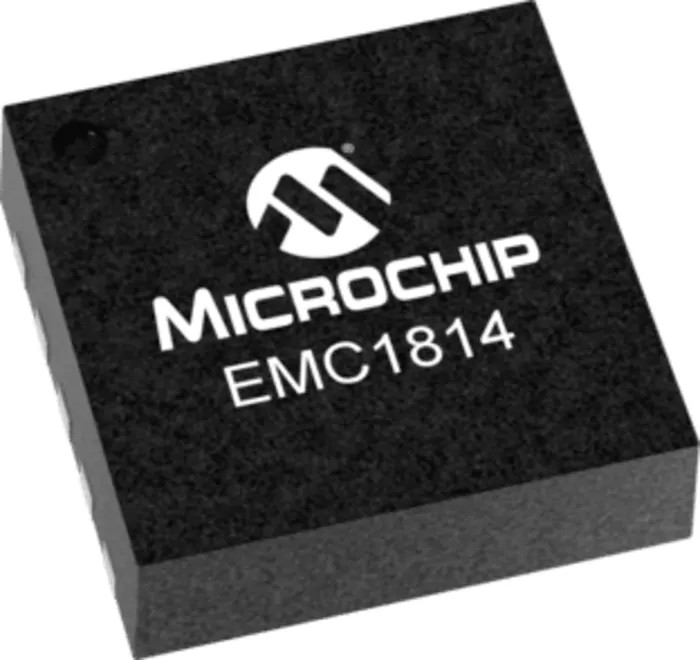

Microchip Temperature & Humidity Sensor Series with Analogue and Digital Output, Surface Mount, SMBus, 2 Wire I2C EMC1814T

Free Delivery in India | Lowest Global Shipping Charges

Microchip Temperature & Humidity Sensor Series with Analogue and Digital Output, Surface Mount, SMBus, 2 Wire I2C EMC1814T

Name: Microchip Temperature & Humidity Sensor Series with Analogue and Digital Output, Surface Mount, SMBus, 2 Wire I2C EMC1814T
Brand: Microchip
SKU: 157665
Price: 1.44 USD
Availability: InStock



Category Temperature & Humidity Sensor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	2mm
Length	2.5mm
Model	EMC1814T
Width	850μm
Mount Type	Surface
Output type	Analogue, Digital
Series	EMC1814T
Maximum Operating Temperature	125°C
Package Type	VDFN
Sub Type	Temperature Sensor
Minimum Operating Temperature	-40°C
Interface Type	SMBus, 2 Wire, I2C
Pin Count	10
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.62V

Key Features

Operates over supply voltage range from 1.62V to 3.6V.
Extends operating temperature range from -40°C to 125°C for robust environmental monitoring.
High accuracy temperature sensor with 0.125°C resolution.
Compact 10-lead Very Thin Plastic Dual Flat No Lead (VDFN) package of 2.5 x 2.0 mm size.
Features Rate of Change, Resistance Error Correction, and Auto-Beta Compensation for enhanced performance.
Supports pre-emptive system alerts and protective measurement layers.
Suitable for complex environmental monitoring in industrial and commercial electronics.
Surface mount type ensures easy PCB assembly in compact devices.

Product Description

Microchip EMC1814T Series Temperature & Humidity Sensor offers a dual analogue and digital output designed for precise environmental sensing applications. Featuring a surface mount configuration and SMBus 2 Wire I2C interface, the sensor integrates seamlessly into modern PCB layouts.

The device operates reliably over a wide voltage range between 1.62V and 3.6V, with an extended temperature range from -40°C to 125°C, making it suitable for harsh industrial, laboratory, HVAC, and manufacturing environments. The sensor provides a high-resolution temperature reading with 0.125°C accuracy internally and externally, supporting critical applications requiring precise data.

Key innovations include Rate of Change detection, Resistance Error Correction, and Auto-Beta Compensation, which help counteract complex environmental factors and provide robust and stable sensor measurements.

The EMC1814T comes in a compact 10-lead Very Thin Plastic Dual Flat No Lead (VDFN) package, measuring 2.5 mm in length, 2.0 mm in height, and 850 μm in width, fitting neatly into space-constrained electronic assemblies.

Operates on 1.62V to 3.6V supply voltage. Temperature range: -40°C to +125°C. High accuracy temperature sensor resolution of 0.125°C. Surface mount VDFN package sized 2.5 x 2 x 0.85 mm. SMBus, 2 Wire, and I2C communication interfaces.

Features advanced compensation techniques for accurate sensing. Configurable alert outputs for system monitoring.

This temperature and humidity sensor IC is ideal for precision industrial monitoring, HVAC controls, environmental measurement, and other semiconductor sensor applications requiring reliable temperature data and environmental status. Its small form factor and comprehensive features make it a favored component in modern electronics design.
