MENNEKES Socket Switchable Industrial Interlock IP66 IP67 2+E Earthing Position 6h Right Angle 16A 250V 505.1683

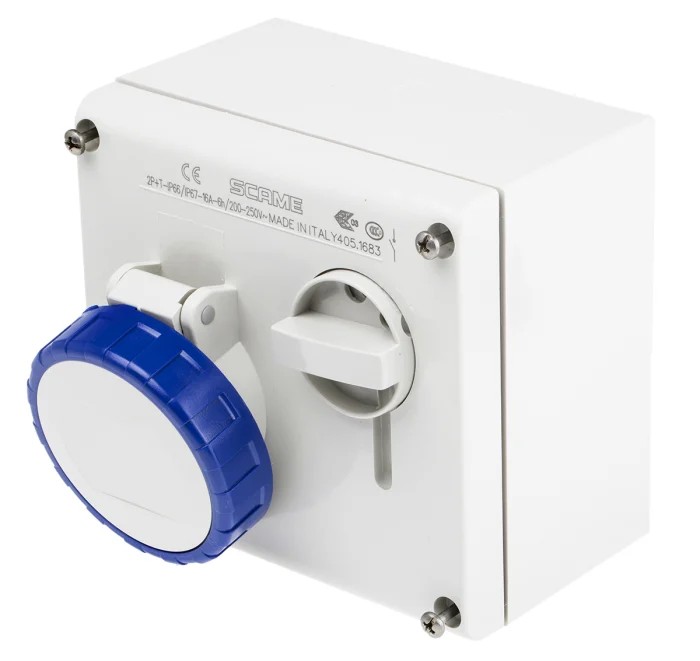

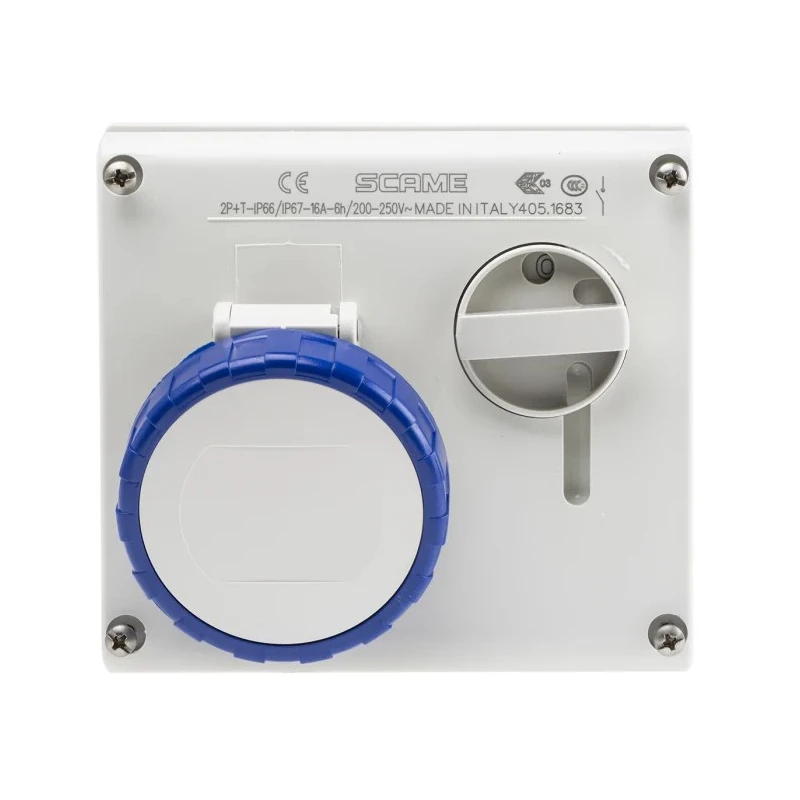

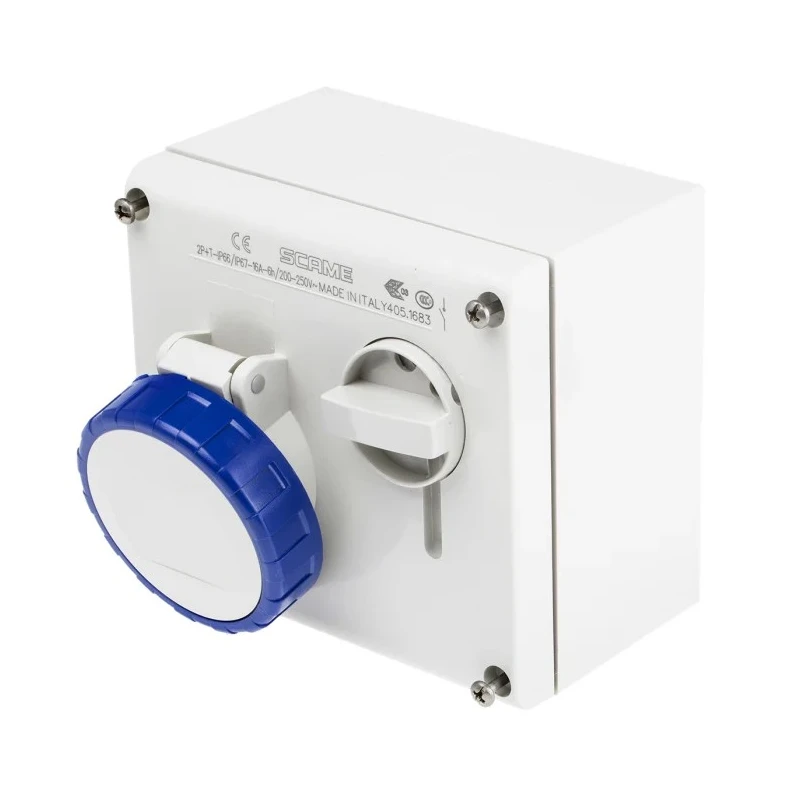

Scame 505.1683 Socket Switchable Industrial Interlock offers an IP66 and IP67 rated durable solution for industrial power connection needs with a 16A current rating and 250V voltage capacity. This socket is switchable and designed with safety features such as mechanical interlocks to prevent unsafe operation.

Constructed from high-quality polymer, it withstands abnormal heat up to 650 °C and is resistant to chemicals including water, saline solutions, acids, bases, and mineral oils. The socket also features a non-aging elastomer seal and stainless steel quick-turn locking screws, enhancing its reliability and durability under harsh conditions.

Dimensionally stable within a wide temperature range from -25 °C to +60 °C, it offers impact resistance of 6 Joule, ensuring robustness against mechanical shocks. Its IP67 rating certifies it as both waterproof and dustproof, suitable for demanding industrial and commercial environments requiring secure power connections.

The right-angle orientation and earthing position at 6h provide practical installation flexibility. This industrial interlock socket is part of the 505 series by Scame, manufactured in Italy, recognized for stringent quality testing and compliance with rigorous industry demands.

Designed for applications in industries, laboratories, construction, HVAC, manufacturing, and commercial settings, it features safety mechanisms that prevent switch closure unless the plug is properly inserted, disallow plug removal if the switch is closed, and stop opening the socket cover when the switch is engaged.

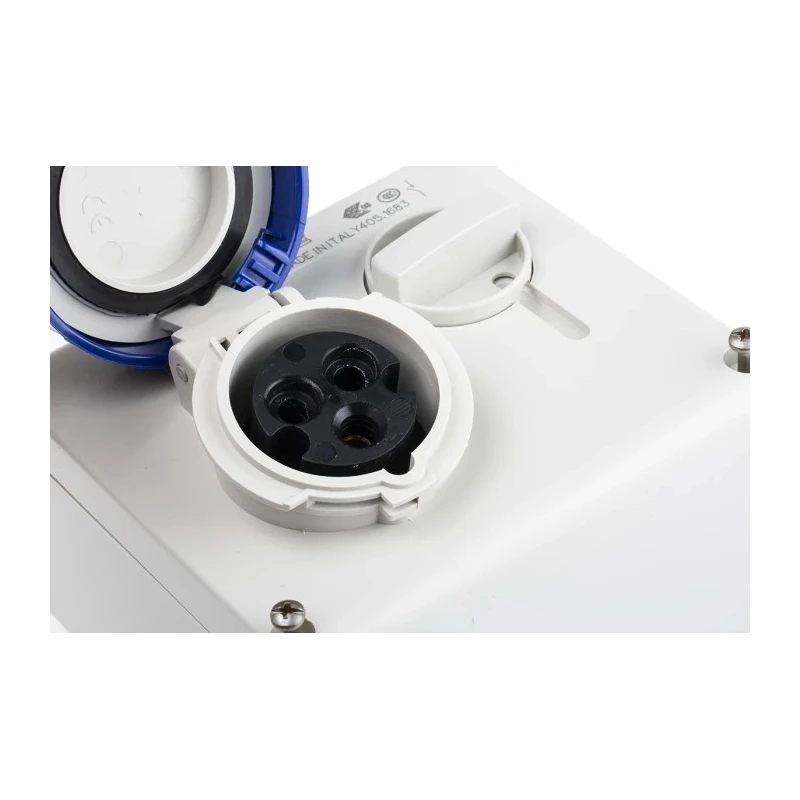

The socket features a 2+E pole format with a switchable mechanism for enhanced safety. Rated for 16A current and 250V voltage, suitable for demanding electrical environments. Constructed from polymer material providing resistance to heat, chemicals, and weathering.

Designed with an earthing position of 6h and right-angle orientation for easy installation. Includes mechanical interlock preventing switch closure without plug insertion and plug extraction when switch is closed. Provides protection up to IP67 rating ensuring waterproof and dustproof performance.

Impact resistance rated at 6 Joule, offering robust durability against mechanical shocks. Dimensions are 136mm length, 125mm width, and 202mm depth, suitable for surface mounting. Manufactured in Italy to ensure high-quality standards and reliability.
