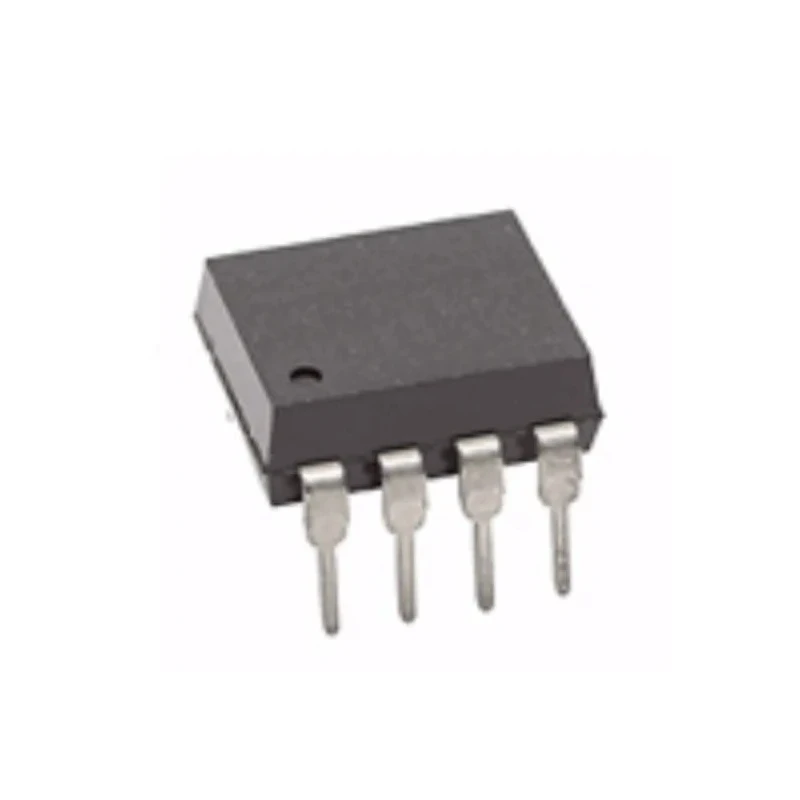

Broadcom HCNR201-500E High Linearity 2-Channel Analog Optocoupler, Surface Mount, DIP-8, 1.95V 25mA DC Input
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCNR201-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HCNR201 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, CSA, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.95V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 0.72% |
| Minimum Current Transfer Ratio | 0.36% |
| Isolation Voltage | 5kV |
| Telecom | modem, PBX |
| Low Nonlinearity | 0.01 % |
Key Features
- Features a dual-channel configuration in an 8-pin DIP package for efficient analog signal isolation.
- Operates at a maximum forward voltage of 1.95V and supports a maximum input current of 25mA DC.
- Delivers an isolation voltage of 5kV for enhanced safety in industrial and electronic applications.
- Wide current transfer ratio range of 0.36% to 0.72% ensures stable analog signal transmission.
- Low nonlinearity (0.01%) and low gain temperature coefficient (65ppm/°C) provide reliable performance.
- Suitable for use in process control, SMPS feedback, telecom, and analog signal monitoring.
- Surface mount packaging allows flexible placement in compact electronic designs.
- Operates across a wide temperature range from -55°C to 100°C for industrial environments.
Product Description
The Broadcom HCNR201-500E is a high linearity, dual-channel analog optocoupler engineered for applications requiring precise analog signal isolation. Utilizing a high-efficiency AlGaAs LED and two closely matched photodiodes, this optocoupler maintains superior linearity and minimal signal drift, making it ideal for demanding industrial and instrumentation environments.
Its 8-pin DIP package with 0.400 inch spacing integrates easily into a range of analog circuit configurations. The device accommodates a DC input, with a maximum forward voltage of 1.95V and supports input currents up to 25mA. Designed for robust isolation, the HCNR201-500E withstands voltages up to 5kV, ensuring safety and interference-free operation across equipment segments.
Performance stability is assured with a low gain temperature coefficient of 65ppm/°C and an exceptional nonlinearity of just 0.01%. The current transfer ratio can vary between 0.36% and 0.72%, enabling precise analog feedback and control. The component covers a wide operational temperature range from -55°C to 100°C, fit for challenging industrial or process environments.
Typical use cases include process control transducer isolation, isolators for thermocouples, analog signal isolation in SMPS and feedback loops, industrial automation, medical monitoring, and analog isolation in telecommunications systems such as modems and PBXs.
The surface mount tape and reel packaging supports automated assembly and high-density PCBs. With UL, CSA, and IEC/EN/DIN EN 60747-5-5 standards compliance, the device meets international requirements for reliability and safety in optoelectronic signal isolation.
Explore more industrial-grade Optocouplers and advanced signal isolation solutions from Broadcom and category-leading manufacturers in Electronics & Electricals at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 25mA DC.
It has an isolation voltage rating of 5kV, ensuring safety in various applications.
This model operates across a wide temperature range from -55°C to 100°C.
The current transfer ratio for the HCNR201-500E varies between 0.36% and 0.72%.
It is packaged in a tape and reel format, suitable for automated assembly.
The HCNR201-500E features a dual-channel configuration.
It complies with UL, CSA, and IEC/EN/DIN EN 60747-5-5 standards.
This model supports surface mounting, allowing flexible placement in electronic designs.
The HCNR201-500E has a low nonlinearity of just 0.01%.
The maximum forward voltage for the HCNR201-500E is 1.95V.
It is suitable for applications such as process control, SMPS feedback, telecom, and analog signal monitoring.
The package type is DIP with 8 pins and a spacing of 0.400 inches.
