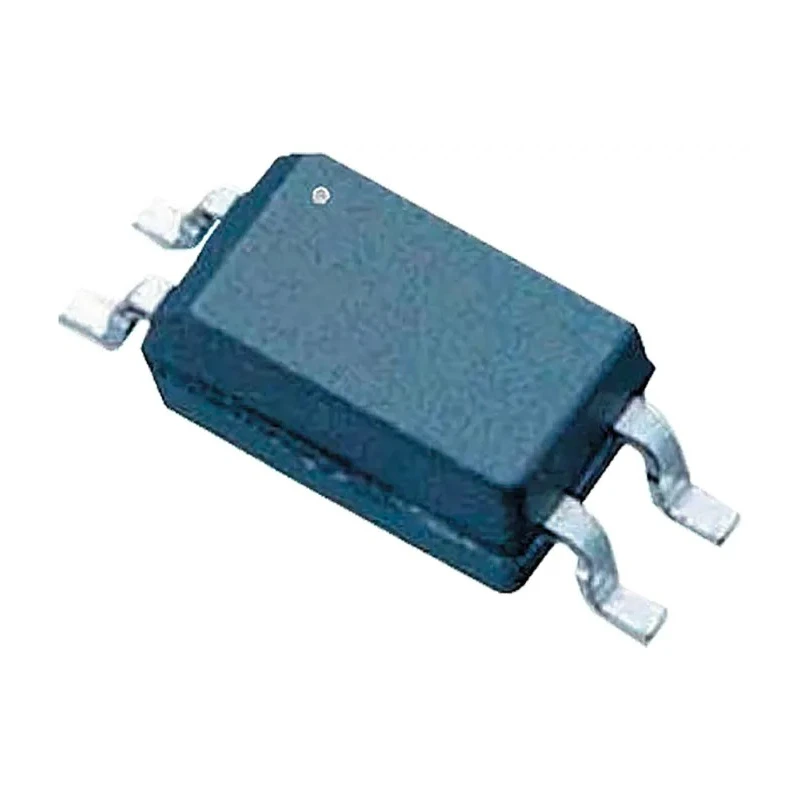

Toshiba Optocoupler Surface Mount 4-Pin SO, Maximum Forward Voltage 1.4V, Isolation Voltage 3750Vrms TLP290(GB-TP,SE(T)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TLP290(GB-TP,SE(T |
| Mount Type | Surface |
| Series | TLP290 |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL, CSA |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Designed for surface mount installation in demanding electronic applications.
- Provides maximum forward voltage of 1.4 V for efficient performance.
- Features high isolation voltage of 3750 Vrms ensuring robust separation of input and output signals.
- Operates within a wide temperature range from -55°C to 110°C.
- Supports a typical rise time of 2 μs and fall time of 3 μs for fast switching response.
- Complies with EN, UL, and CSA standards for assured quality and safety.
- Incorporates AC-input, transistor output with dual inverse parallel connected LEDs, suitable for bipolar input currents.
Product Description
The Toshiba TLP290(GB-TP,SE(T) Optocoupler is engineered for reliable signal isolation in industrial, electronic, and control applications. With a surface mount 4-Pin SO package, this optocoupler is an ideal choice for PCB designs requiring compact footprint and robust performance.
Featuring a maximum forward voltage of 1.4 V, the device ensures efficient operation, while its high isolation voltage of 3750 Vrms provides strong electrical separation between the input and output, critical for protecting sensitive circuits and providing safety in high-voltage environments.
The optocoupler operates within a broad temperature range from -55°C to 110°C, making it suitable for use in environments subject to extreme conditions. With typical rise and fall times of 2 μs and 3 μs respectively, the component supports fast switching operations essential in data communication and signal processing applications.
It incorporates dual inverse parallel connected LEDs for AC input, enabling bipolar input current compatibility. The transistor output further enhances its use in digital and analog circuit isolation, commonly applied in power supplies, industrial control systems, and signal transfer applications.
Toshiba's optocoupler is tested to meet EN, UL, and CSA standards, ensuring global compliance and safety for industrial, laboratory, manufacturing, and commercial uses. Its 1 channel design and 4-pin SO package provide easy integration into electronic assemblies, while the series TLP290 legacy assures compatibility and proven reliability.
This product is manufactured in Japan according to strict quality standards and is suited for environments where automotive standards are not required. It is not designed for automotive use, but excels in general electronics, instrumentation, process control, and equipment safety applications.
Explore more optoelectronic and signal isolation solutions in the Optocoupler category from Toshiba and related brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4V.
It has a high isolation voltage of 3750Vrms, ensuring robust separation of input and output signals.
This optocoupler operates within a wide temperature range from -55°C to 110°C.
The typical rise time is 2 μs and the fall time is 3 μs, supporting fast switching operations.
It features a single channel design, making it suitable for various applications.
The TLP290(GB-TP,SE(T) comes in a surface mount 4-pin SO package.
It complies with EN, UL, and CSA standards for assured quality and safety.
The maximum current transfer ratio is 6%, while the minimum is 100%.
It is suitable for use in power supplies, industrial control systems, and signal transfer applications.
The dual inverse parallel connected LEDs enable compatibility with bipolar input currents, enhancing its versatility.
This product is manufactured in Japan according to strict quality standards.
No, it is not designed for automotive use but excels in general electronics and instrumentation applications.
