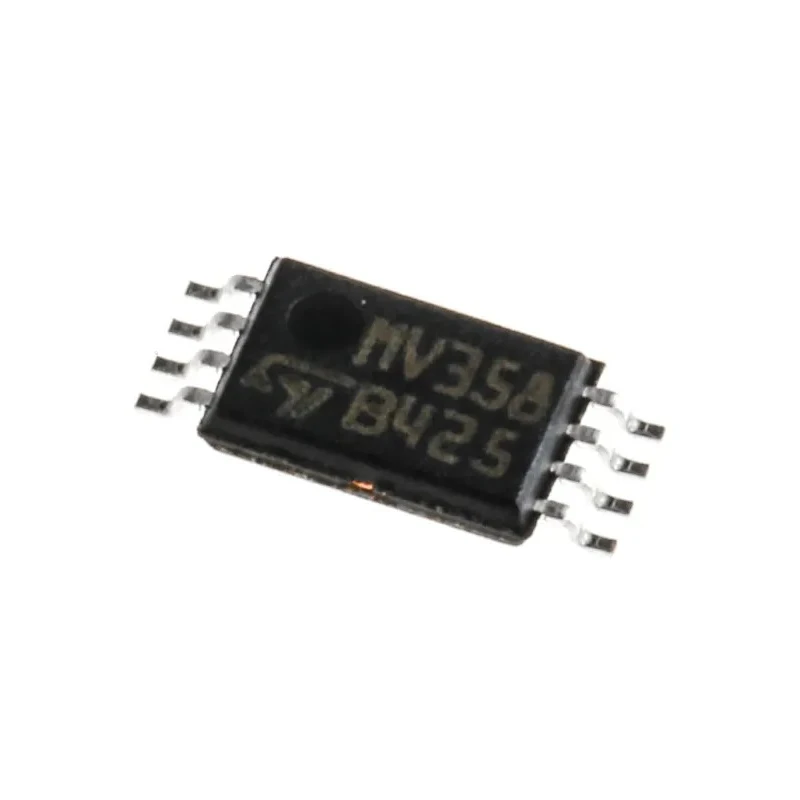

STMicroelectronics LMV358IPT Dual Operational Amplifier 1.3 MHz, Surface Mount, TSSOP, 8-Pin, 6V
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 3mm |
| Model | LMV358IPT |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LMV358 |
| Output Current | 46mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 85 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.45V/μs |
| Input Offset Current | 25 nA |
| Low supply current | 145 μA |
| Gain bandwidth product | 1 MHz |
| Electrostatic Discharge (ESD) tolerance | 2 kV |
Key Features
- Features a dual-channel configuration in an 8-pin TSSOP package.
- Boasts a gain bandwidth product of 1.3 MHz for reliable signal amplification.
- Operates within a supply voltage range of 3V to 6V.
- Surface mount design for easy PCB assembly and integration.
- Low supply current consumption and rail-to-rail input/output performance.
- Automotive standard AEC-Q100 compliant and RoHS approved.
- Supports a slew rate of 0.45V/μs and maximum output current of 46mA.
- Input bias current rated at 85 nA for precision circuitry.
Product Description
The STMicroelectronics LMV358IPT is a high-efficiency dual operational amplifier designed for precision applications where low power consumption, high performance, and robust integration are crucial. This device incorporates two op amp channels within a compact 8-pin TSSOP surface mount package, providing a gain bandwidth product of 1.3 MHz and supporting rail-to-rail input/output operation for versatile electronic circuit designs.
Featuring an operating supply voltage range from 3V to 6V, the LMV358IPT is ideal for battery-powered and portable designs as well as automotive-grade signal processing. Its low supply current of 145 μA and low input bias current of 85 nA enhance its suitability for sensitive analog measurement and amplification tasks in measurement equipment, industrial controls, and consumer electronics.
As an AEC-Q100 compliant part, this amplifier meets automotive industry standards for reliability, making it suitable for deployment in automotive sensor interfaces and safety systems. Additionally, RoHS compliance ensures alignment with environmental and manufacturing regulations.
The TSSOP package offers a small footprint, simplifying high-density circuit board layouts and allowing for efficient automated assembly. Designers benefit from a maximum slew rate of 0.45V/μs, input offset voltage of just 6 mV, and sturdy ESD tolerance rated at 2 kV. The amplifier's dual channels and output current capability of 46 mA provide flexibility for amplifying signals in instrumentation, communication systems, or portable device analog front ends.
The LMV358IPT is part of a family including LMV321 (single) and LMV324 (quad) variants, each optimized for rail-to-rail input/output and low supply current demands. Typical industrial and laboratory applications include signal conditioning, sensor amplification, active filters, and operational control loops in electronics manufacturing, process automation, and scientific instrumentation.
Browse more Operational Amplifiers and STMicroelectronics components on EnvMart to discover a broad selection of industry-standard devices for demanding electronic and industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMV358IPT has a gain bandwidth product of 1.3 MHz, which ensures reliable signal amplification for various applications.
This model operates within a supply voltage range of 3V to 6V, making it suitable for battery-powered applications.
The maximum output current for this operational amplifier is 46 mA, allowing it to drive various loads effectively.
The input bias current is rated at 85 nA, which is beneficial for precision circuitry in sensitive applications.
The dimensions of this operational amplifier are 1 mm in height, 3 mm in length, and 4.4 mm in width, packaged in an 8-pin TSSOP format.
The slew rate of this model is 0.45 V/μs, which contributes to its performance in fast signal applications.
Yes, the LMV358IPT is AEC-Q100 compliant, meeting automotive industry standards for reliability and performance.
The input offset voltage for this operational amplifier is just 6 mV, which enhances its precision for analog applications.
This model has an ESD tolerance rated at 2 kV, providing protection against static discharge during operation.
The operational amplifier can operate within a temperature range of -40°C to 125°C, suitable for various environmental conditions.
The LMV358IPT is packaged in a TSSOP format, which is a surface mount type, facilitating easy PCB assembly.
Typical applications include signal conditioning, sensor amplification, and active filters in measurement equipment and industrial controls.
