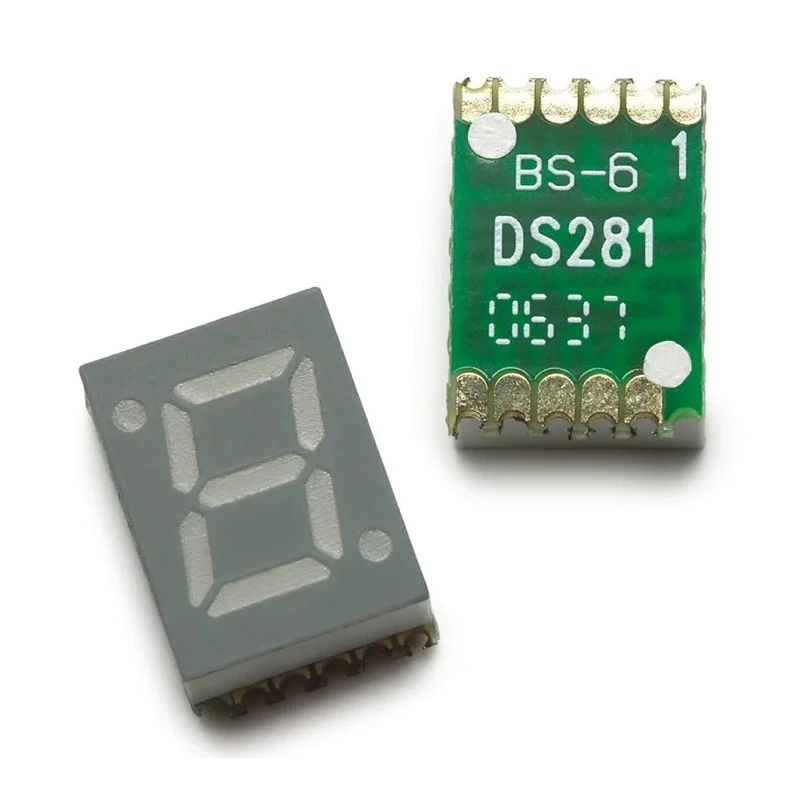

Broadcom 1 Digit 7 Segment Red LED Display Cathode 10mm Character Height HDSM-433C
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSM-433C |
| Mount Type | Surface |
| Character height | 10mm |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 9.8mm |
| External Depth | 15mm |
| External Height | 3.8mm |
| Power Dissipation | 65mW |
| Luminous Intensity | 14.3mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 25mA |
| Number of Characters | 1 |
| Character Width | 6.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display consists of one single-digit with seven segments for numeric visualization.
- It emits red light with a luminous intensity of 14.3mcd and dominant wavelength of 630nm.
- The character width is 6.2mm and has surface mount type for circuit board compatibility.
- Operating temperature range spans from -40°C to 105°C ensuring reliable performance in varied environments.
- The forward voltage rating is 2V with a forward current of 25mA for efficient electrical operation.
- It has a right side decimal orientation and a grey face color that enhances display clarity.
- The compact external dimensions are 3.8mm height, 9.8mm width, and 15mm depth.
- Designed in compliance with RoHS standards for eco-friendly manufacturing.
Product Description
Broadcom HDSM-433C is a high-quality single-digit 7 segment LED display designed for numeric display applications in electronic equipment and industrial displays. Featuring a red LED color with 14.3mcd luminous intensity and 630nm dominant wavelength, this display provides clear visibility in various lighting conditions.
The LED display has a 10mm character height and 6.2mm character width, suitable for compact and precise displays. With a cathode common connection and surface mount type, this device is optimized for easy integration onto printed circuit boards.
Operating reliably between -40°C and 105°C, the HDSM-433C can withstand environmental stresses typical in industrial, manufacturing, and commercial electronic settings. Its forward voltage of 2V and forward current of 25mA ensure energy-efficient operation.
The display has a right side decimal orientation and a grey colored face that improves readability and aesthetic integration. External dimensions of 3.8mm height, 9.8mm width, and 15mm depth make it suitable for space-constrained designs.
Compliant with RoHS, the display meets environmental and safety standards. Produced in China, it is delivered in new condition and ready for use in electronics manufacturing, instrumentation, industrial automation systems, and LED display modules.
The display supports numeric visualization with one character and seven segments. High luminous intensity ensures clear numeric presentation. Surface mount design allows safe and secure PCB installation. Wide operating temperature range suits harsh environmental conditions.
Electrically efficient forward voltage and current specifications. Standard right side decimal orientation for versatile numeric display. Compact dimensions fitting diverse design constraints. RoHS compliance ensuring sustainability and safety.
Ideal for industrial, laboratory, commercial, and electronic product displays. Explore the broad range of Broadcom LED Display modules on EnvMart for various electronic and industrial display solutions.
