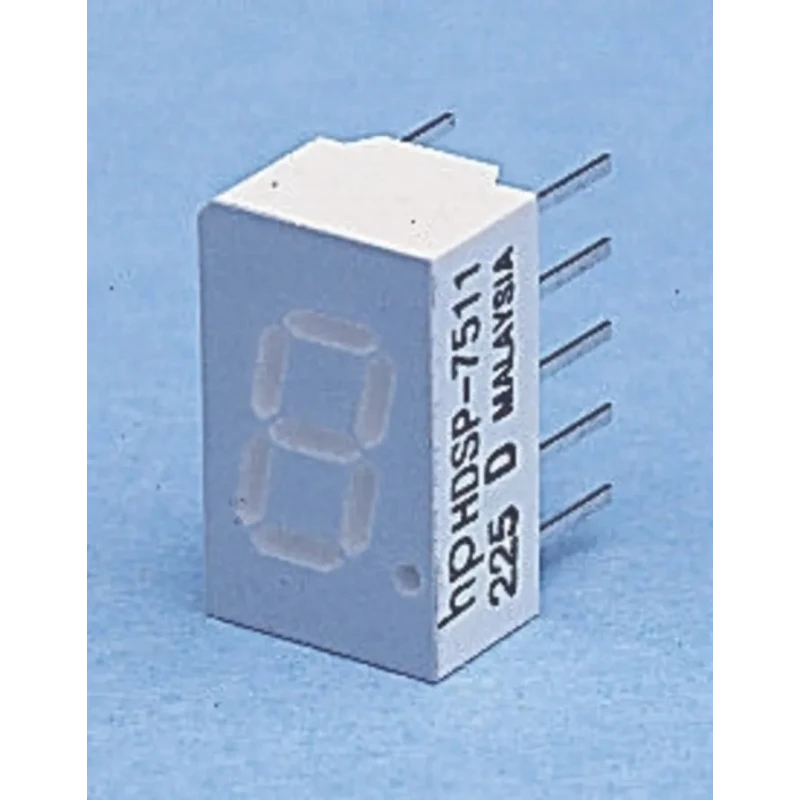

Broadcom 1-Digit 7-Segment Red LED Display, Anode, Right Side Decimal, 7.6mm, HDSP-7501-CD000
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-7501-CD000 |
| Mount Type | Through Hole |
| Character height | 7.6mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.6mm |
| External Depth | 9.9mm |
| External Height | 12.7mm |
| Luminous Intensity | 5.4mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 4.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
| HDSP-7511 Broadcom 7-Segment LED Display, CA Red 1 mcd RH DP 7.6mmBrand | Broadcom |
Key Features
- Single-digit 7-segment red LED display for numeric indicators.
- Anode common connection with right-side decimal point for flexible interface design.
- High visibility with 7.6 mm character height and 4.2 mm character width.
- Luminous intensity of 5.4 mcd at a 626 nm dominant wavelength.
- Capable of operating from -40°C to 100°C for wide-ranging environments.
- Robust through-hole mount ensures stable panel or board installation.
- Forward voltage rated at 2 V with maximum forward current of 30 mA.
- Grey face enhances digit contrast and readability in all lighting.
Product Description
The Broadcom HDSP-7501-CD000 is a single-digit 7-segment LED display engineered for precise numeric indication in a variety of professional and industrial electronics applications. Designed with an anode common connection and right-side decimal point, this display is well-suited for digital instrumentation, panel meters, and embedded systems requiring reliable numeric visual output.
Constructed with a clearly visible red LED emission at a dominant wavelength of 626 nm, the HDSP-7501-CD000 delivers a luminous intensity of 5.4 millicandela, ensuring legibility even under varied ambient lighting. The compact size, with a 7.6 mm character height and a 4.2 mm character width, enables efficient fitment on densely populated PCBs. Its grey face maximizes contrast while the robust through-hole design ensures secure mechanical and electrical installation.
This display supports a forward voltage of 2 V and can handle a maximum forward current of 30 mA, aligning with typical electronic control circuits. With its wide operational temperature range from -40°C up to 100°C, the HDSP-7501-CD000 is well-suited for demanding environments in industrial process control, HVAC monitoring, laboratory instrumentation, and test equipment.
The external package dimensions are well-suited for space-efficient designs: 12.7 mm in height, 7.6 mm in width, and 9.9 mm in depth. Its seven-segment construction allows for clear alphanumeric representation. Compliance with RoHS standards ensures environmentally responsible operation and compatibility with global markets.
Application fields include automation panels, measurement systems, handheld and benchtop test devices, and any digital platform requiring a compact visual numeric indicator. The reliability and consistent performance make it a preferred choice in sectors such as industrial automation, electronics manufacturing, HVAC control, and laboratory diagnostics.
Explore more Broadcom displays and related products in the LED Display section to find solutions perfect for your next electronics or embedded system project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Broadcom HDSP-7501-CD000 is 5.4 millicandela.
This model can operate within a temperature range of -40°C to 100°C.
The external dimensions are 12.7 mm in height, 7.6 mm in width, and 9.9 mm in depth.
It features an anode common connection with a right-side decimal point.
The forward voltage is rated at 2 V with a maximum forward current of 30 mA.
The LED emits red light with a dominant wavelength of 626 nm.
The character height is 7.6 mm and the character width is 4.2 mm.
It uses a through-hole mounting design for stable installation.
Yes, it complies with RoHS standards for environmentally responsible operation.
The display consists of 7 segments, allowing for numeric representation.
The face of the display is grey, enhancing digit contrast and readability.
