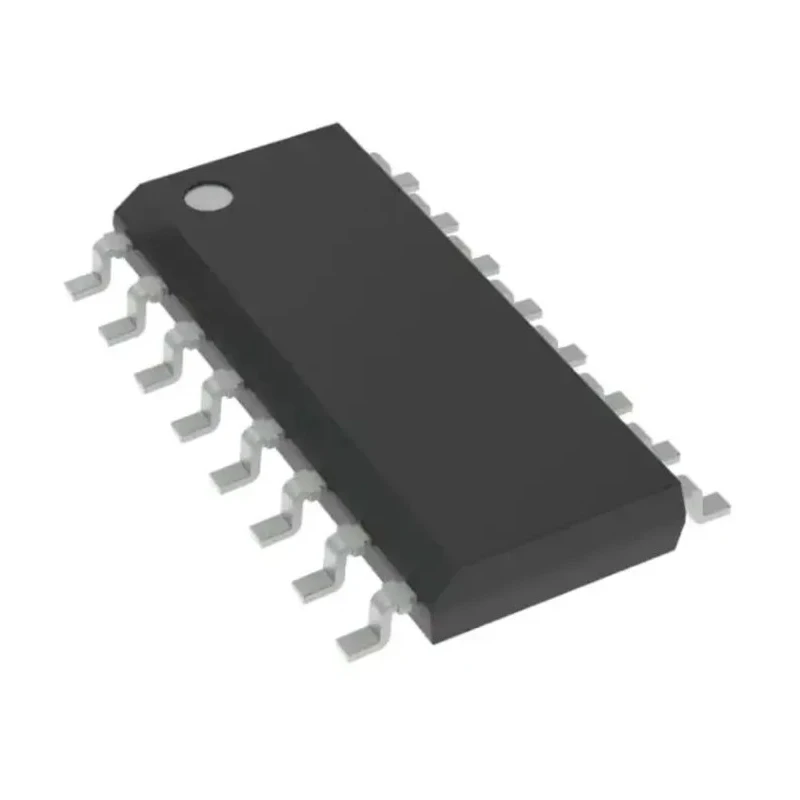

STMicroelectronics Surface Mount 8-Bit DMOS Shift Register IC SO-16, 4.5-5.5V, 125°C STPIC6C595MTR

STMicroelectronics STPIC6C595MTR is a medium-voltage, low-current semiconductor 8-bit shift register IC designed for surface mount applications in the SO-16 package. It operates with a minimum supply voltage of 4.5V and a maximum supply voltage of 5.5V, suitable for logic-level interfacing and driving moderate power loads in electronic systems.

This device integrates an 8-bit serial-in and parallel-out shift register, feeding an 8-bit D-type storage register for data retention and output stability. The output stage employs DMOS technology, characterized by a low typical on-resistance of 4 Ω, allowing efficient power handling with 100 mA output drive capability.

Designed with robust output protection, the IC incorporates a built-in voltage clamp capable of 30 millijoules avalanche energy absorption and a clamp voltage of 33 V to protect against inductive transient voltages, making it reliable for industrial, automotive, and electronic control systems.

The outputs have a 250 mA current limit to safeguard the device during overload conditions. Its pin count of 16 pins arranged in the SO-16 package with compact dimensions (10 mm length, 4 mm width, and 1.75 mm height) enables efficient PCB space utilization for high-density electronic circuits.

This shift register IC is RoHS compliant and designed for new device conditions, ideal for electronic, industrial, automotive systems, and embedded digital applications requiring reliable serial-to-parallel data conversion and storage.

The IC features 8-bit serial-in, parallel-out shift register with 8-bit D-type storage register. It includes built-in voltage clamp output protection for inductive transient events. Low on-resistance (4 Ω typical) DMOS outputs support 100 mA per output.

Outputs offer 30 mJ avalanche energy absorption and 33 V clamp voltage. Device supports cascaded operation for extended register length. Current limiting of 250 mA per output ensures device safety. Compact SO-16 surface mount package measures 10 mm length x 4 mm width x 1.75 mm height.

Compliance with RoHS environmental standards.

For engineers and designers looking for durable and efficient shift register solutions, the STMicroelectronics STPIC6C595MTR provides performance and protection in a compact surface mount package. Explore EnvMart's comprehensive collection of semiconductor ICs to find compatible components for industrial and electronic system integration.
