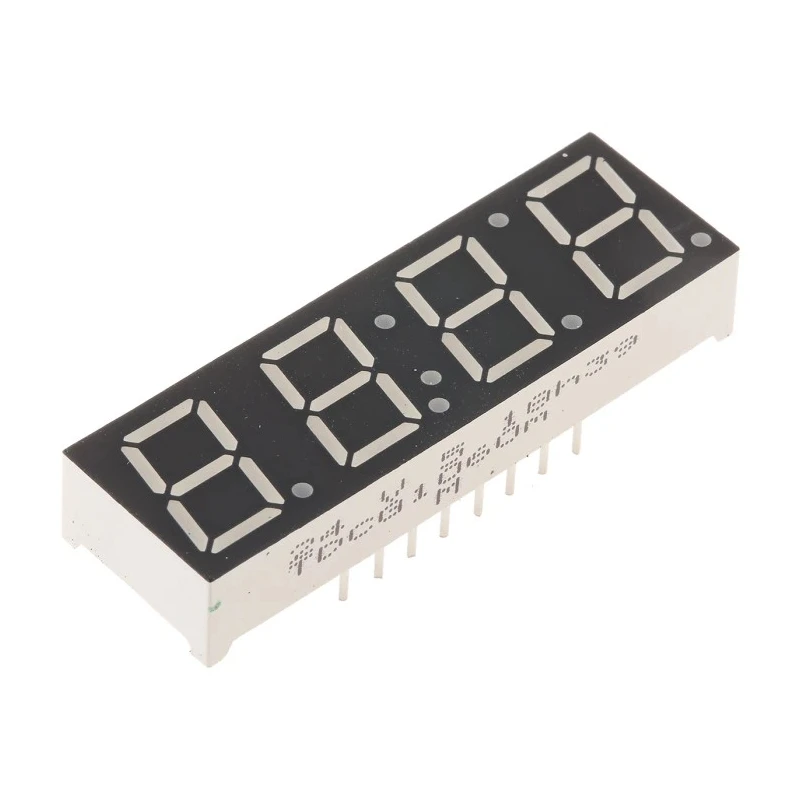

Vishay 4 Digit 7-Segment LED Display, Cathode, Green, 4mcd, Right Side, Through Hole, 10mm, TDCG1060M
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Vishay |
| Package | 10 mm clock |
| Model | TDCG1060M |
| Mount Type | Through Hole |
| Series | Standard |
| Character height | 10mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 40.2mm |
| External Depth | 12.8mm |
| External Height | 7mm |
| Power Dissipation | 60mW |
| Luminous Intensity | 4mcd |
| Standards/Approvals | JEDEC JS709A, IEC 61249-2-21, Halogen Free, RoHS |
| LED Colour | Green |
| Dominant Wavelength | 573nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 25mA |
| Number of Characters | 4 |
| Character Width | 6mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| Material categorization | For definitions of compliance |
| Angle of half intensity | ± 50° |
| TDCG1060M Vishay 4 Digit 7-Segment LED Display, CC Green 4 mcd RH DP 10mmBrand | Vishay |
Key Features
- Four-digit 7-segment LED display for numeric readout.
- High-efficiency AlInGAP technology provides superior brightness.
- Green LED segments with a luminous intensity of 4 mcd.
- Through-hole mount facilitates robust PCB installation.
- Decimal orientation at the right side for accurate timekeeping.
- Multiplex mode supported for flexible circuit designs.
- Wide operating temperature range from -40°C to 85°C.
Product Description
The Vishay TDCG1060M is a robust 4-digit, 7-segment LED display designed for precision numeric readout in professional industrial and instrumentation applications. Featuring high-efficiency AlInGAP technology, this display delivers enhanced visibility and brightness, making it suitable for clock modules, timers, and monitoring equipment. Its green LED segments have a luminous intensity of 4 mcd and a dominant wavelength of 573 nm, ensuring clear visualization even at distances up to 7 meters.
With a character height of 10 mm and a compact package including external dimensions of 7 mm height, 12.8 mm depth, and 40.2 mm width, the TDCG1060M offers a space-efficient solution for electronic circuit integration. The display is common cathode and mounts securely via through-hole technology, facilitating reliable PCB installation. The decimal point is positioned on the right side, ideal for time display or counter functions.
This LED display is constructed with a grey face and white segments, ensuring optimal contrast and readability. It operates safely in ambient temperatures ranging from -40°C to 85°C, with power dissipation rated at 60 mW and a forward voltage of 2 V. The recommended forward current is 25 mA, supporting stable operation during multiplex mode. The segment angle of half intensity is ±50°, enabling wide viewing angles across panel-mounted installations.
The TDCG1060M is RoHS, Halogen Free, and JEDEC JS709A compliant, aligning with international standards for safety and environmental compatibility. Material categorization ensures consistent compliance across global applications. Applications include clock modules for video/audio equipment, instrumentation, set-top boxes, data loggers, counters, and timer units in manufacturing, laboratory, and commercial environments.
This display is supplied as a standard series package, supporting easy integration and replacement in existing circuits. Its reliability and performance make it a preferred choice among industrial designers and electronics manufacturers. Explore other Vishay LED Displays and optoelectronic modules to match your specific design requirements within electronics and instrumentation categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Vishay TDCG1060M is 4 mcd, which enhances visibility for numeric readouts.
This model operates safely within a temperature range of -40°C to 85°C, making it suitable for various environments.
The TDCG1060M uses through-hole mounting, facilitating secure installation on printed circuit boards (PCBs).
The character height of the segments in this display is 10 mm, providing clear visibility for numeric readouts.
The forward voltage for the TDCG1060M is 2 V, with a recommended forward current of 25 mA for stable operation.
This display features four digits, allowing for a comprehensive numeric readout.
The external dimensions of the TDCG1060M are 40.2 mm in width, 12.8 mm in depth, and 7 mm in height.
The angle of half intensity for the segments is ±50°, which provides wide viewing angles for panel-mounted installations.
Yes, the TDCG1060M is RoHS compliant, as well as Halogen Free, ensuring it meets international safety and environmental standards.
This model is suitable for applications such as clock modules, timers, instrumentation, and counters in various industrial environments.
The LED segments of the TDCG1060M are green, providing clear visibility against the grey face of the display.
The TDCG1060M utilizes 7-segment display technology, which is standard for numeric readouts in electronic devices.
