Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150

Free Delivery in India | Lowest Global Shipping Charges

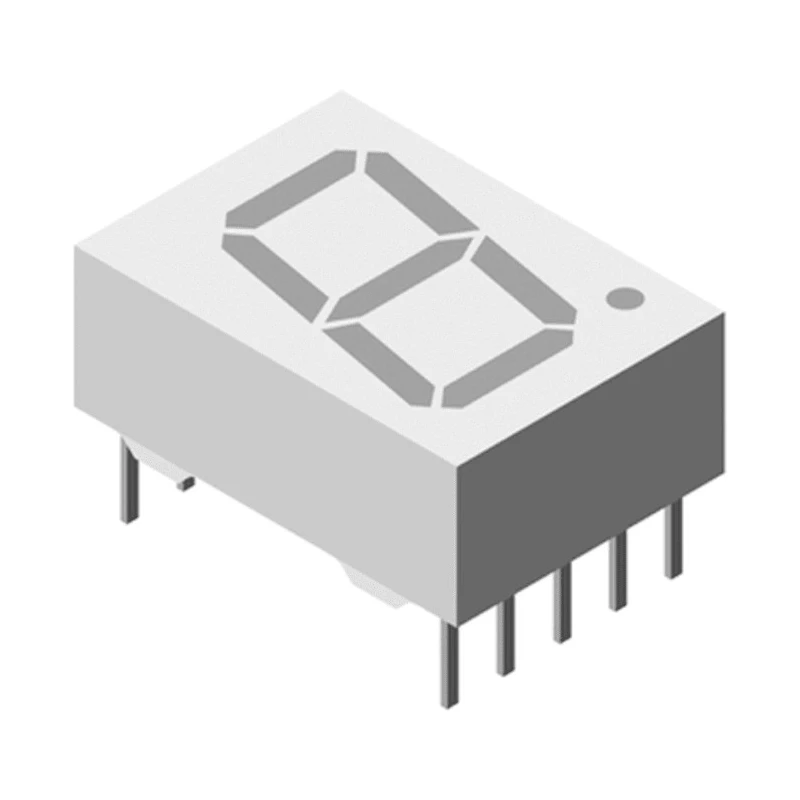

Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150

Name: Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150
Brand: Vishay
SKU: 217618
Price: 1.93 USD
Availability: InStock



Category LED Display Brand Vishay Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Vishay
Model	TDSL5150
Mount Type	Through Hole
Series	TDSL51.0
Character height	13mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	12.5mm
External Height	7mm
Power Dissipation	320mW
Luminous Intensity	2mcd
Standards/Approvals	WEEE 2002/96/EC, RoHS Directive 2002/95/EC
LED Colour	Red
Dominant Wavelength	625nm
Colour of Face	Grey
Forward Voltage	2.7V
Forward Current	15mA
Number of Characters	1
Character Width	7.4mm
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

The display has a dominant wavelength of 625 nm and a luminous intensity of 2 mcd.
Character dimensions measure 7.4 mm in width and 13 mm in height with external dimensions of 12.5 mm width and 7 mm height.
It operates at a forward voltage of 2.7 V with a forward current of 15 mA and a power dissipation of 320 mW.
Designed for decimal orientation on the right side with a common anode connection type for easy integration.
Operational temperature range is from -40°C to 85°C ensuring reliability in various conditions.
The face is grey in colour and complies with WEEE 2002/96/EC and RoHS Directive 2002/95/EC.

Product Description

Vishay TDSL5150 1 7 Segment LED Display Anode Red is a single digit 7-segment LED display designed for precise and visible numerical output in electronic applications.

This display module uses a common anode configuration and features a red LED light with a dominant wavelength of 625 nm, providing clear and bright indication with a luminous intensity of 2 mcd.

The character size is defined by its width of 7.4 mm and a height of 13 mm, while the overall dimensions are 12.5 mm in width and 7 mm in height, making it suitable for compact PCB installations.

It operates efficiently at a forward voltage of 2.7 V and supports a forward current of 15 mA, with power dissipation rated at 320 mW. Designed for decimal orientation facing the right side, it is ideal for numeric displays in various electronic devices.

The device supports through-hole mounting and is rated for operation within a broad temperature range from -40°C to 85°C, ensuring durability in industrial, laboratory, and commercial environments.

Its grey face enhances contrast and readability. Additionally, the product complies with the WEEE 2002/96/EC and RoHS Directive 2002/95/EC standards, underlining its environmental safety and quality.

The display provides efficient and bright numeric output suitable for electronic instrumentation. Its temperature tolerance ensures reliable operation in diverse environmental conditions. Through-hole mounting facilitates durable and stable installation on circuit boards.

The compliance with environmental directives makes it suitable for eco-conscious manufacturers. The compact size supports integration in space-constrained electronic assemblies.

These features make the Vishay TDSL5150 LED display a practical choice for electronics manufacturing, instrumentation, control systems, and digital readouts where clear numeric display is needed.
