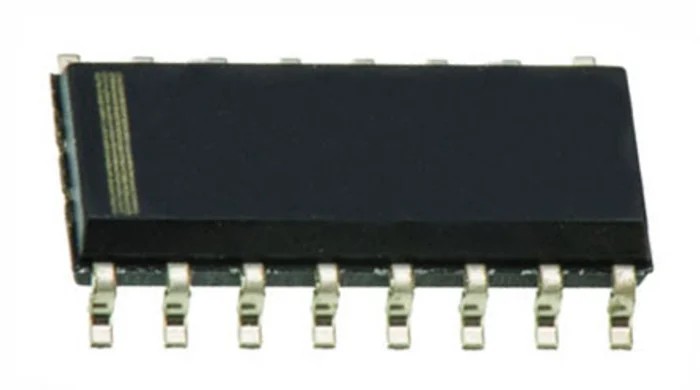

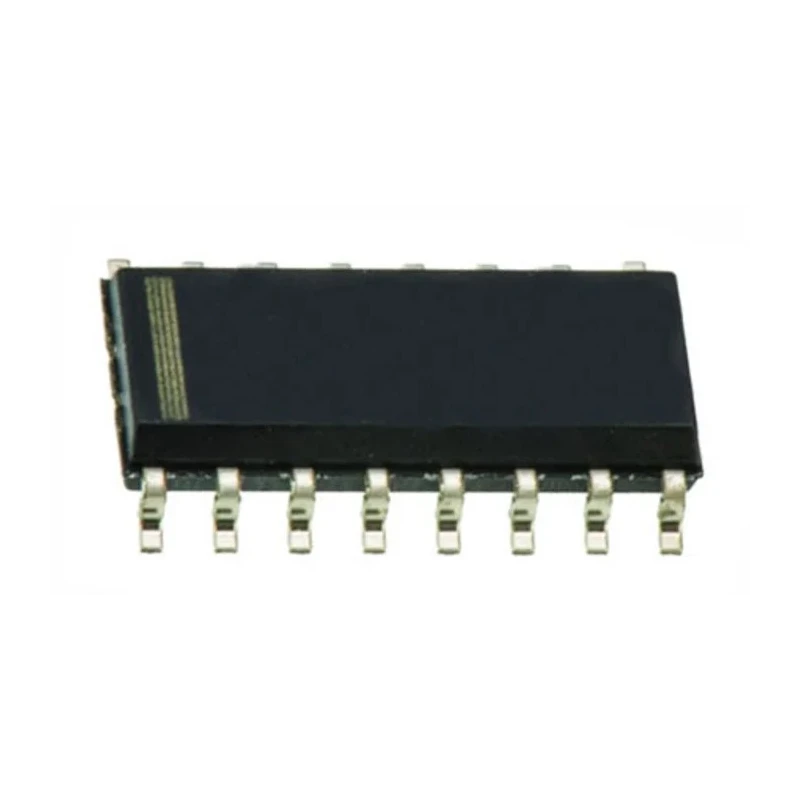

Texas Instruments 2 Flip Flop IC LVC, Differential, 16-Pin SOIC, JK Type SN74LVC112AD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 9.9mm |
| Model | SN74LVC112AD |
| Width | 3.91mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Differential |
| Series | 74LVC |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting, Inverting |
| Operating Voltage | 1.65 to 3.6V |
| Trigger Type | Negative Edge |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVC |
| Minimum Supply Voltage | 1.65V |
| Flip-Flop Type | JK Type |
Key Features
- This IC integrates 2 flip-flop elements per chip for complex logic operations.
- It features input types that are single-ended and output types that are differential for precise signal control.
- Supports negative edge triggering to detect input signal changes effectively.
- Compatible with Input LVTTL/TTL and Output LVCMOS logic levels.
- Designed for robust industrial use with operating temperatures from -40°C to 85°C.
- Package dimensions include a height of 1.58mm, length of 9.9mm, and width of 3.91mm.
- Part of the 74LVC logic family known for low-voltage CMOS technology and reduced power consumption.
Product Description
Texas Instruments SN74LVC112AD is a 2 flip-flop JK type integrated circuit that belongs to the 74LVC family, well-known for its low-voltage CMOS logic technology. It operates efficiently between 1.65V and 3.6V, making it suitable for low power consumption applications.
This differential output flip-flop IC is designed for surface mount applications featuring a 16-pin SOIC package measuring 9.9mm in length, 3.91mm in width, and 1.58mm in height. It operates over a broad temperature range from -40°C to 85°C, making it ideal for industrial and commercial electronic circuit applications.
The device has single-ended inputs and differential outputs. It supports both non-inverting and inverting polarities with negative edge triggering, providing versatility in timing and waveform control for digital circuits.
Designed to be compatible with LVTTL/TTL input levels and output LVCMOS, the SN74LVC112AD offers enhanced latch-up performance exceeding 250mA as per JESD 17 standards and ESD protection conforming to JESD 2274 standards, ensuring reliability and robustness in harsh environments.
Contains 2 JK flip-flop elements per chip for complex logical operations. Utilizes silicon gate CMOS technology for reduced power consumption compared to traditional 5V systems. Operates at a low voltage range suited for modern digital electronics.
Packaged in a compact and efficient 16-pin SOIC surface mount package. Suitable for use in industrial electronic assemblies, embedded systems, and digital control circuits. Compliance with RoHS supports environmentally conscious manufacturing.
This IC is ideal for applications in industrial automation, computing, signal processing, and embedded electronics requiring precise timing and logic control with low power consumption.
Explore additional components and complementary products within the Flip Flop IC category at EnvMart for complete electronic circuit solutions.
Explore more products in our Flip Flop ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently within a voltage range of 1.65V to 3.6V.
The package dimensions are 9.9mm in length, 3.91mm in width, and 1.58mm in height.
It can operate at a maximum temperature of 85°C.
It features single-ended inputs and differential outputs, compatible with LVTTL/TTL input levels and LVCMOS output levels.
Each chip contains 2 JK flip-flop elements, allowing for complex logic operations.
It supports negative edge triggering to effectively detect changes in input signals.
It offers both non-inverting and inverting polarities for its outputs.
This IC is suitable for applications in industrial automation, computing, signal processing, and embedded electronics requiring precise timing and logic control.
It belongs to the 74LVC logic family, known for low-voltage CMOS technology.
It conforms to JESD 2274 standards for ESD protection, ensuring reliability in harsh environments.
The country of origin for this product is India.
It is designed for surface mounting applications.
