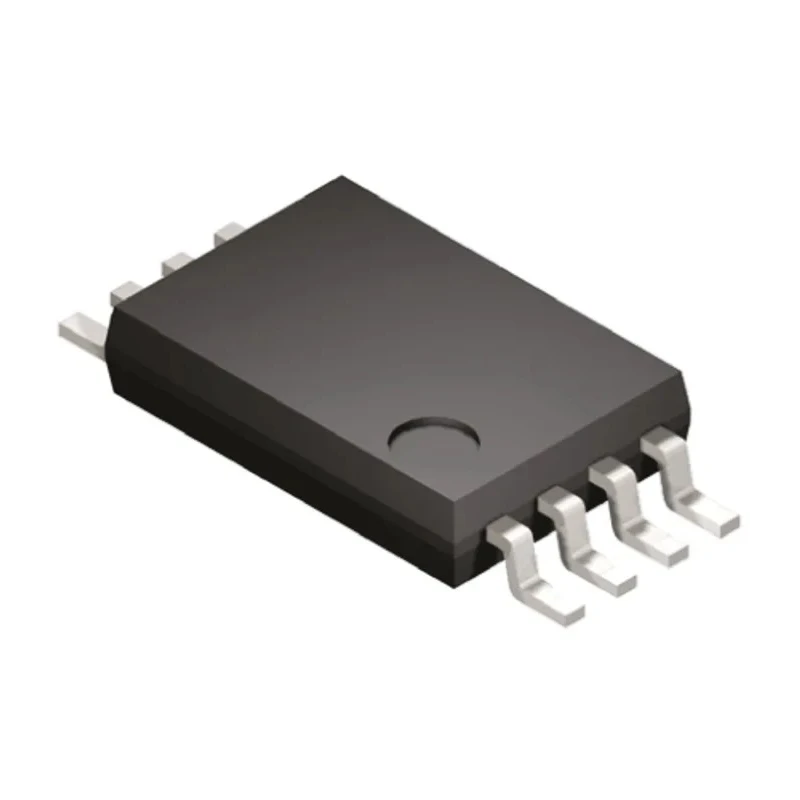

onsemi ECL Flip Flop IC D Flip-Flop, Differential Single Ended Input, 3GHz Clock Frequency, 8-Pin TSSOP Package MC100EP51DTG

onsemi MC100EP51DTG is an advanced ECL (Emitter Coupled Logic) flip flop integrated circuit designed for use in high-frequency digital switching and logic applications. It features a D-type flip-flop configuration with both differential and single-ended input capabilities, making it flexible for various digital signal designs. The device is encapsulated in a compact 8-pin TSSOP surface mount package, facilitating easy integration into modern printed circuit boards (PCBs) designed for high-density component placement.

Operating with a supply voltage range from -3V minimum to 5.5V maximum, the MC100EP51DTG supports fast clock frequencies up to 3GHz, delivering swift response times essential for high-speed data processing and complex timing circuits. Its maximum propagation delay time of 500 picoseconds at typical load conditions ensures minimal signal lag, critical for synchronization in industrial, laboratory, and communication equipment.

The device withstands operating temperatures from -40°C to +85°C, enabling performance stability in varied environmental conditions typical of industrial and commercial electronics. With a single flip-flop element per chip, it guarantees dedicated functionality in timing, counting, and control systems.

Due to its ECL logic family, the MC100EP51DTG is suitable for applications requiring low noise and high-speed data operations, including telecommunications equipment, digital signal processing units, test and measurement instruments, and complex embedded control systems.

Its compact physical dimensions - 3.1mm length and 950μm height - allow it to fit into tight spaces where board real estate is premium. The surface mount technology (SMT) design facilitates automated assembly, enhancing production efficiency.

Features a D-type flip-flop with differential and single-ended input types. Operates at a clock frequency of up to 3GHz for high-speed switching. Supports supply voltages from a minimum of -3V up to a maximum of 5.5V. Maximum propagation delay time is 500 picoseconds at typical load capacitance.

Package type is TSSOP with a compact size: length 3.1mm and height 950µm. Designed for surface mount technology (SMT) applications. Operates reliably across a temperature range from -40°C to 85°C. Number of elements per chip is 1, ensuring single flip-flop functionality per IC.

Not compliant with any specific automotive standards or certifications.

This onsemi product is ideal for electronics engineers and technicians involved in design and production of high-speed digital circuits requiring robust, low-latency flip-flop components. It is often employed in industrial automation, communications infrastructure, laboratory instrumentation, and advanced digital control solutions.
