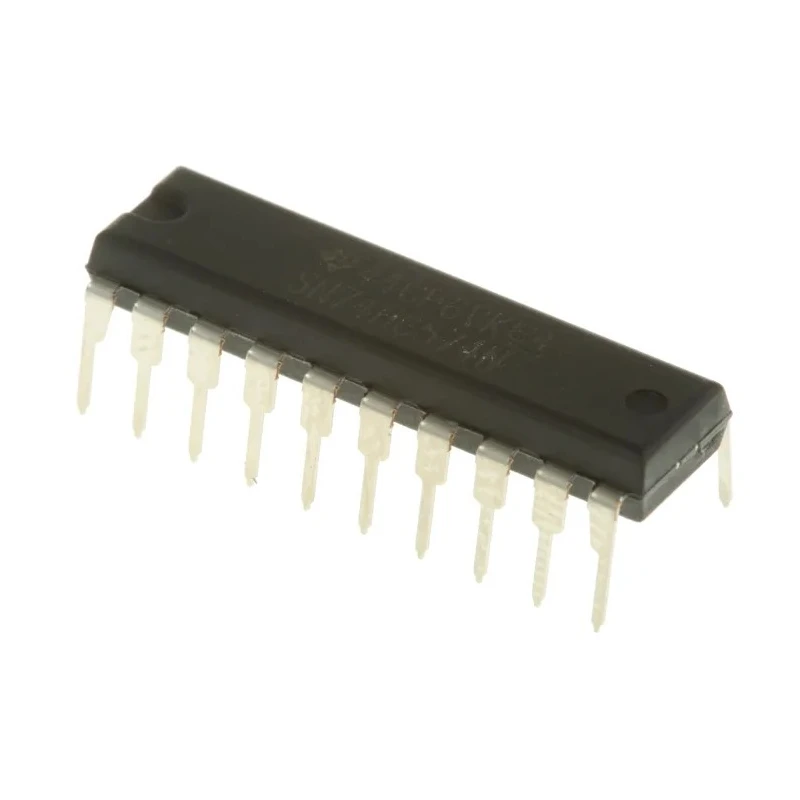

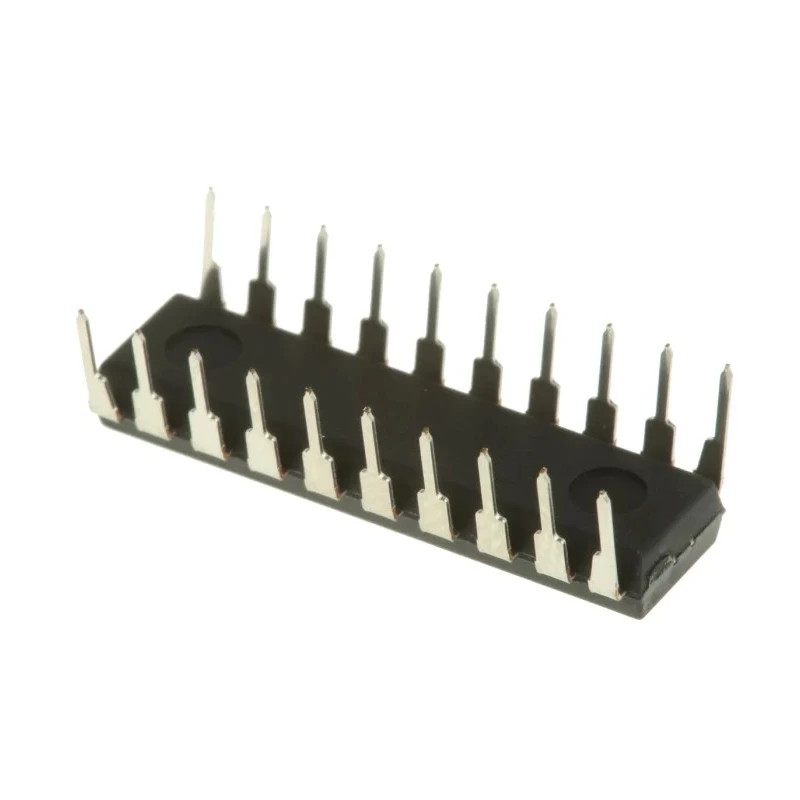

Texas Instruments 8-Element D Flip-Flop IC High-Speed CMOS Logic 2 - 6 V Operating Voltage PDIP 20 Pin SN74HC574N

Texas Instruments SN74HC574N is a premium 8-element D flip-flop integrated circuit fabricated using high-speed CMOS technology. This device belongs to the 74HC family, known for operating speeds comparable to LSTTL families while maintaining low power consumption of CMOS circuits. Packaged in a 20-pin dual in-line package (PDIP) suitable for through-hole mounting, this IC provides 3-state output capability, non-inverting polarity, and a clock frequency capacity of 28 MHz, enabling efficient high-speed digital signal processing.

The chip operates reliably within a supply voltage range of 2 to 6 volts, accommodating various industrial and commercial electronics designs. With a maximum propagation delay time of 57 nanoseconds at capacitive load conditions, it is suitable for fast switching requirements. Its positive edge-triggered input mechanism enhances the precision of logic timing and data control. The device is rated to operate in extreme temperatures ranging from -40°C to 85°C, making it suitable for harsh industrial environments or embedded systems.

Physically, the device measures 24.33 mm in length and 4.57 mm in height, allowing efficient utilization in densely packed circuit boards. The SN74HC574N provides compatibility with other CMOS input and output devices, enabling seamless integration into complex electronic systems. This IC is widely used in industrial automation, instrumentation, digital signal processing, and electronics manufacturing where reliable data storage and transfer are critical.

Additionally, the device features a robust construction supporting consistent performance across diverse applications. It does not carry automotive certification or other specific approvals but meets general semiconductor industry standards for logic ICs. The octal D flip-flop design supports eight separate flip-flop elements on a single chip, enhancing circuit density and simplicity.

A user seeking a reliable high-speed CMOS D flip-flop IC for electronic component assemblies, prototype development, or production line integration will find this Texas Instruments model a suitable solution due to its performance parameters and package type. Industrial, laboratory, and manufacturing environments will benefit from the device's electrical characteristics and rugged temperature tolerance.

Operates at supply voltage range between 2 V and 6 V enabling efficient power usage. High-speed CMOS technology delivers low power consumption and rapid switching. Positive edge-triggered, non-inverting clock input for precise timing control.

3-state output supports bus-oriented applications and enables external control. Wide operating temperature range suitable for commercial and industrial uses. 20-pin PDIP package allows through-hole mounting on PCB boards.

Compliant with 74HC family standards for logic IC compatibility. Octal flip-flop design accommodates eight D flip-flop elements in one IC. Explore more semiconductor and logic IC components from Texas Instruments within the EnvMart catalog for various electronics design and manufacturing needs.
