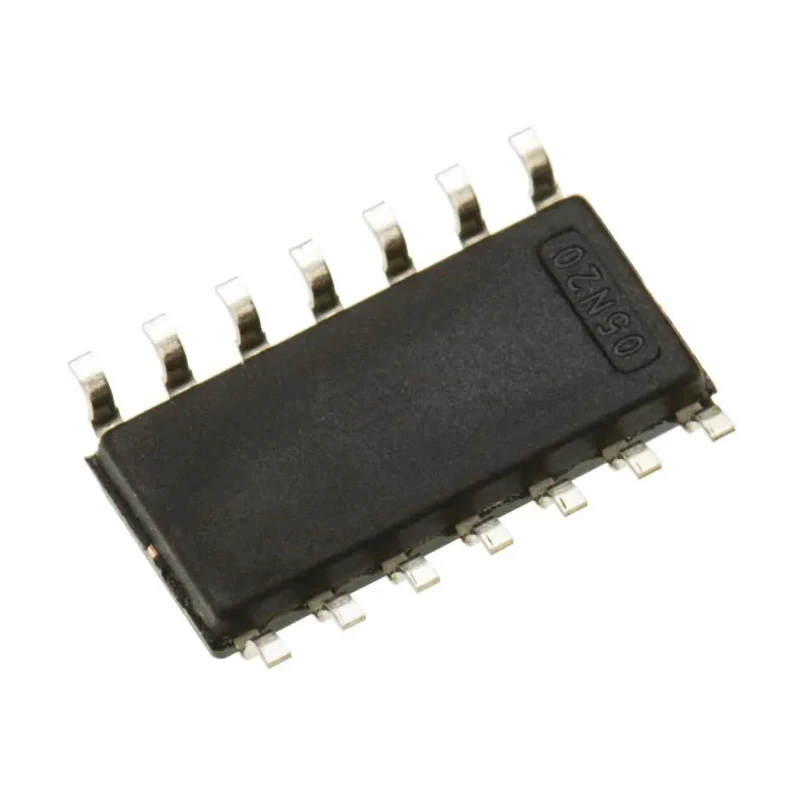

Texas Instruments 4000 Series 2 Flip Flop IC, 14-Pin SOIC, 3 to 18V Operating Voltage CD4013BM

Texas Instruments CD4013BM is a dual D-type flip flop integrated circuit part of the 4000 series CMOS logic family. It features a surface mount 14-pin SOIC package designed for compact and efficient inclusion on PCB layouts. The device operates with a wide supply voltage range from 3 V minimum up to 18 V maximum, making it suitable for a variety of electronic systems requiring versatile power conditions.

This logic IC supports both inverting and non-inverting input polarity modes and uses a positive edge trigger mechanism for clocking the flip flops. The chip incorporates 2 independent flip flop elements capable of handling clock frequencies up to 24 MHz, enabling applications requiring reasonably high-speed logic operations.

The maximum propagation delay under 90 nanoseconds ensures timely signal processing in complex digital circuits. The industrial operating temperature range from -55°C to 125°C guarantees dependable performance even in harsh environments. The physical dimensions of 8.65 mm length and 1.58 mm height conform to standard SOIC package specifications facilitating compatibility with common surface mount assembly processes.

Typical applications of the CD4013BM include digital logic design, data storage, timing circuits, and industrial control logic. It is widely used in electronic circuits requiring flip flop functionality for state retention or signal synchronization within various industrial, commercial, and laboratory instruments.

Operates across a wide voltage range of 3 to 18 volts for flexible power supply integration. Includes 2 independent D-type flip flop elements per chip for dual functionality. Provides a 14-pin Small Outline Integrated Circuit (SOIC) surface mount package for compact design.

Supports clock frequencies up to 24 MHz suitable for moderate-speed digital applications. Offers both inverting and non-inverting polarity inputs for versatile logic configurations. Positive edge triggering supports precise timing and control in digital circuits.

Reliable operation within -55°C to 125°C temperature range for industrial use. Standardized form factor with 8.65 mm length and 1.58 mm height dimensions.

This product belongs to the Flip Flop IC category under the Semiconductor segment in Electronics & Electricals. It is ideal for industrial, laboratory, and commercial electronic applications requiring stable and efficient flip flop logic elements. Explore more semiconductor ICs and related electronic components at EnvMart for your project and manufacturing needs.
