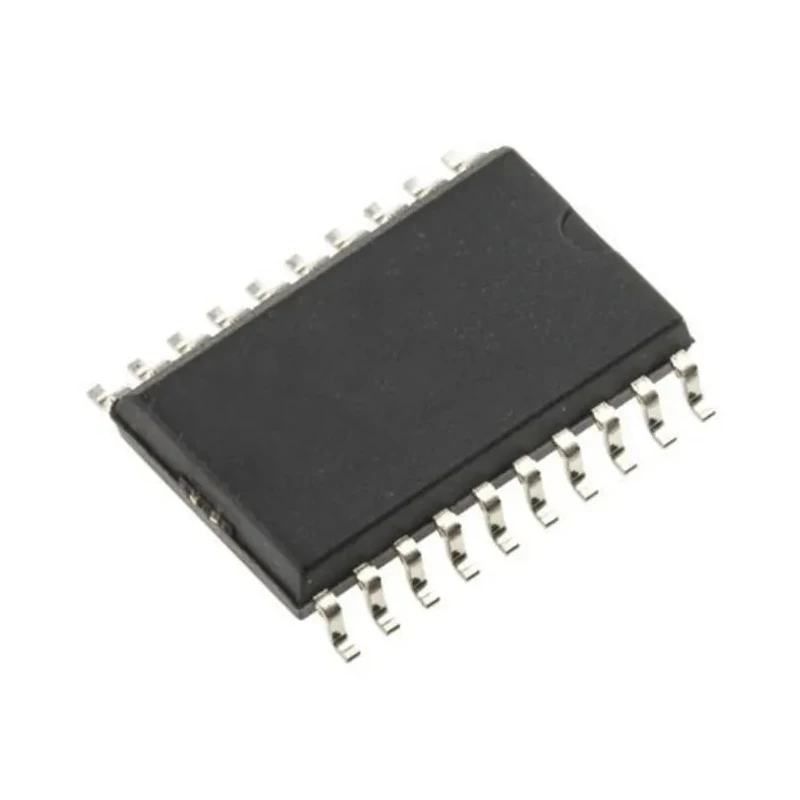

onsemi 1 Flip Flop IC HC CMOS 20-Pin SOIC Logic Family HC D Flip-Flop MC74HC273ADWG

onsemi MC74HC273ADWG is a high-performance silicon-gate CMOS 1 flip-flop integrated circuit designed for digital logic applications requiring stable and fast signal storage. It integrates eight D flip-flops with common Clock and Reset inputs, where each flip-flop is loaded on the low-to-high transition of the clock input. The asynchronous active low reset provides fast clearing of the flip-flops.

This device supports logic families with HC compatibility and features inputs compatible with both standard CMOS and LSTTL outputs when pull-up resistors are used. It operates within a voltage range of 2.0 V to 6.0 V, providing flexibility in power designs.

The maximum clock frequency is 24 MHz, enabling high-speed digital signal processing with a maximum propagation delay time of 38 ns under the specified load conditions. The device exhibits low input current of 1.0 mA and supports output drive capability for 10 LSTTL loads, making it efficient for driving typical logic circuits.

The package type is a 20-pin SOIC (Small Outline Integrated Circuit), with a compact height of 2.4 mm and length of 12.95 mm, optimized for surface-mount technology on printed circuit boards. Operating temperature range from -55 °C to 125 °C assures suitability for industrial and automotive environments.

The device complies with the AEC-Q100 automotive standard, assuring quality and reliability for automotive applications. Features silicon-gate CMOS technology for enhanced performance and reliability. Includes eight D flip-flops with shared Clock and asynchronous Reset inputs.

Supports voltage operating range between 2 V to 6 V for versatile usage. Compact SOIC 20-pin surface mount package. Meets automotive quality standard AEC-Q100.

This flip-flop IC is ideal for industrial, automotive, manufacturing, and electronic instrumentation applications requiring precise and reliable digital data storage and processing. Its low power consumption and high-speed operation enable efficient design of complex digital circuits. Choose the onsemi MC74HC273ADWG for your next industrial control or automotive electronics project to ensure performance and endurance.
