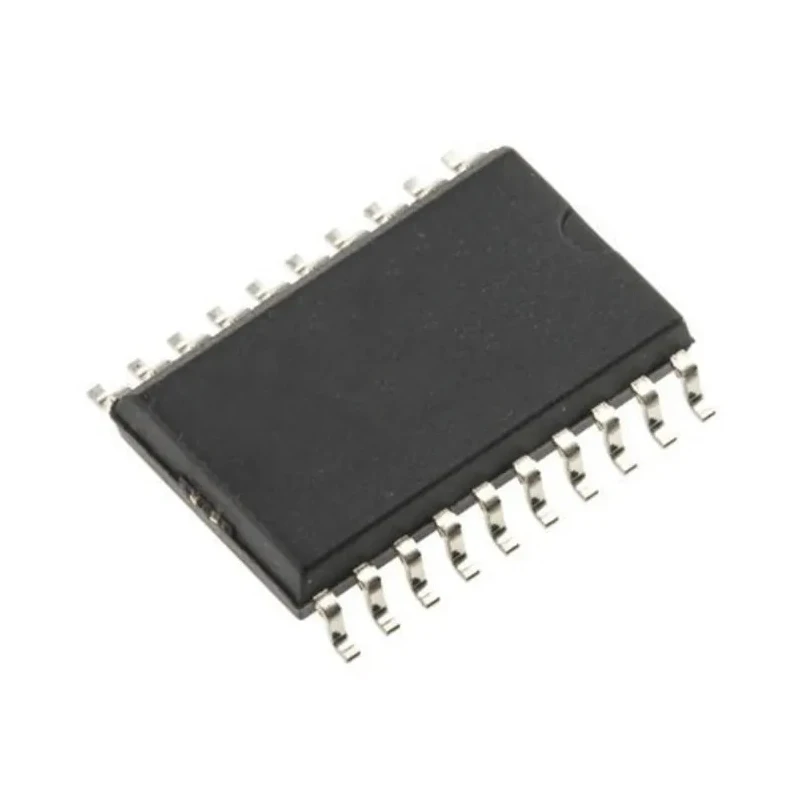

onsemi AC Logic Family D Flip Flop IC 20-Pin SOIC MC74AC273DWG

onsemi MC74AC273DWG is a high-performance AC logic family D Flip Flop IC designed for industrial and electronic applications requiring efficient data storage and transfer. Packaged in a compact 20-pin SOIC form factor, it offers eight edge-triggered D-type flip-flops with individual data inputs and outputs, controlled by a common buffered clock and asynchronous master reset.

Each flip-flop transfers the D input state to the Q output on the positive edge of the clock signal, with a maximum clock frequency of 125 MHz. The device supports TTL input compatibility and functions reliably across a wide supply voltage range between 2 V and 6 V.

The MC74AC273DWG achieves a maximum propagation delay of 14 nanoseconds at specified clock load conditions, ensuring minimal latency in signal processing tasks. Its operational temperature range from -40°C to 85°C makes it suitable for demanding environments including industrial, automotive (non-certified), and general-purpose electronics.

Designed for surface mounting, the 20-pin SOIC package measures 12.95 mm in length with a 2.4 mm height, facilitating integration into compact printed circuit boards. This IC is ideal for use in digital logic circuits, memory registers, microprocessor buffers, and other sequential logic applications that require precise synchronization and state retention.

Eight edge-triggered D flip-flops with buffered common clock and asynchronous master reset. TTL compatible inputs with non-inverting polarity. High-speed operation with clock frequency up to 125 MHz. Wide supply voltage range from 2 V to 6 V for versatile use.

Propagation delay time of 14 ns ensures timely data handling. Robust operation from -40°C to 85°C ambient temperature. Compact 20-pin SOIC surface mount package suitable for automated assembly. Compatible with a broad range of industrial and electronic systems.

Useful for microprocessor buffering, data storage, and synchronous sequential circuits. Explore more on digital Flip Flop ICs and semiconductor components in the Electronics & Electricals category at EnvMart.
