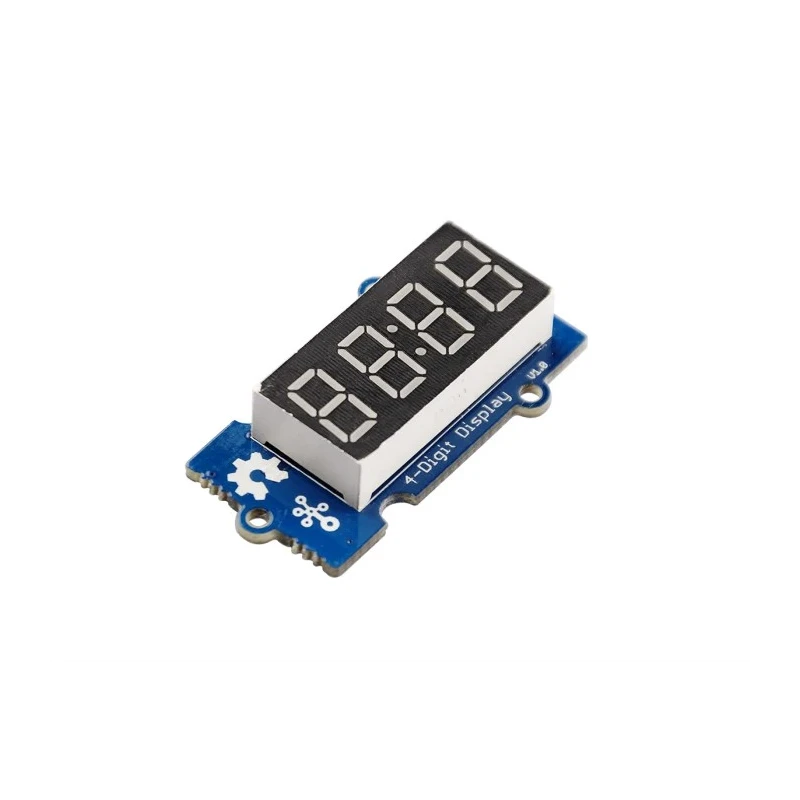

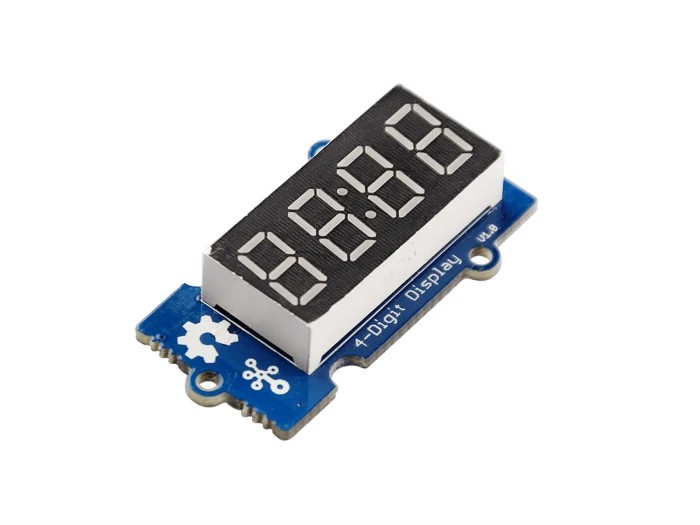

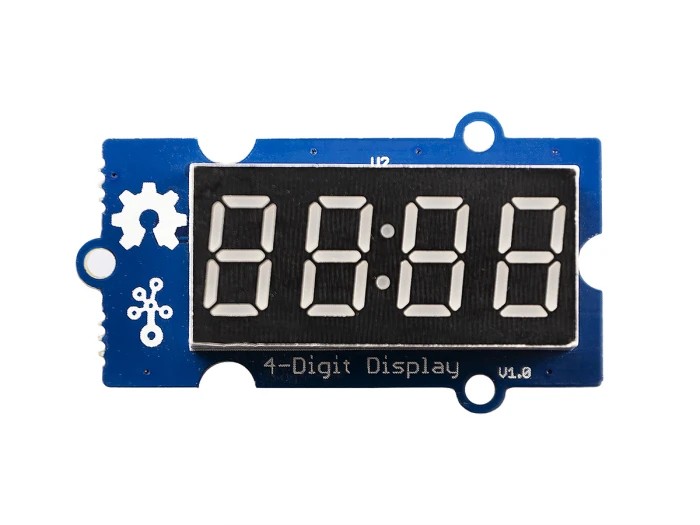

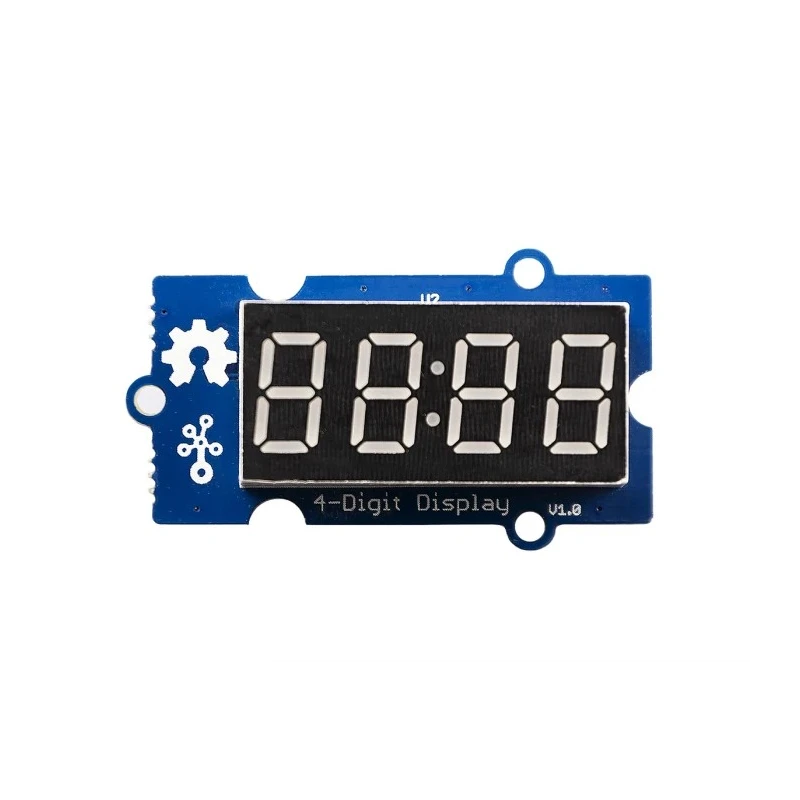

Seeed Studio 4-Digit Alphanumeric LED Display, Red, Through-Hole, 40x12x20 mm, 104030003
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Alphanumeric |
| Brand | Seeed Studio |
| Mount Type | Through Hole |
| Number Of Segments | 7 |
| External Width | 40mm |
| External Depth | 20mm |
| External Height | 12mm |
| LED Colour | Red |
| Colour of Face | Black |
| Number of Characters | 4 |
Key Features
- Features four-character alphanumeric LED display for numeric and lettered output.
- Red LED segments provide high visibility for clear readings in various lighting conditions.
- Through-hole pin configuration simplifies PCB or breadboard mounting.
- Compact dimensions of 40 mm width, 12 mm height, and 20 mm depth.
- Ideal for applications requiring time displays, stopwatches, or sensor readouts.
- Includes 7 segments per character and black face color for enhanced contrast.
- Compatible with Grove system, utilizing a TM1637 driver to minimize pin usage.
Product Description
The Seeed Studio 104030003 is a high-quality 4-digit alphanumeric LED display designed to provide clear readouts of numbers and letters in embedded electronics, control panels, and instrumentation applications. Each character on the module utilizes a 7-segment layout, offering users the flexibility to display a wide range of alphanumeric information. The vivid red LED color ensures visibility in both well-lit and dim environments, while the black face background maximizes display contrast for easy character recognition.
Engineered with standard through-hole mounting, this display is easy to incorporate into printed circuit boards or breadboard prototypes. The device features an external width of 40 mm, height of 12 mm, and depth of 20 mm, making it ideal for space-constrained designs. Its robust construction is suitable for industrial, laboratory, educational, and commercial projects.

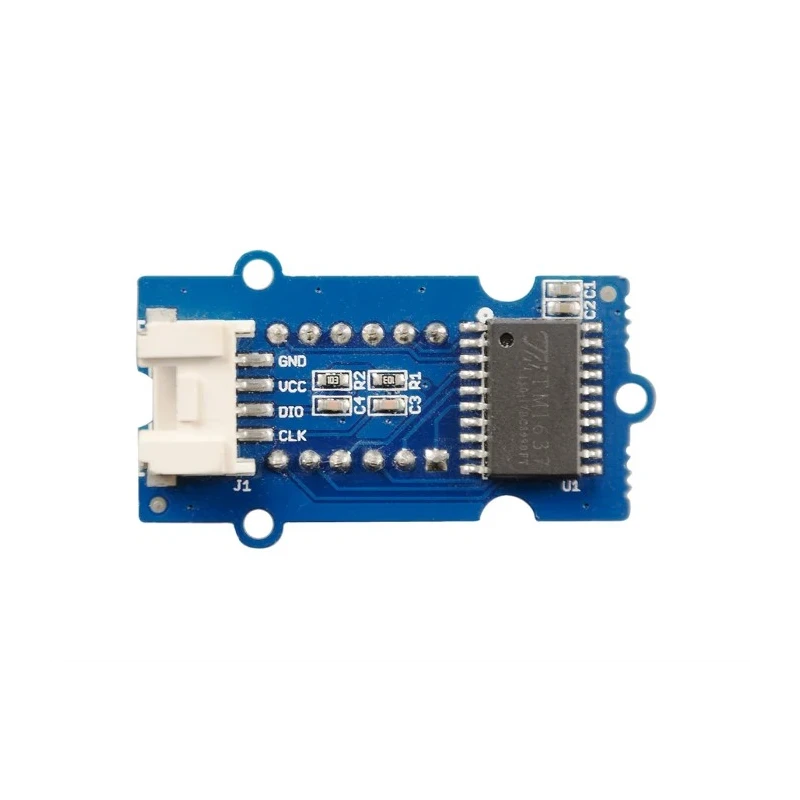

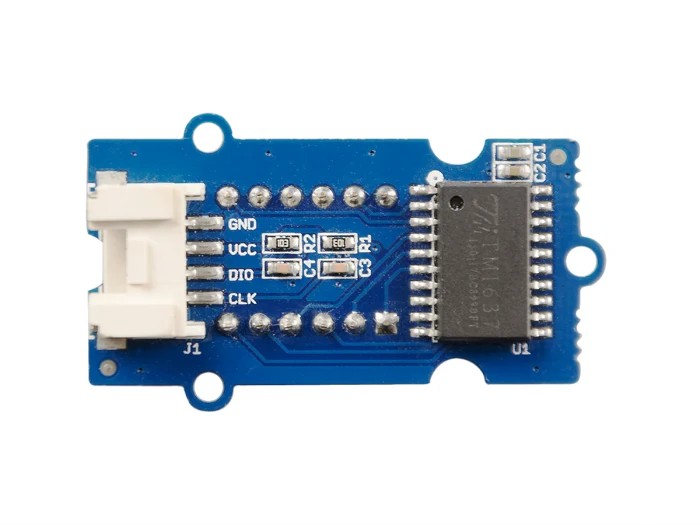

The Seeed Studio 104030003 display module leverages a TM1637 driver to reduce control pin requirements, utilizing just two digital pins for operation. This Grove-compatible design simplifies integration with Arduino, Seeeduino, or other microcontroller platforms, while also offering adjustable luminance with eight selectable brightness levels to accommodate different operating environments.
This display is particularly well-suited for time displays, stopwatches, and dynamic sensor input visualizations, offering a practical solution for design engineers and technical enthusiasts. Its four-character capacity allows for versatile alphanumeric communication, making it a reliable indicator in process monitoring systems, data loggers, or as part of user interface panels.
Typical application areas for this LED display include industrial control panels, laboratory measurement devices, automation systems, and HVAC monitoring equipment. The module's compatibility with Grove system ensures quick prototyping and modular expansion within a variety of electronic projects.
Whether for industrial instrumentation, maker electronics, or custom automation, the Seeed Studio 104030003 4-digit alphanumeric LED display provides reliable operation, ease of use, and robust mounting options for technical integration. Explore more LED Displays and electronic components from Seeed Studio and related categories for industrial, laboratory, and commercial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has external dimensions of 40 mm in width, 12 mm in height, and 20 mm in depth.
This model can display up to four characters, utilizing a 7-segment layout for each character.
It features a through-hole mounting type, making it suitable for easy integration into printed circuit boards or breadboards.
The display utilizes red LED segments, providing high visibility for clear readings.
Yes, it is compatible with the Grove system and utilizes a TM1637 driver to minimize pin usage.
It is ideal for applications requiring time displays, stopwatches, or sensor readouts, among others.
This model offers adjustable luminance with eight selectable brightness levels to suit different operating environments.
The face of the display is black, which enhances contrast for better character recognition.
The country of origin for this model is China.
Each character on the display consists of 7 segments.
Typical application areas include industrial control panels, laboratory measurement devices, automation systems, and HVAC monitoring equipment.
It can display both numeric and lettered output, making it versatile for various informational needs.
