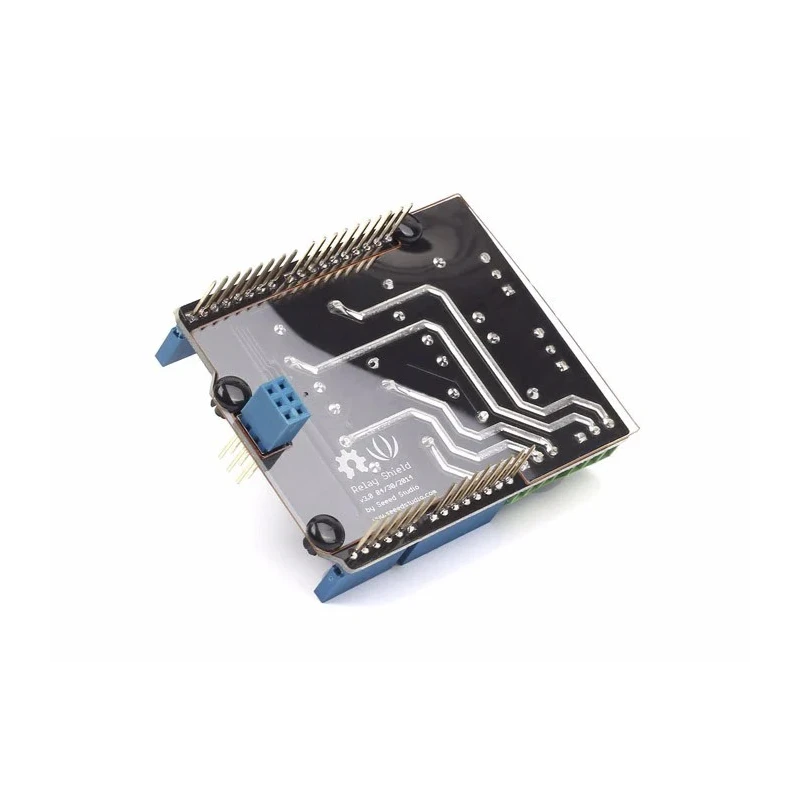

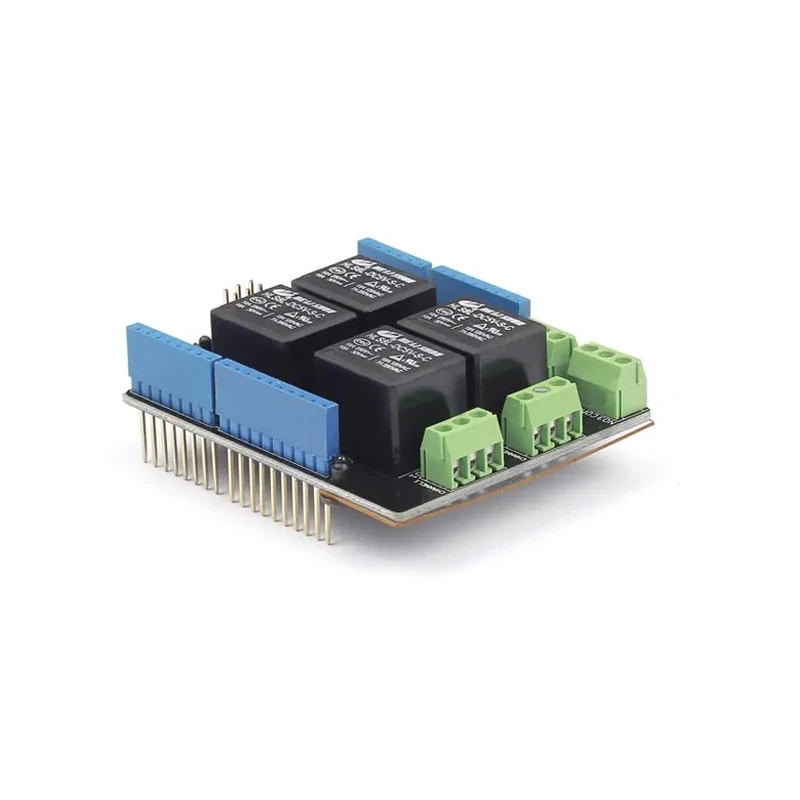

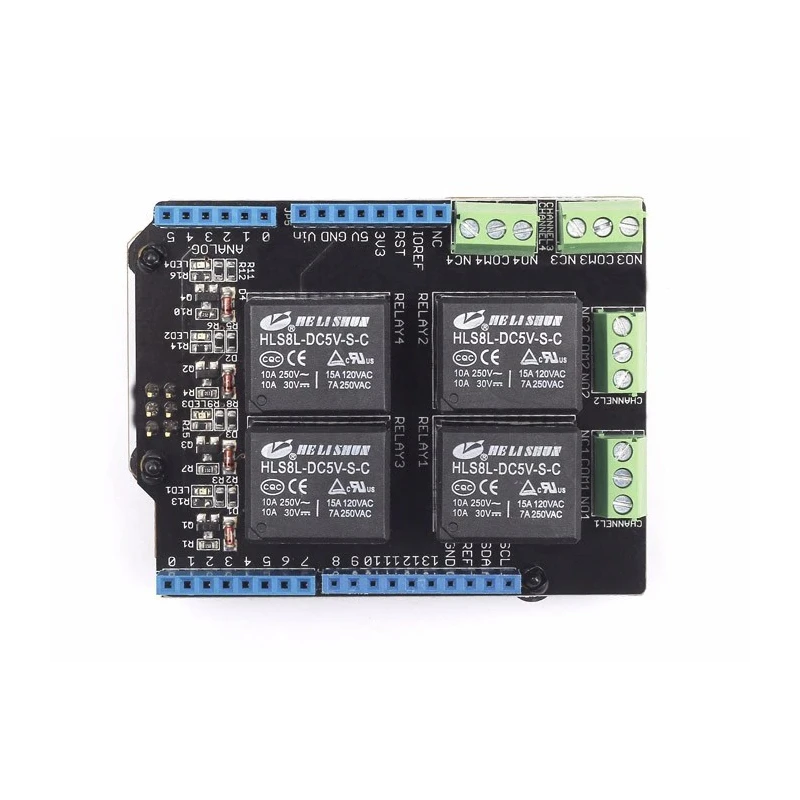

Seeed Studio Arduino Compatible Relay Shield with 4 High-Quality Relays 50VAC 30VDC 15A V3.0 103030009
Specifications
| Country of Origin | China |
|---|---|
| Brand | Seeed Studio |
| For Use With | Arduino/Seeeduino Shield |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 174-3234Brand: Seeed StudioManufacturers Part No.: 103030009Distrelec Article No.: 30069883 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Kit Classification | Relay Shield 3.0 |
| Revision | V3.0 |
| Seeed Studio Relay Shield V3.0RS Stock No. | 174-3234Brand: Seeed StudioManufacturers Part No.: 103030009Distrelec Article No.: 30069883 |
Key Features
- Compatible with Arduino and Seeeduino boards for embedded development.
- Operates on a supply voltage range of 4.75V to 5.25V with current ranging from 8mA to 250mA.
- Features four high-quality relays with NO/NC connection interfaces for flexible device control.
- Includes LED indicators for each relay to display ON/OFF status clearly.
- Supports switching voltage of 50VAC or 30VDC with a switching current of 15A AC and 7A DC.
- Relay switching power is rated at 70W with a switching frequency of 1Hz.
- Relay life cycle rated up to 100,000 cycles ensuring long-term durability.
- Equipped with relay screw terminals for secure connections.
Product Description
Seeed Studio 103030009 Relay Shield V3.0 is an Arduino compatible shield that provides four high-quality relays engineered to control high current loads safely and efficiently. This shield operates within a supply voltage range of 4.75V to 5.25V and supports current from 8mA up to 250mA, making it suitable for integration with Arduino and Seeeduino development boards.
The relay shield features NO (Normally Open) and NC (Normally Closed) interfaces, enabling versatile control for various electrical devices that cannot be directly operated via Arduino’s digital I/O pins. Four LED indicators provide visual feedback on each relay's ON/OFF status, enhancing usability during development and troubleshooting.
Each relay supports a switching voltage rating of 50VAC or 30VDC, with a switching current capacity of 15A AC and 7A DC respectively. The switching power of the relays is rated at 70W with a switching frequency of 1Hz. The relay’s life is rated for up to 100,000 cycles, ensuring reliability in continuous operation environments. The connections use relay screw terminals to secure wires firmly.
The module also incorporates ESD contact discharge protection up to ±4KV, improving durability and safety in static-prone environments.
This relay shield is widely used in embedded development, educational institutions, robotics, electronics laboratories, and automation projects. It offers a standardized Arduino Shield form factor, ensuring smooth and reliable integration with various Arduino-compatible boards.
Compatible with Arduino and Seeeduino boards. Four high-quality Relays with NO/NC interfaces. Supply voltage range of 4.75V to 5.25V with current 8mA to 250mA. Switching voltage rating of 50VAC/30VDC and current rating of 15A/7A.
LED indicators show relay ON/OFF status. Relay life of 100,000 cycles. ESD protection of ±4KV contact discharge. Relay screw terminals for secure wiring. Ideal for automation, robotics, and embedded development. Explore more Arduino compatible shields and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.75V to 5.25V.
The relay supports a maximum switching current of 15A for AC and 7A for DC.
This relay shield includes four high-quality relays.
The relays feature Normally Open (NO) and Normally Closed (NC) connection interfaces for flexible device control.
The relays have a life cycle rated for up to 100,000 cycles.
Yes, there are LED indicators for each relay that display the ON/OFF status clearly.
The relays support a switching voltage of 50VAC or 30VDC.
The switching power of the relays is rated at 70W.
The current consumption ranges from 8mA to 250mA.
It incorporates ESD contact discharge protection up to ±4KV, enhancing durability in static-prone environments.
It is compatible with Arduino and Seeeduino boards for embedded development.
The specific dimensions are not provided in the available data.
