Carlo Gavazzi Earth Leakage Relay 24, 240V AC, 50 to 60 Hz ±10% Frequency, 300 mA Leakage, Relay SPDT, 14 NO DEA71DM24A030

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi Earth Leakage Relay 24, 240V AC, 50 to 60 Hz ±10% Frequency, 300 mA Leakage, Relay SPDT, 14 NO DEA71DM24A030

Name: Carlo Gavazzi Earth Leakage Relay 24, 240V AC, 50 to 60 Hz ±10% Frequency, 300 mA Leakage, Relay SPDT, 14 NO DEA71DM24A030
Brand: Carlo Gavazzi
SKU: 108970
Price: 179.21 USD
Availability: InStock



Category Relays Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Italy
Frequency range	50 to 60 Hz ±10%
Output	Relay SPDT, 14 NO, 12 NC
Brand	Carlo Gavazzi
Height	81mm
Length	67.7mm
Model	DEA71DM24A030
IP Rating	IP20
Width	35.5mm
Mount Type	DIN Rail
Series	DEA71
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Input Voltage	24, 240V ac
Standards/Approvals	UL508, RoHS Directive, EN 62020, EN 60947-2 Annex M, CSA Standard C22.2 No. 14-10 - Industrial control equipment
Leakage Range	300 mA

Key Features

Operates at 50 to 60 Hz with ±10% frequency tolerance.
Detects leakage currents up to 300 mA with fixed trip level.
Features relay SPDT output with 14 normally open and 12 normally closed contacts.
Designed for DIN rail mounting with screw terminal connections.
Power consumption of 2.5 VA ensuring energy-efficient operation.
Robust IP20 rated enclosure for industrial use.
Wide operating temperature range from -25°C to 60°C.
Complies with UL508, RoHS Directive, EN 62020, EN 60947-2 Annex M, and CSA C22.2 No. 14-10 standards.

Product Description

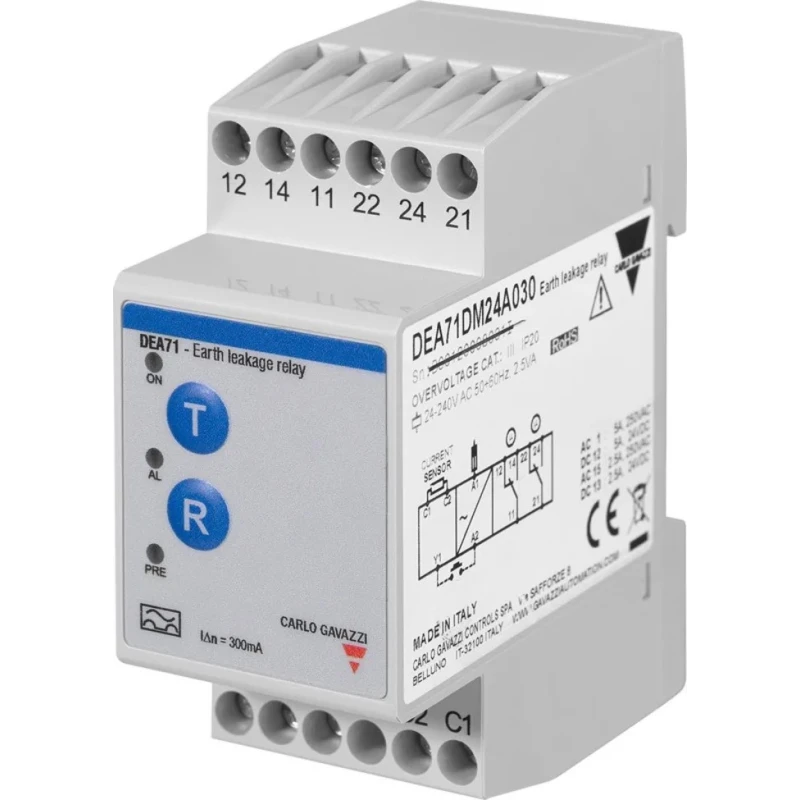

Carlo Gavazzi DEA71DM24A030 Earth Leakage Relay is a modular residual current monitoring device designed to detect insulation or grounding faults. Operating at 24 and 240V AC inputs and frequencies of 50 to 60 Hz with a ±10% tolerance, it provides essential protection for electrical systems by interrupting mains during leakage events.

The relay features a fixed leakage detection threshold set at 300 mA, enhancing safety without user-adjustable complexity. It includes two changeover relay outputs; one delivers a warning signal when leakage reaches 60% of the fault current setpoint, while the other activates system shutdown to prevent accidents.

This device is mounted on DIN rails and connected through screw terminals for secure installation in industrial control panels. Its compact size (67.7 mm length, 35.5 mm width, and 81 mm height) and IP20 rating make it suitable for varied manufacturing, automation, and electrical safety applications.

Designed for harsh industrial environments, the relay operates reliably within a temperature range of -25°C to 60°C and consumes only 2.5 VA of power. Compliance with multiple international standards, including UL508, RoHS Directive, EN 62020, and CSA standards, ensures its acceptance and reliability for safety-critical installations.

Operates at 50 to 60 Hz frequency with ±10% tolerance. Monitors leakage currents fixed at 300 mA threshold. Equipped with SPDT relay output possessing 14 NO and 12 NC contacts. DIN rail mounting and screw terminal type connections for installation.

Compact dimensions and IP20 protection rating for industrial environments. Wide operating temperature range from -25°C to 60°C for versatile applications. Power consumption rated at 2.5 VA for efficient operation. Standards compliance includes UL508, RoHS, EN 62020, EN 60947-2 Annex M, and CSA C22.2 No. 14-10.

Manufactured in Italy ensuring premium quality and durability.

This Carlo Gavazzi earth leakage relay is ideal for use in electrical, manufacturing, automation, and industrial safety systems to minimize hazards associated with earth faults and insulation failures. Browse EnvMart for more Carlo Gavazzi Relays and related electrical components.
