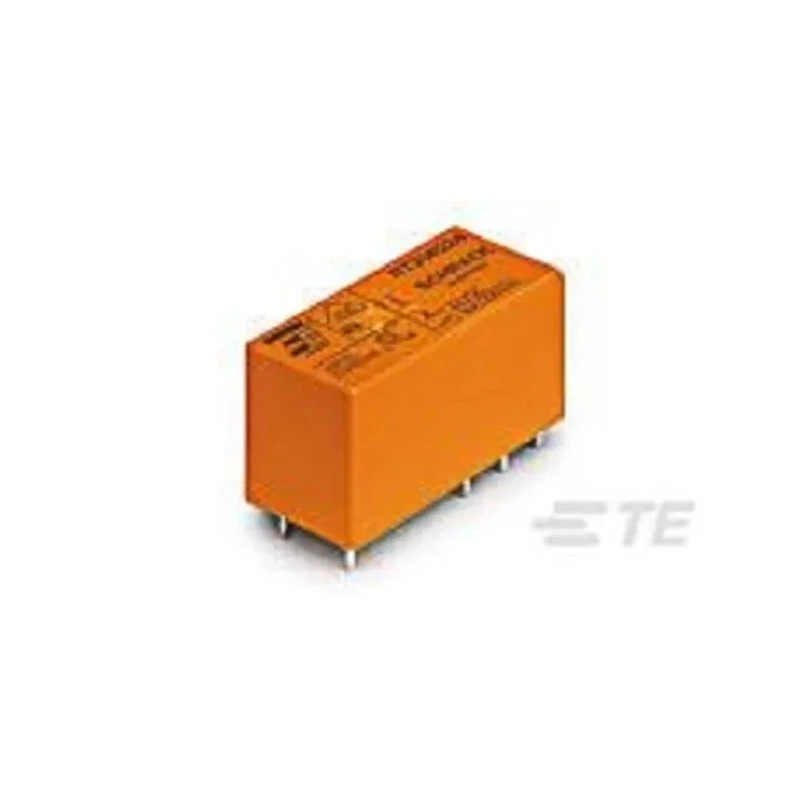

TE Connectivity PCB Monostable Relay, 12V DC Coil, 16A Switching Current, SPST Contact Configuration, Silver 6-1393238-2
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Features a single-pole single-throw (SPST) contact configuration.
- Constructed with silver alloy contact material for reliable conductivity.
- Suitable for operating temperatures ranging from -40°C to 85°C.
- Coil power consumption is rated at 400mW with a coil resistance of 100Ω.
- Compact dimensions of 20mm length, 10mm width, and 15mm height.
- Supports switching voltages of 30V DC and 250V AC.
- Designed for solder terminal type and PCB mount type for secure installation.
- Complies with RoHS and UL standards ensuring quality and compliance.
Product Description
TE Connectivity 6-1393238-2 PCB Monostable Relay is an industrial-grade power relay designed for printed circuit board integration, featuring a 12V DC coil and capable of handling a switching current of 16A with SPST contact configuration.
This relay utilizes high-quality silver alloy contacts to ensure superior electrical conductivity and durability. The device operates reliably within a wide ambient temperature range from -40°C to 85°C, making it suitable for various industrial, automation, and electrical applications.
The relay's coil power rating is 400mW with coil resistance of 100Ω, optimized for efficient power consumption. It supports switching voltages of up to 30V DC and 250V AC, allowing versatile use cases in signal conditioning and power relay circuits.
Compactly sized at 20mm in length, 10mm in width, and 15mm in height, this PCB-mounted relay uses solder terminals for secure electrical connections. It meets international compliance standards including RoHS and UL for safety and performance assurance.
Single-pole single-throw (SPST) contact configuration. Silver alloy contact material for enhanced conductivity. Wide operating temperature range: -40°C to 85°C. 400mW coil power with 100Ω coil resistance. Switching voltages of 30V DC and 250V AC supported.
PCB mount type with solder terminals for stability. Certified RoHS and UL compliant.
This relay is ideal for industrial automation, electrical control systems, manufacturing environments, HVAC applications, and other commercial circuit designs requiring reliable power relay switching.
Explore more high-quality Relays and electrical components at EnvMart for your industrial and professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 12V DC.
This relay can handle a maximum switching current of 16A.
The dimensions are 20mm in length, 10mm in width, and 15mm in height.
It features a single-pole single-throw (SPST) contact configuration.
The contacts are constructed with silver alloy material for reliable conductivity.
This relay operates within a temperature range of -40°C to 85°C.
It is designed for PCB mounting with solder terminals.
It supports switching voltages of up to 30V DC and 250V AC.
The coil power consumption is rated at 400mW.
The coil resistance is 100Ω.
Yes, it complies with RoHS and UL standards.
The contact resistance is 50mΩ.
