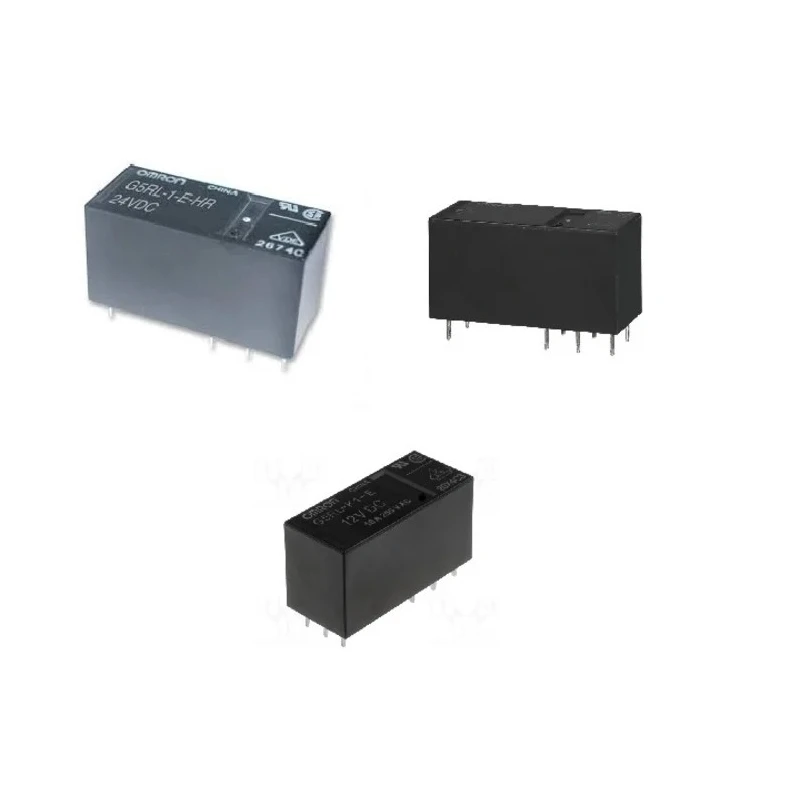

Omron PCB Relay 5V DC Coil 16A Switching Current SPDT G5RL-1-E-HR DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 750mW |
Key Features
- Designed for PCB mounting with solder terminals.
- Coil resistance is 62.5 ohms with coil power consumption of 750mW.
- Switching capabilities include 24V DC and 24V AC voltages.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height.
- Operates reliably from -40°C to 85°C ambient temperature.
- Silver alloy contacts for enhanced conductivity and durability.
- Contact resistance rated at 100 milliohms for efficient switching.
- Compliance with RoHS standards ensures environmental safety.
Product Description
Omron G5RL-1-E-HR DC5 PCB Relay is a high-quality power relay designed for precise switching applications utilizing a 5V DC coil and single pole double throw (SPDT) contacts supporting a 16A switching current.
The relay offers solder terminal mounting on printed circuit boards, featuring a coil resistance of 62.5Ω and coil power consumption of 750mW to ensure efficient operation. It supports switching voltages of 24V DC and 24V AC, making it versatile for diverse electrical and automation systems.
The robust silver alloy contacts provide excellent conductivity and reduce contact resistance to about 100 milliohms, enhancing device reliability and longevity. Its compact form factor measuring 29mm in length, 12.7mm in width, and 15.7mm in height allows integration into space-constrained assemblies.
The relay performs reliably in ambient temperatures ranging from -40°C to 85°C and adheres to RoHS environmental standards, making it compliant for global industrial applications. Designed for PCB mounting with solder terminals for secure integration.
5V DC coil voltage with 62.5Ω resistance and 750mW coil power. Supports SPDT contact configuration with 16A switching capacity. Switching voltage ratings: 24V DC and 24V AC suitable for control circuits. Silver alloy contacts ensure durable and efficient operation.
Compact size fits tight spaces in industrial automation systems. Wide operating temperature range from -40°C to 85°C. Compliant with RoHS standards for environmental safety. Low contact resistance of 100 milliohms improves performance.
This relay is ideal for use in industrial automation, electrical control panels, manufacturing machinery, HVAC controls, and other applications requiring reliable switching components.
Shop with confidence and explore similar high-performance power Relays in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various electrical applications.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for compact integration into devices.
It operates with a coil voltage of 5V DC and has a coil resistance of 62.5Ω.
The relay supports switching voltages of 24V DC and 24V AC, making it versatile for different applications.
This relay features a single pole double throw (SPDT) contact configuration, allowing for flexible switching options.
The contact resistance is rated at 100 milliohms, which helps in efficient switching performance.
It operates reliably in ambient temperatures ranging from -40°C to 85°C, suitable for various environments.
The relay is designed for PCB mounting with solder terminals, ensuring secure integration into circuit boards.
The contacts are made from silver alloy, which enhances conductivity and durability in operation.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The coil power consumption for this relay is 750mW, which contributes to its efficient operation.
This relay is ideal for use in industrial automation, electrical control panels, and HVAC controls, among other applications.
