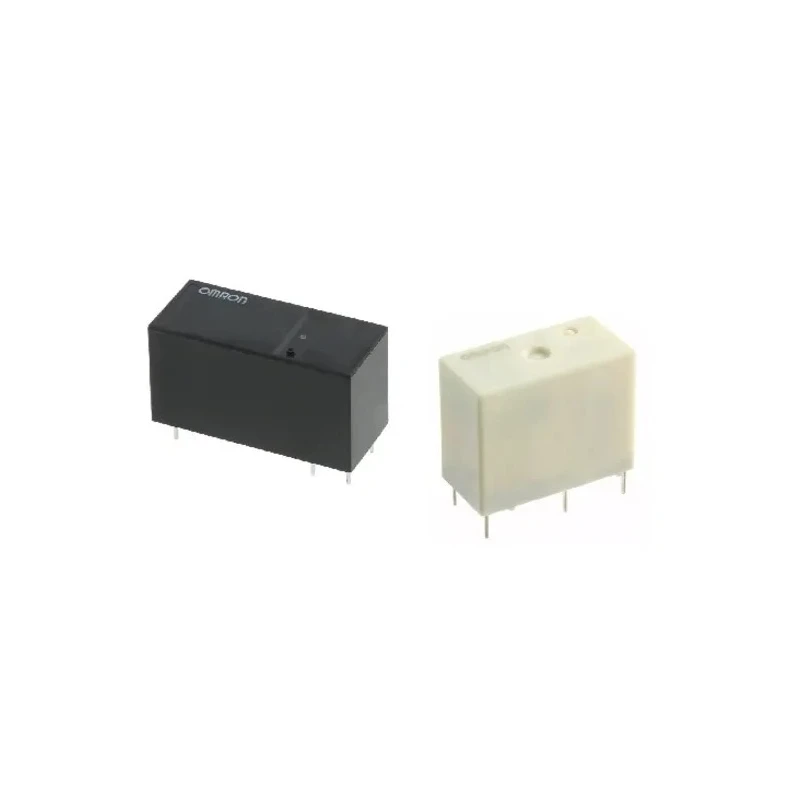

Omron PCB Power Relay 12V dc Coil 2A Switching Current DPDT G6A-274P-ST-US DC12

Omron G6A-274P-ST-US DC12 PCB Power Relay is engineered for efficient switching applications requiring a 12V DC coil voltage and a maximum switching current of 2A. This compact DPDT configuration relay is built for PCB mounting, featuring PCB pin terminals to facilitate secure and reliable circuit integration. It has a coil resistance of 720 ohms and coil power consumption of 200 mW, ensuring low power usage during operation.

Designed with silver alloy gold-plated contacts, the relay offers excellent electrical conductivity and dependable switching performance while minimizing contact resistance of 50 milliohms. The relay supports AC switching voltages up to 125V and DC switching voltages up to 30V, making it versatile for varied industrial and commercial control systems.

Operating temperature range from -40°C to 70°C allows this relay to function reliably in demanding environments. The compact form factor with dimensions 50 mm length, 15 mm height, and 10 mm width allows it to fit easily into tight spaces on printed circuit boards.

This model is compliant with UL and C-UL certifications, ensuring adherence to quality and safety standards for power relays. Manufactured in Japan, it ensures premium build quality and durability.

Typical use cases for this power relay include automation systems, electronic control circuits, signal switching, and industrial equipment control applications demanding a robust, low-profile, and efficient relay solution.

The relay coil voltage is specified at 12V DC. It is designed for PCB mounting with PCB pin terminals. Switching current capacity is rated at 2 amperes. Operating temperature range extends from -40°C to 70°C for versatile applications.

Contact material is silver alloy with gold plating for enhanced conductivity and durability. Coil resistance is 720 ohms, consuming 200 milliwatts of power. The relay has dimensions 50mm length, 15mm height, and 10mm width for compact installation.

UL and C-UL certifications ensure compliance with industrial standards. Explore the wide range of precision Relays and power relay products on EnvMart for industrial-grade automation and electrical system solutions.
