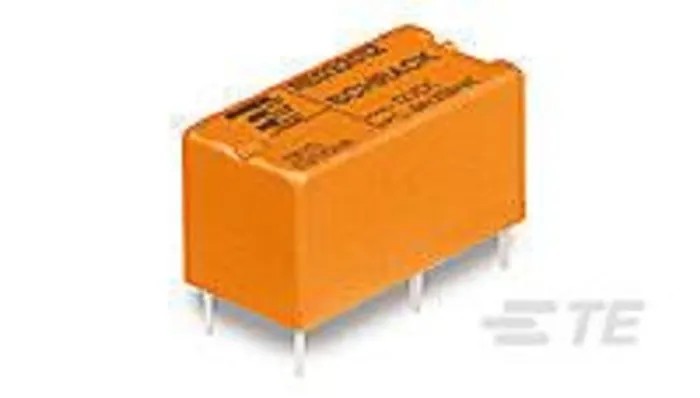

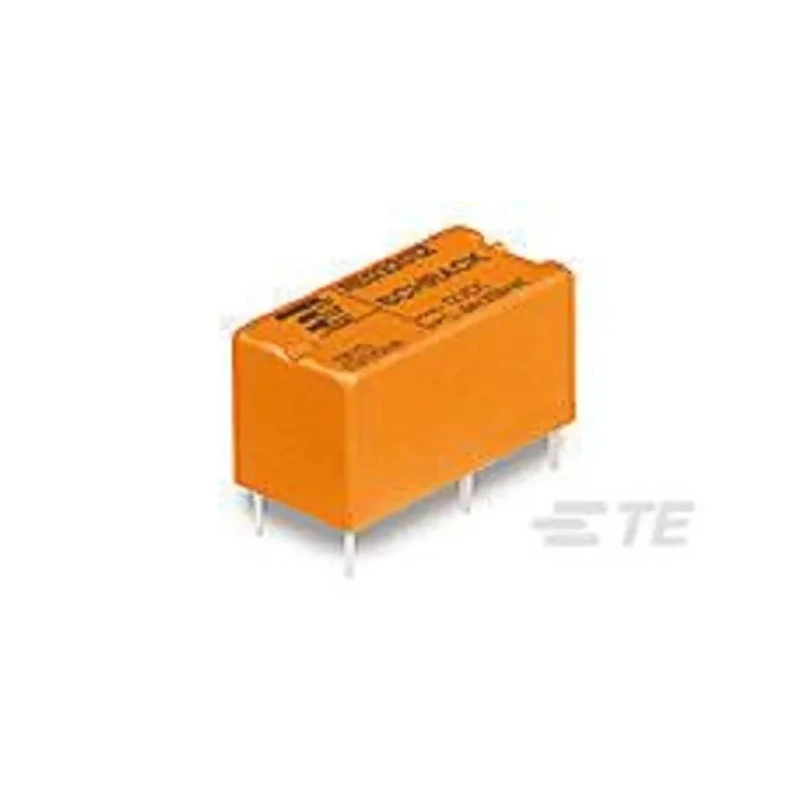

TE Connectivity PCB Monostable Relay, 5V DC Coil, 6A Switching Current, SPST 2-1416010-3

TE Connectivity 2-1416010-3 PCB Monostable Relay is a high-quality power relay designed for printed circuit board mounting applications. Featuring a 5V DC coil and a switching current capacity of 6A, this SPST relay is engineered for reliable and efficient switching in various electrical circuits.

The relay supports both AC and DC switching, handling AC voltages up to 250V and DC voltages up to 30V, making it suitable for diverse industrial, automation, and electrical systems. Its operating temperature range from -40°C to 85°C allows deployment in harsh environmental conditions.

Constructed with silver alloy contacts, it ensures low contact resistance of 50mΩ and long service life. The coil resistance is 100 Ohms with a coil power of 400mW, promoting energy efficiency and minimal heat generation during operation.

Compact in size, with dimensions of 20mm length, 10mm width, and 15mm height, the relay fits easily into space-constrained PCB designs. The mounting type is PCB with solder terminals for firm and secure connections.

This relay complies with stringent UL and RoHS standards, ensuring environmental safety and product reliability. It incorporates a tracking index of PTI250, enhancing insulation properties to prevent electrical tracking.

Weighing approximately 6 grams, the relay is lightweight yet robust, made in the Czech Republic to meet high manufacturing standards. Ideal for industrial automation, electronic equipment, control panels, HVAC systems, and power management applications.

Designed for PCB mounting with solder terminal type for secure installation. Capable of switching AC voltage up to 250V and DC voltage up to 30V. Operates efficiently within the temperature range of -40°C to 85°C. Constructed with silver alloy contact material for high conductivity.

Compact dimensions of 20mm length, 10mm width, and 15mm height for space-saving applications. Coil resistance of 100 Ohms and coil power rating of 400mW ensures low power consumption. Compliant with UL and RoHS standards to meet safety and environmental requirements.

Tracking index of relay base PTI250 for insulation quality. Weight of approximately 6 grams conducive for lightweight PCB designs. Explore more from TE Connectivity and similar power Relays available at EnvMart to find the best fit for your industrial and automation needs.
