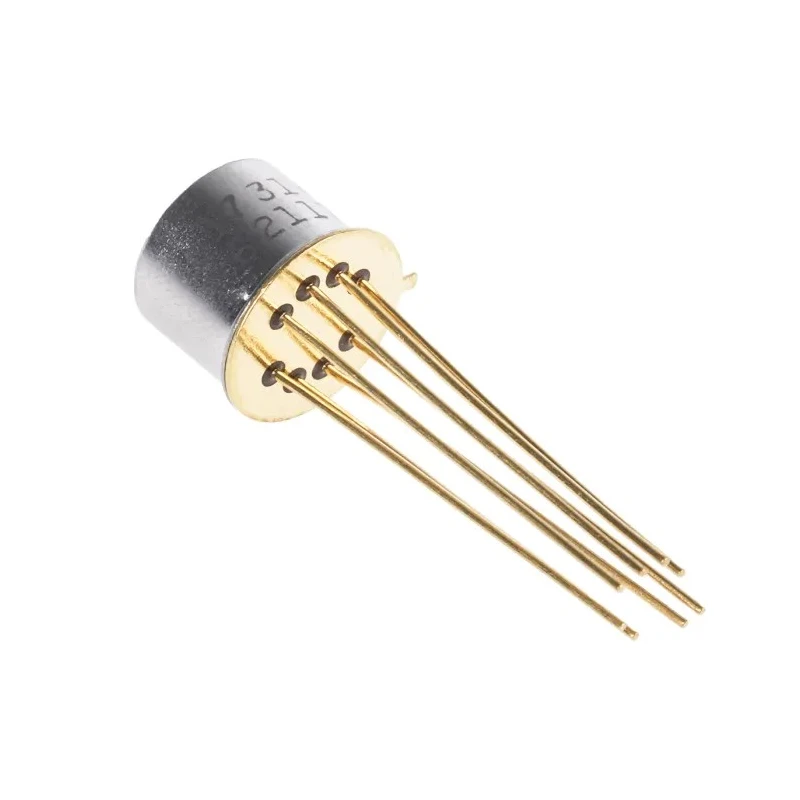

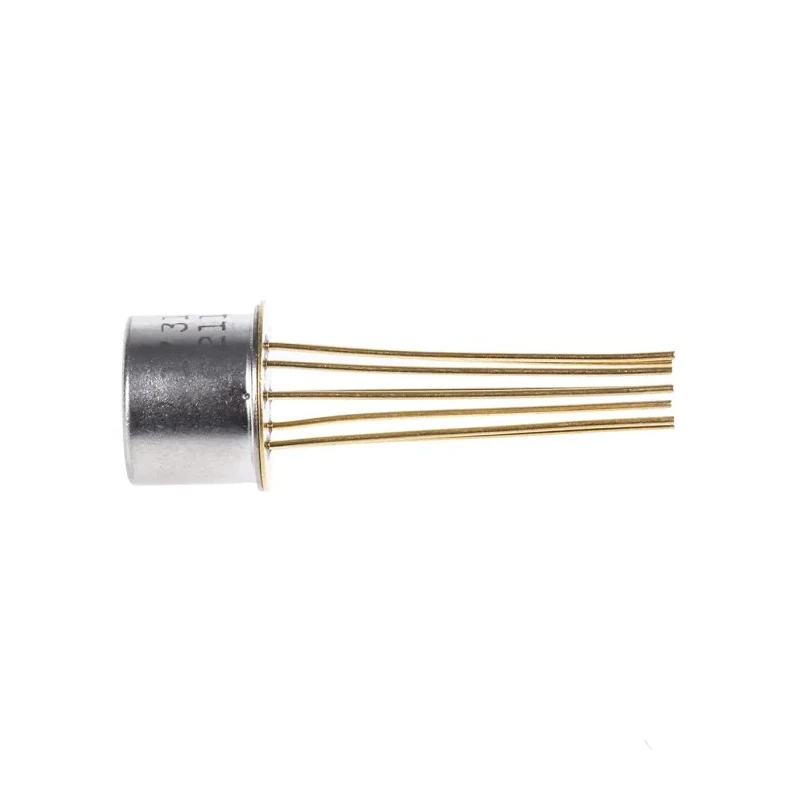

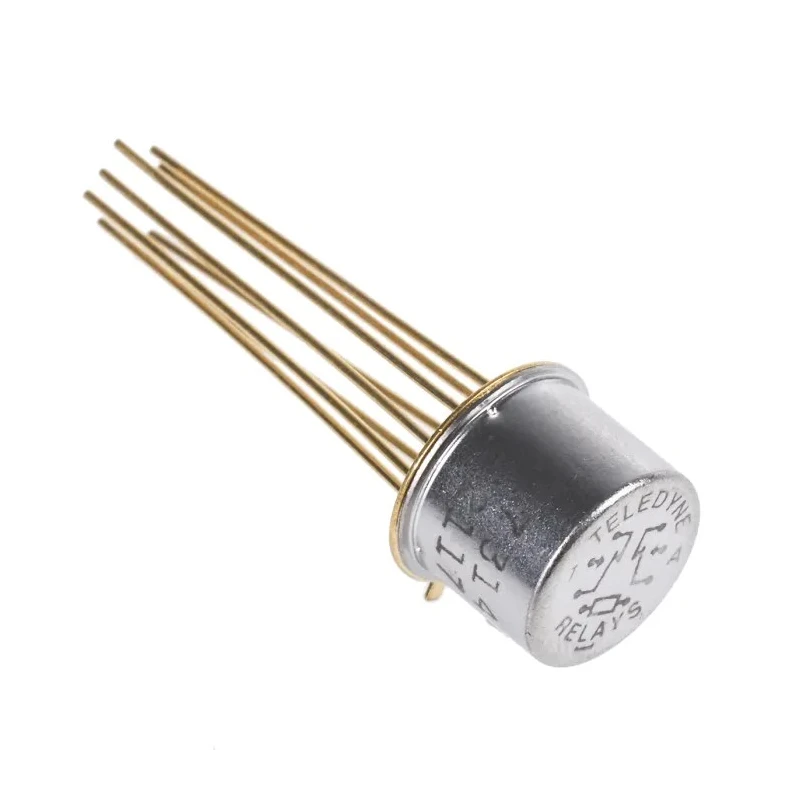

Teledyne Through Hole RF Relay, 12V DC Coil, DPDT, Gold Plated Contacts, 1A Contact Current 712-12

Teledyne 712-12 Through Hole RF Relay is a compact, DPDT RF relay designed for printed circuit boards. It features a 12V DC coil with a coil resistance of 390 ohms and a power of 450mW, enabling low power consumption while ensuring robust coil actuation.

The relay delivers a contact current rating of 1A with gold-plated contacts that provide low contact resistance of 150 milliohms. Its hermetically sealed design ensures high reliability and excellent resistance to environmental extremes, including shock and vibration.

With an operating temperature range from -55°C to 85°C and a compact footprint measuring 9.4mm in length and 6.99mm in height, this relay is ideal for applications where PCB space is limited but reliable RF switching is required.

The low profile and unique construction make it suitable for RF applications up to 1 GHz, such as handheld radio transceivers and other communication devices where reduced size and excellent switching performance are critical.

Coil resistance: 390Ω for efficient coil operation. Contact resistance: 150mΩ to minimize signal loss. DPDT contact configuration for flexible circuit switching. Through-hole mount for secure PCB attachment. Gold plated contacts for enhanced durability and corrosion resistance.

Operating temperature range: -55°C to 85°C for wide environmental suitability. Coil power consumption of 450mW for energy efficiency. Hermetically sealed to protect against dust and moisture. Meets RoHS standards and ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 certifications.

This Teledyne RF relay is excellent for industrial, commercial, laboratory, and communication equipment requiring high performance and reliability in RF signal switching. Explore more advanced relay solutions in the EnvMart Electronics & Electricals Relays category to find products tailored for your application needs.
