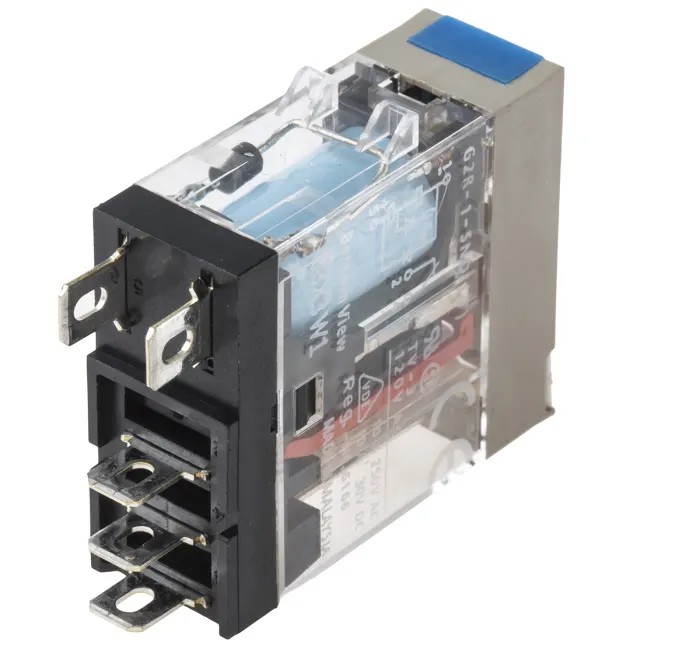

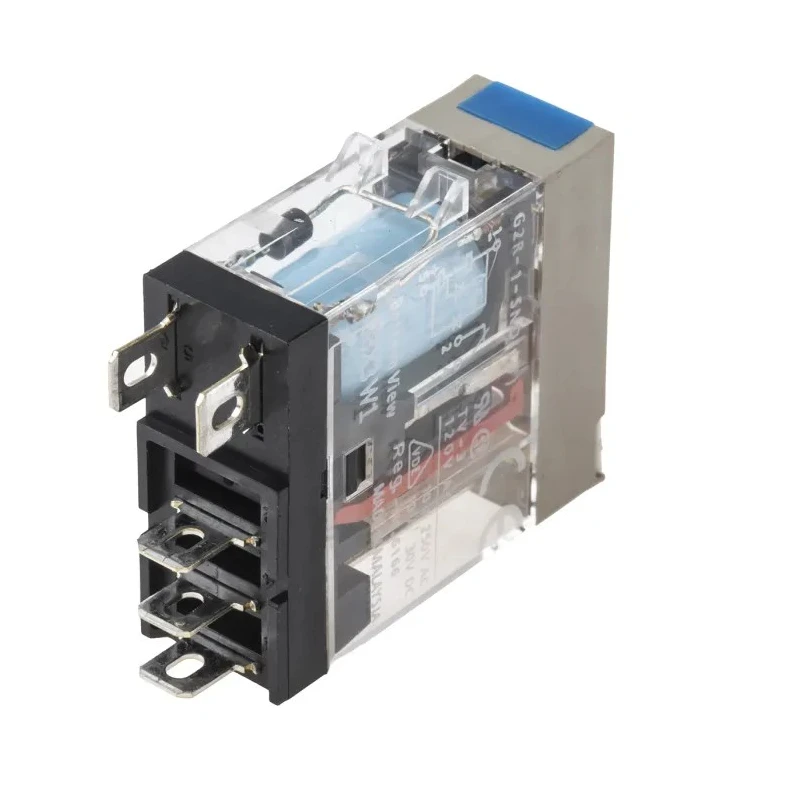

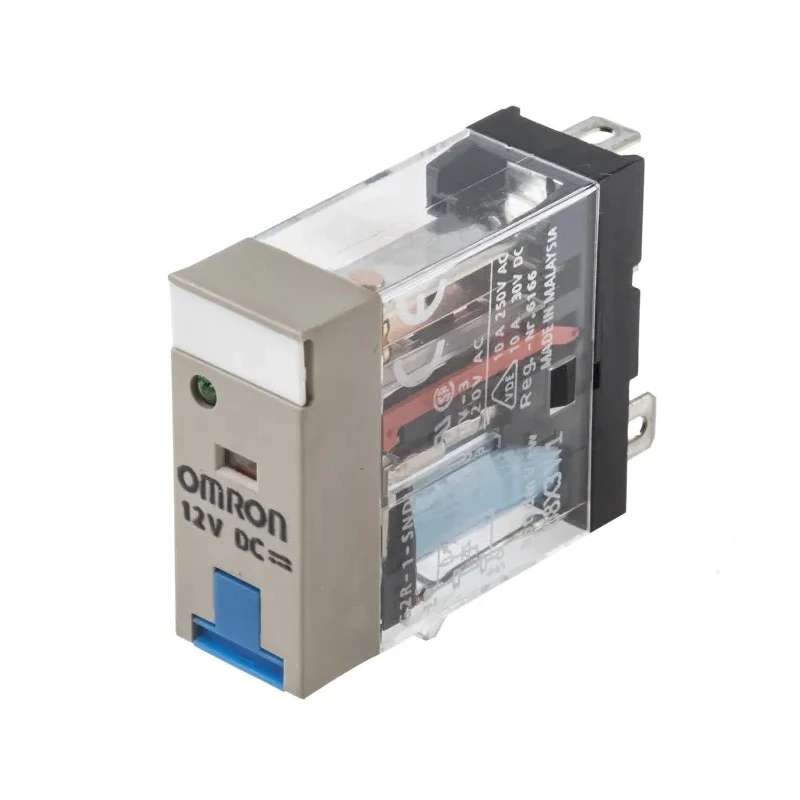

Omron PCB Non-Latching Relay, 12V DC Coil, 10A Switching Current, SPDT G2R-1-SNDI 12VDC (S)

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Non-Latching Relay, 12V DC Coil, 10A Switching Current, SPDT G2R-1-SNDI 12VDC (S)

Name: Omron PCB Non-Latching Relay, 12V DC Coil, 10A Switching Current, SPDT G2R-1-SNDI 12VDC (S)
Brand: Omron
SKU: 119251
Price: 14.61 USD
Availability: InStock



Category Relays Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	40.5mm
Length	29mm
Model	G2R-1-SNDI 12VDC (S)
Width	13mm
Mount Type	PCB
Series	G2R
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	Quick Connect
Standards/Approvals	CSA, CE
Coil Resistance	278Ω
Coil Voltage	12V dc
Switching DC Voltage	125V dc
Switching AC Voltage	440V ac
Coil Power	530mW

Key Features

SPDT contact configuration allows versatile circuit control applications.
12V DC coil voltage compatible with low voltage systems.
Quick connect terminals enable easy and secure installation.
Maximum switching power of 2.5 kVA ensures high performance.
Compact dimensions (40.5mm height, 29mm length, 13mm width) save PCB space.
Coil resistance of 278 ohms enhances energy efficiency.
Wide operating temperature range from -40°C to 70°C for diverse industrial environments.
Switching AC voltage up to 440V AC and DC voltage up to 125V DC supported.

Product Description

Omron G2R-1-SNDI 12VDC (S) is a robust PCB-mount Non-Latching Relay featuring a 12V DC coil and a 10A switching current capacity with a SPDT contact configuration. This relay meets the high switching demands of industrial automation, control panels, HVAC equipment, and electronic control systems. Its quick connect terminals facilitate efficient installation, and its compact size makes it ideal for integration on densely populated printed circuit boards.

The relay supports a maximum switching power of 2.5 kVA, with switching capacities of up to 125V DC and 440V AC, making it suitable for varied high power applications. Designed for durability, it operates across a wide temperature range from -40°C to 70°C, ensuring reliability in harsh industrial environments. The coil's high resistance of 278 ohms aids in minimizing power consumption.

Compliant with CSA and CE standards, this relay ensures operational safety and quality performance. The G2R series is widely used in automated manufacturing, industrial machinery, HVAC systems, and general electrical equipment requiring dependable and efficient relay switching solutions.

SPDT contact configuration allows versatile circuit control applications. 12V DC coil voltage compatible with low voltage systems. Quick connect terminals enable easy and secure installation. Maximum switching power of 2.5 kVA ensures high performance.

Compact dimensions (40.5mm height, 29mm length, 13mm width) save PCB space. Coil resistance of 278 ohms enhances energy efficiency. Wide operating temperature range from -40°C to 70°C for diverse industrial environments.

Switching AC voltage up to 440V AC and DC voltage up to 125V DC supported. Certified to CSA and CE standards for guaranteed safety and quality.

This Omron PCB Non-Latching Relay is ideal for industrial automation, control panels, manufacturing, HVAC systems, and other electronic applications requiring reliable relay functions. Explore our extensive range of Omron Relays and components on EnvMart for your engineering and manufacturing needs.
