TE Connectivity High Frequency PCB Relay 5V DC Coil, SPDT, 2A Contact Current, Gold Plated Contacts 1462050-2

Free Delivery in India | Lowest Global Shipping Charges

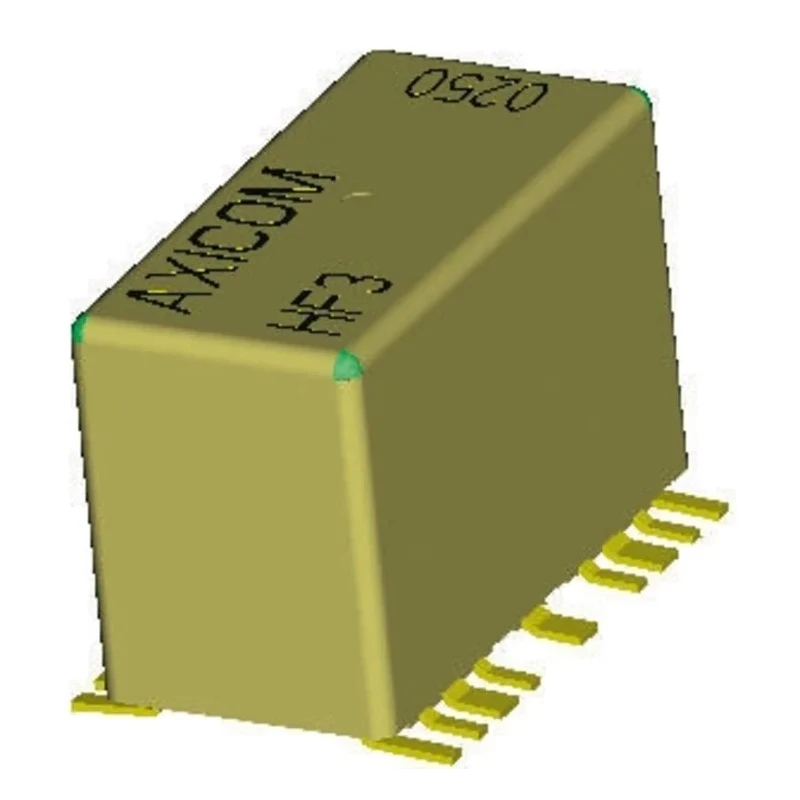

TE Connectivity High Frequency PCB Relay 5V DC Coil, SPDT, 2A Contact Current, Gold Plated Contacts 1462050-2

Name: TE Connectivity High Frequency PCB Relay 5V DC Coil, SPDT, 2A Contact Current, Gold Plated Contacts 1462050-2
Brand: TE Connectivity
SKU: 128186
Price: 14.31 USD
Availability: InStock



Category Relays Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	10mm
Length	14.6mm
Mount Type	PCB
Contact Material	Gold Plated
Maximum Operating Temperature	85°C
Coil Type	Monostable
Contact Configuration	SPDT
Terminal type	Solder
Contact Resistance	178Ω
Standards/Approvals	RoHS, REACH
Coil Resistance	178Ω
Coil Power	140mW
Contact Current	2A

Key Features

Supports AC contact current rating of 2 amperes for reliable switching.
Features monostable coil with coil resistance of 178 ohms and power consumption of 140 milliwatts.
Compact form factor with dimensions 14.6mm length, 7.2mm width, and 10mm height.
Suitable for frequencies from DC up to 3 GHz, providing low VSWR of 1.45 dB.
Gold plated contacts ensure long-term durability and low contact resistance.
Designed for PCB solder mounting applications with plastic sealed SMT construction.
Operating temperature up to 85 degrees Celsius for industrial environments.

Product Description

TE Connectivity 1462050-2 PCB High Frequency Relay operates at 5V DC coil voltage and 2A contact current, designed for high-frequency signal switching applications in electronics and electrical automation.

This relay belongs to the HF3 Series, suitable for 50 Ohm impedance systems commonly used in RF and communications applications. It supports frequency range from DC up to 3 GHz with very low Voltage Standing Wave Ratio (VSWR) of 1.45 dB, ensuring minimal signal loss.

The relay features a single pole double throw (SPDT) contact configuration with gold plated contacts for enhanced conductivity and durability. Coil resistance is 178 ohms and coil power consumption is only 140 mW, contributing to energy-efficient operation.

Its compact dimensions of 14.6 mm length, 7.2 mm width, and 10 mm height allow easy integration on printed circuit boards with solder mounting. This monostable type relay with SMT plastic-sealed construction is RoHS and REACH compliant, meeting environmental standards for electronics components.

Supports 2A AC contact current for reliable switching performance. Maximum operating temperature rating of 85°C suitable for industrial use. Gold plated contacts provide reliable long-term operation with low resistance. Impedance of 50Ω and 75Ω models available for different RF system needs.

Low power coil rated at 140mW for efficient control circuitry design.

Ideal for use in industrial electronics, automation systems, telecommunications equipment, RF modules, and laboratory instrumentation where high-frequency switching reliability is critical.
