Digital Process ORP Probe Gold Sensor PTFE Junction PVDF Body, 25m, RS485, HI2000 Series | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-25m (82.0')

Name: Hanna HI2000 Series Digital Process ORP Probes-Gold-PTFE-25m (82.0')
Brand: Hanna
SKU: 72343
Price: 944.95 USD
Availability: InStock



Category ORP Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	±2000 mV
Body Material	PVDF

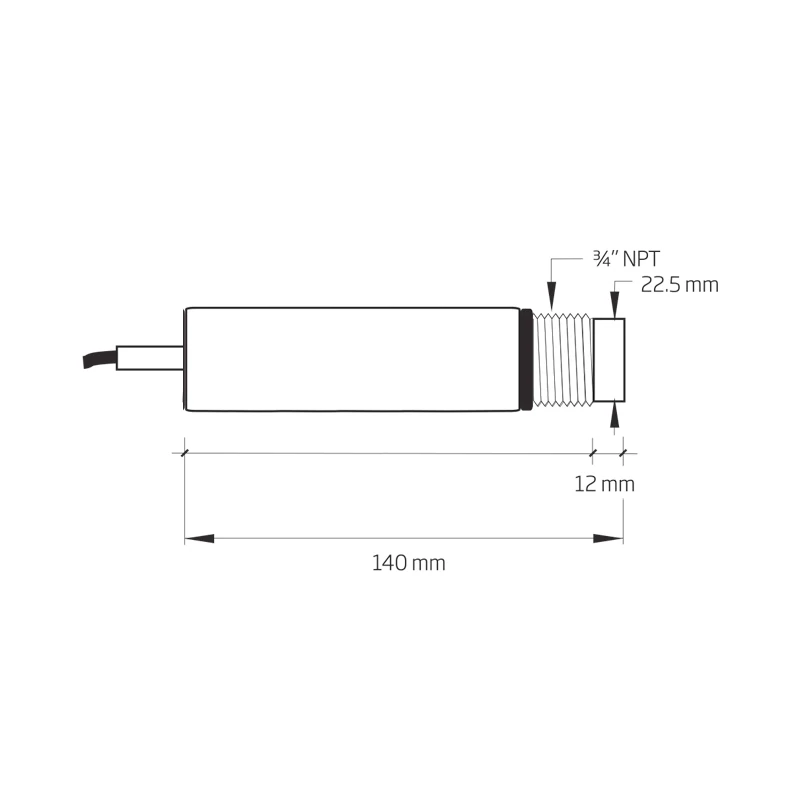

Outer Diameter	22.5 mm
Cable Length	25 m
Temperature Sensor	Integrated PT100
Max. Pressure	6 bar
Connector Type	Direct wire connection
Type of Electrolyte	polymer

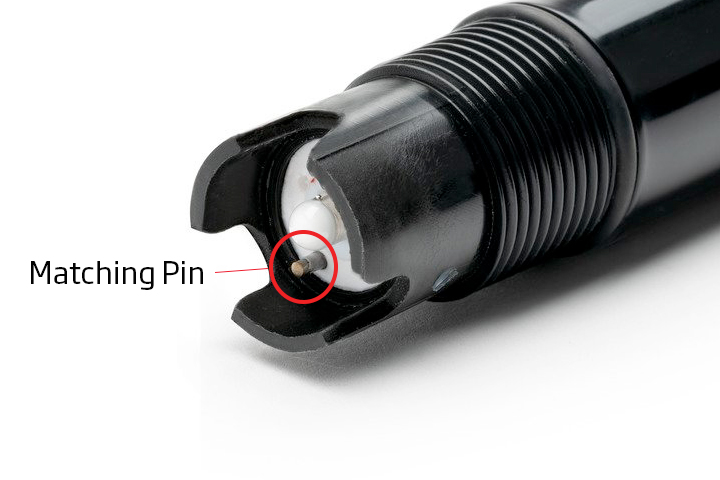

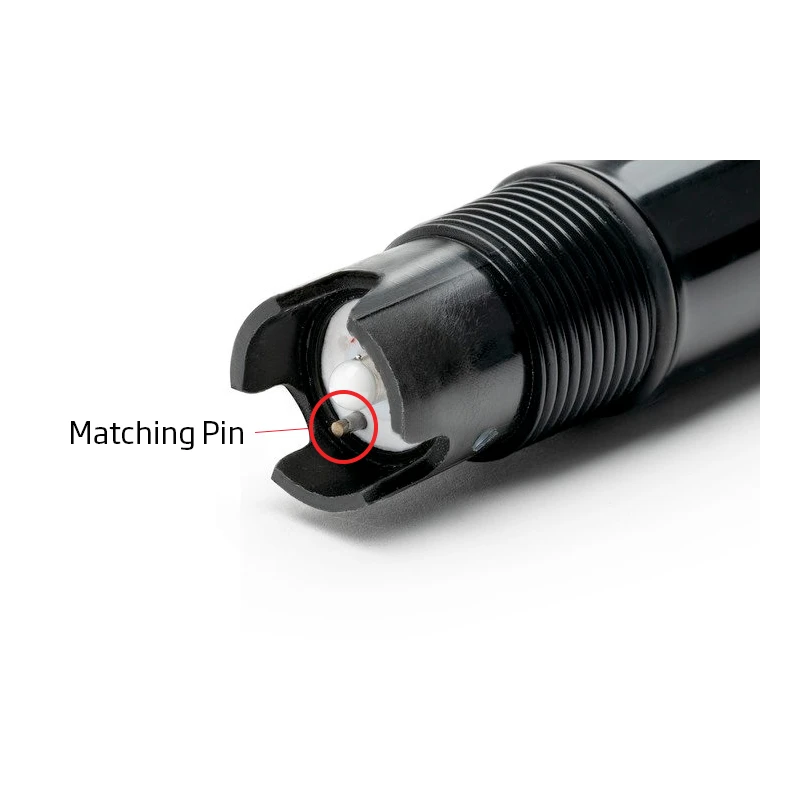

Matching Pin	yes
Body Length/Overall Length	140 mm
Operating environment	-5 to 100 °C
Sensor Material	Gold
Product Condition	New
Reference Junction	PTFE, Double Junction

Key Features

Digital process ORP probe with gold sensor, PTFE junction, PVDF body, and 25m cable for industrial applications.

Suitable for monitoring and control applications in industrial environments.
Features a gold sensor and chemically resistant PTFE junction for high durability.
Integrated PT100 temperature sensor for accurate measurements.
RS485 digital output ensures robust data transmission and automatic device detection.
PVDF body with 3/4 in. NPT threading supports in-line or submersion installation.
Double junction design enhances chemical resistance and probe longevity.
Wide measurement range of ±2000 mV for various process requirements.
Operates in environments from -5 to 100 °C and up to 6 bar (87 psi) pressure.
Direct wire connection allows secure and watertight installation.
Compatible with HI510 Universal Process Controller and other RS485 systems.

Product Description

The HI2000 Series Digital Process ORP Probe offers advanced monitoring capabilities for industrial control applications. Featuring a gold sensor with a PTFE (Polytetrafluoroethylene) reference junction, this probe is specifically engineered for challenging chemical environments requiring long-term performance and resistance to fouling or clogging. Its PVDF (polyvinylidene fluoride) body provides exceptional chemical resistance, while the integrated PT100 temperature sensor enables accurate, temperature-compensated readings.

This digital ORP probe transmits data over RS485 for reliable communication and automatic probe detection in industrial settings.
The 3/4 in. NPT threaded mounting allows for flexible in-line or submersion installation using standard holders.
The double junction with polymer electrolyte and PTFE junction minimizes contamination and increases probe lifespan.
Wide operating range suitable for water treatment, laboratory, manufacturing, food processing, chemical dosing, and industrial automation.
Supports real-time monitoring with ±2000 mV measurement span, high pressure tolerance (up to 6 bar), and operation from -5 to 100 °C.
25-meter (82 ft) direct-wire cable simplifies installation across large process sites.

Typical industrial use cases include water treatment plants, process automation in chemical and pharmaceutical manufacturing, dosing control systems, and laboratory measurement systems. The probe is fully compatible with HI510 Universal Process Controller and similar RS485 devices.
