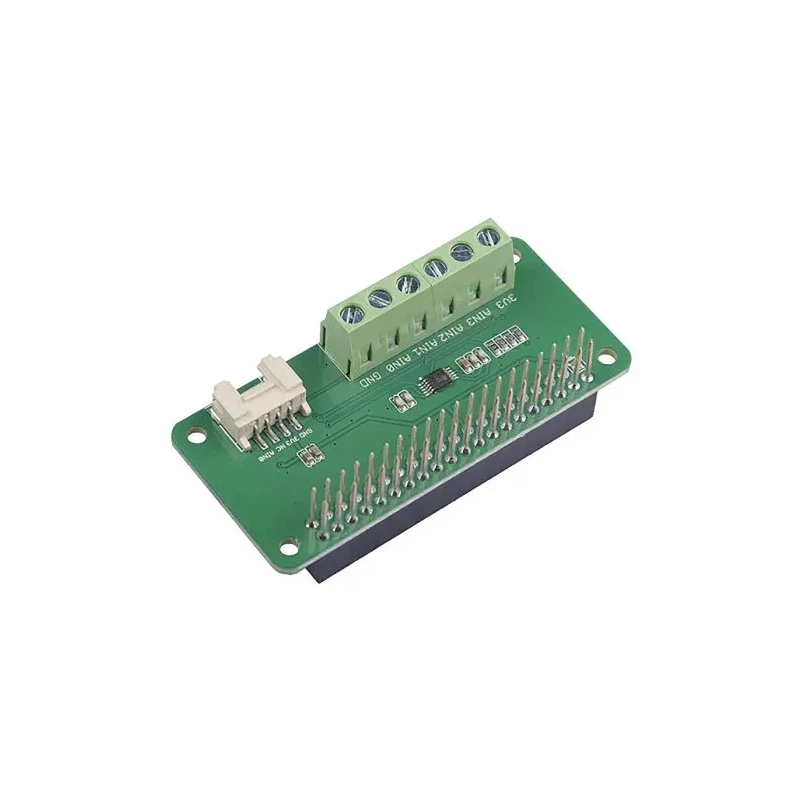

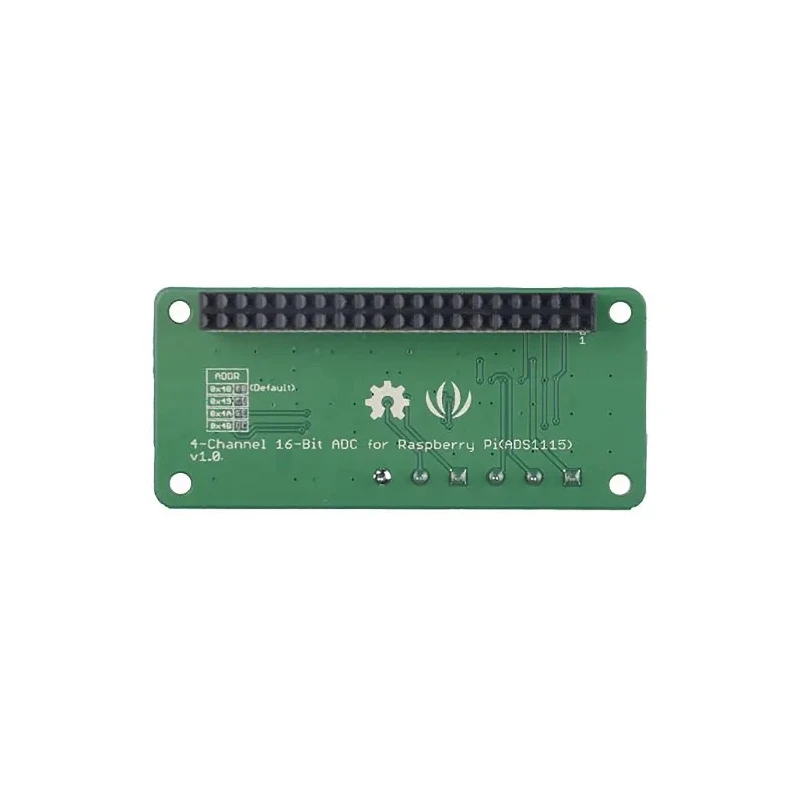

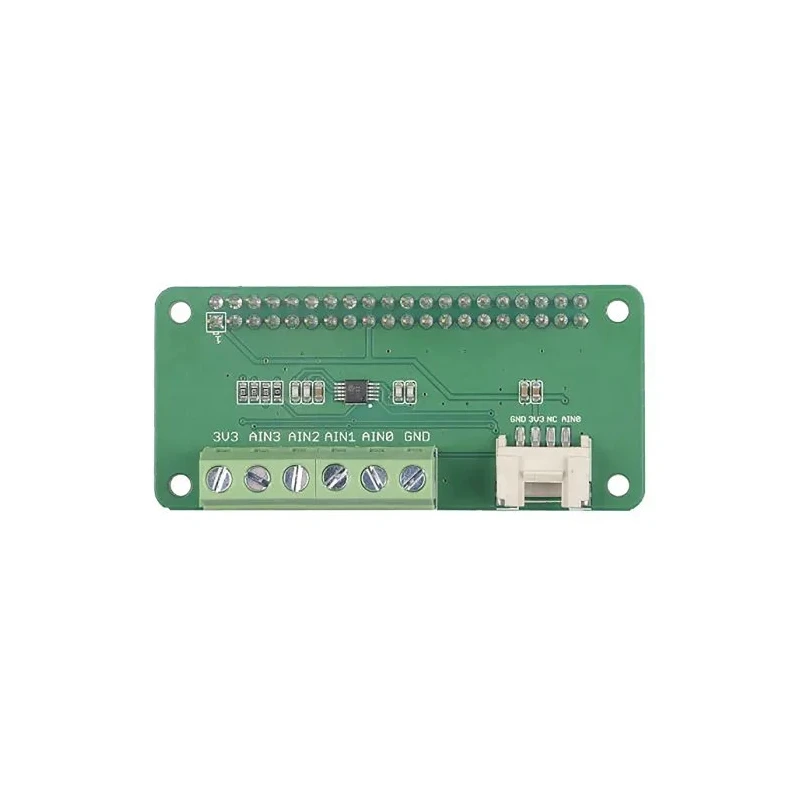

Seeed Studio 4 Channel 16 Bit ADC Interface Add on Board for Raspberry Pi 103030279
Specifications
| Country of Origin | China |
|---|---|
| Brand | Seeed Studio |
| Form Factor | Addon |
| Accessory Category | Interface |
| Continuous Mode | Only 150μA |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 188-7103Brand: Seeed StudioManufacturers Part No.: 103030279 |
| Single-Shot Mode | Auto Shut-Down |
Key Features
- Supports Raspberry Pi 3B, 3B+, and 4 models for broad compatibility.
- I2C-compatible serial interface ensures easy connectivity and integration.
- Low current consumption with only 150μA in continuous mode for energy efficiency.
- Features auto shut-down in single-shot mode to save power in idle states.
- Includes internal low-drift voltage reference and oscillator for stable operation.
- Input multiplexer supports two differential or four single-ended inputs increasing flexibility.
- Programmable comparator enhances signal processing capabilities.
- Ideal for applications in portable instrumentation and battery monitoring.
Product Description
Seeed Studio 103030279 4 Channel 16 Bit ADC Interface Add on Board is designed as a reliable Raspberry Pi Add-On that delivers accurate analog-to-digital conversion with 16-bit resolution. Utilizing a low current I2C serial interface, this add-on provides efficient performance with power consumption as low as 150μA in continuous mode and an auto shut-down feature in single-shot mode to conserve energy.
It supports Raspberry Pi models 3B, 3B+, and 4, making it versatile for various development and educational projects. The internal low-drift voltage reference and oscillator help maintain signal stability and precision over extended usage periods.
The input multiplexer allows selection between two differential or four single-ended analog inputs, enabling diverse data acquisition scenarios. Additionally, a programmable comparator aids advanced signal threshold detection.
This ADC interface board is ideal for applications in portable instrumentation, battery monitoring, temperature measurement, factory automation, and process control systems that require high accuracy and low power consumption.
Supports Raspberry Pi 3B, 3B+, and 4 models for broad compatibility. Low current consumption with only 150μA in continuous mode. Auto shut-down in single-shot mode for power saving. Internal low-drift voltage reference and oscillator ensure stable operation.
Input multiplexer with two differential or four single-ended inputs. Programmable comparator for enhanced signal processing. Suitable for portable instrumentation and battery monitoring. Ideal for temperature measurement and factory automation.
Perfect for process control applications requiring precision ADC conversion.
This Seeed Studio Raspberry Pi ADC add-on is essential for engineers, developers, and educators working with analog signal inputs and requiring a high-resolution converter. Explore related Raspberry Pi HATs & add-ons on EnvMart for comprehensive project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides 16-bit resolution for accurate analog-to-digital conversion.
It supports Raspberry Pi models 3B, 3B+, and 4, ensuring broad compatibility for various projects.
The power consumption in continuous mode is only 150μA, making it energy efficient.
Yes, it includes an auto shut-down feature in single-shot mode to conserve power during idle states.
The input multiplexer supports two differential or four single-ended inputs, increasing flexibility for data acquisition.
It is ideal for applications in portable instrumentation, battery monitoring, temperature measurement, factory automation, and process control systems.
It features an internal low-drift voltage reference and oscillator for stable operation over extended usage periods.
This unit utilizes a low current I2C-compatible serial interface for easy connectivity and integration.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
The form factor of this model is Addon, designed specifically as an interface for Raspberry Pi.
Yes, it has a programmable comparator that enhances signal processing capabilities.
The country of origin for this model is China.
