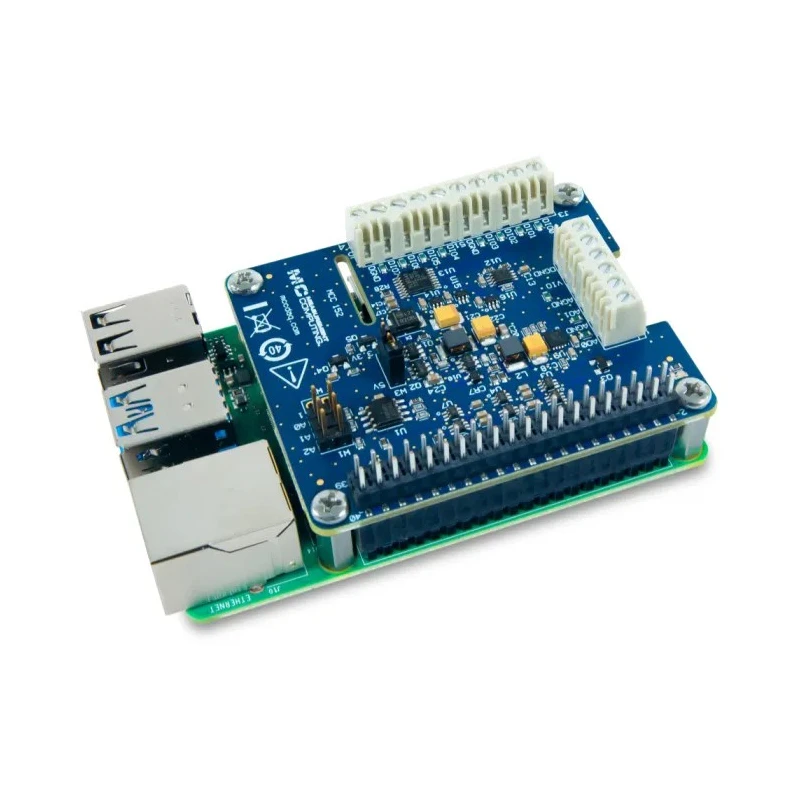

Digilent MCC 152 Voltage Output and DIO DAQ HAT for Raspberry Pi 6069-410-003
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Digilent |
| Form Factor | HAT |
| Accessory Category | Dataloggers |
| Standards/Approvals | RoHS |
| SpecificationsBrandDigilentProduct TypeRaspberry Pi HATProduct NameMCC 152 | Voltage Output and DIO DAQ HAT for Raspberry PiAccessory CategoryDataloggersForm FactorHATStandards/ApprovalsRoHSCountry of OriginHungary |
| Product NameMCC 152 | Voltage Output and DIO DAQ HAT for Raspberry Pi |
| MCC 152 | Voltage Output and DIO DAQ HAT for Raspberry Pi |
Key Features
- The HAT includes two 12-bit simultaneous voltage outputs with 5 mA sourcing drive capability.
- It supports eight bidirectional digital I/O bits with CMOS input thresholds and programmable polarity.
- Digital inputs are 5 V tolerant, compatible with both 3.3 V and 5 V logic levels.
- The module utilizes a 40-pin GPIO connector that conforms to the Raspberry Pi HAT specification.
- Up to eight MCC HATs can be stacked on one Raspberry Pi for expanded input/output capabilities.
Product Description
Digilent 6069-410-003 MCC 152 Voltage Output and DIO DAQ HAT is a high-quality accessory designed specifically for Raspberry Pi, the leading single-board computer widely used in industrial, educational, laboratory, and hobbyist applications.
The device features two 12-bit simultaneous voltage outputs, capable of sourcing 5 mA with a slew rate of 0.8 V/μs, ideal for precision analog voltage generation. Additionally, it offers eight bidirectional digital I/O bits with CMOS thresholds and programmable input polarity, accommodating both 3.3 V and 5 V logic levels while ensuring 5 V tolerance on inputs.
Its form factor follows the Raspberry Pi HAT standard with a 40-pin GPIO connector, enabling easy stacking of up to eight MCC HAT boards on a single Raspberry Pi for scalable I/O expansion. Screw terminal connections facilitate secure wiring for both analog outputs and digital I/O lines.
The MCC 152 is RoHS compliant and manufactured in Hungary, ensuring high quality and regulatory standards compliance. Its versatile digital and analog I/O capabilities make it suitable for data acquisition, control, and automation tasks across industries such as laboratory instrumentation, manufacturing test setups, educational STEM projects, and embedded system prototyping.
Two 12-bit simultaneous voltage outputs provide precise analog control. Eight bidirectional digital I/O bits support versatile digital interfacing. Supports 5 V tolerant inputs facilitating mixed logic level compatibility.
Compliant with Raspberry Pi HAT standards for easy integration and stacking. Screw terminal connections ensure reliable and secure wiring.
This product is ideal for engineers, developers, and educators requiring accurate voltage output combined with flexible digital I/O in a compact HAT form factor optimized for Raspberry Pi platforms.
Explore more Raspberry Pi HATs and Add-ons for enhanced capabilities and application-specific extensions on EnvMart.
Explore more products in our Raspberry Pi Add-On category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCC 152 features two 12-bit simultaneous voltage outputs with a sourcing capability of 5 mA and a slew rate of 0.8 V/μs, suitable for precision analog voltage generation.
This model supports eight bidirectional digital I/O bits with CMOS input thresholds and programmable polarity, accommodating both 3.3 V and 5 V logic levels.
It utilizes a 40-pin GPIO connector that conforms to the Raspberry Pi HAT specification, allowing for easy integration with Raspberry Pi boards.
Yes, up to eight MCC HATs can be stacked on a single Raspberry Pi for expanded input/output capabilities.
The MCC 152 is manufactured in Hungary, ensuring compliance with regulatory standards.
This product is RoHS compliant, indicating it meets specific environmental standards regarding hazardous substances.
It is suitable for data acquisition, control, and automation tasks across various industries, including laboratory instrumentation and educational STEM projects.
It features screw terminal connections that facilitate secure wiring for both analog outputs and digital I/O lines.
The digital inputs are 5 V tolerant, making them compatible with both 3.3 V and 5 V logic levels.
The form factor of this model is a HAT, designed specifically for use with Raspberry Pi boards.
The primary function of the MCC 152 is to provide voltage output and digital I/O capabilities for data acquisition and control applications.
The voltage outputs of the MCC 152 can source up to 5 mA, allowing for effective analog control in various applications.
