ADAFRUIT INDUSTRIES Ultimate GPS HAT for Raspberry Pi 165 dBm Sensitivity 10 Hz Updates Model 2324

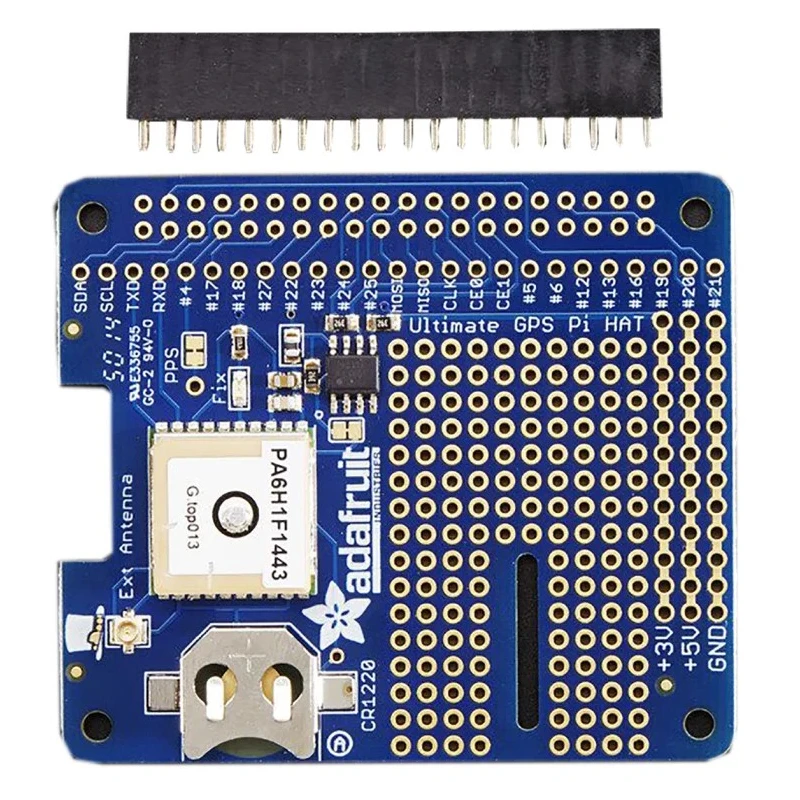

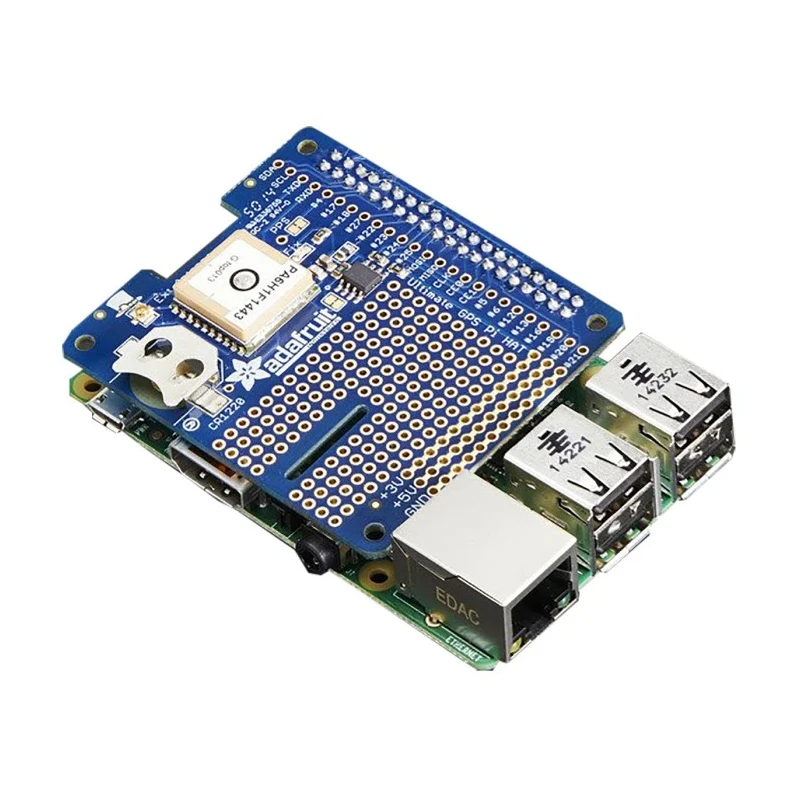

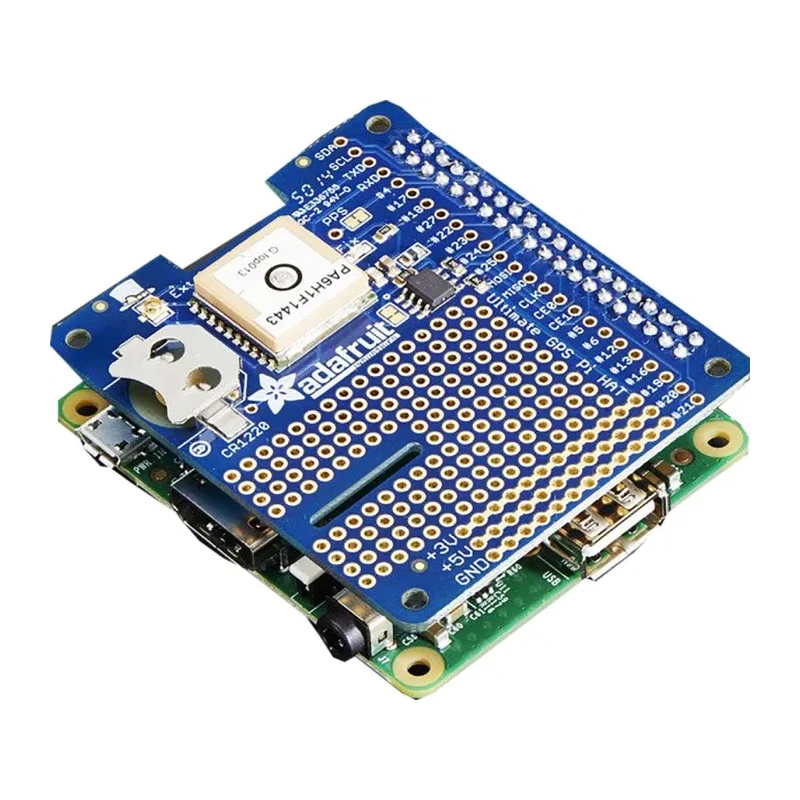

ADAFRUIT INDUSTRIES 2324 Ultimate GPS HAT for Raspberry Pi is a sophisticated GPS add-on designed to provide accurate time and location data to supported Raspberry Pi models including A+, B+, and Pi 2. It features a 165 dBm sensitivity GPS receiver capable of 10 Hz update rates and supports up to 66 satellite channels, ensuring reliable and continuous GPS signal acquisition for diverse applications.

The HAT includes a built-in Real Time Clock (RTC) with a CR1220 backup battery slot, enabling up to 7 years of autonomous timekeeping even when the Raspberry Pi is powered down. This feature is critical for timestamp accuracy in time-sensitive projects.

A fix status LED on the module visually indicates when the GPS has acquired a valid position fix, providing user-friendly status feedback during operation.

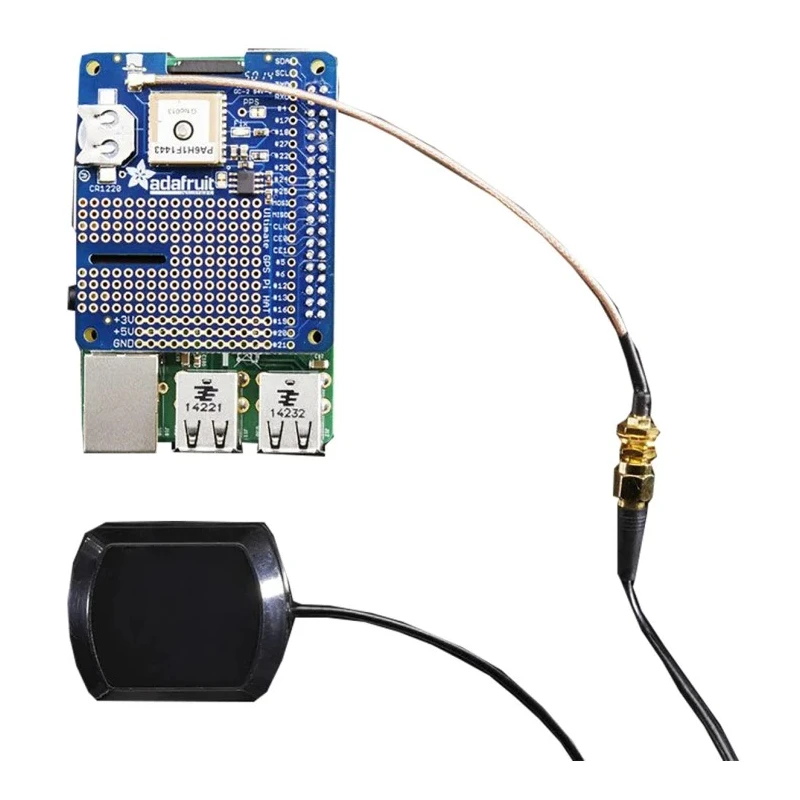

The device is equipped with an internal patch antenna optimized for outdoor usage as well as a u.FL connector which supports an external active antenna. This adaptability allows use in environments where a clear sky view is not available, such as indoors or urban canyons.

Despite its sophisticated capabilities, the HAT operates with a low current consumption of only 20 mA, contributing to power-efficient designs.

PPS (Pulse Per Second) output is provided on fix, connected by default to pin number 4 of the Raspberry Pi, offering high precision timing signals valuable in applications like network time synchronization or advanced navigation.

The Ultimate GPS HAT complies with RoHS environmental standards and carries certifications ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, ensuring safety and reliability in industrial and commercial environments.

This GPS HAT is ideal for industrial, laboratory, educational, and hobbyist projects involving positioning, navigation, timing, and IoT integrations. It expands the capabilities of Raspberry Pi computers for professional and development purposes.

The device provides 165 dBm GPS receiver sensitivity for superior satellite tracking. Contains a Real Time Clock with long-life backup battery support. Includes fix status LED for easy status monitoring. Equipped with both internal and external antenna options.

Low power consumption facilitates battery-powered Raspberry Pi projects. PPS output connected to pin 4 enhances timing precision. Complies with RoHS, ANSI/ESD S20.20, and BS EN 61340-5-1 standards. Manufactured in Thailand ensuring quality production.
