Digilent Thermocouple Measurement DAQ Raspberry Pi HAT 4 Isolated Inputs 24-bit ADC 6069-410-002

Free Delivery in India | Lowest Global Shipping Charges

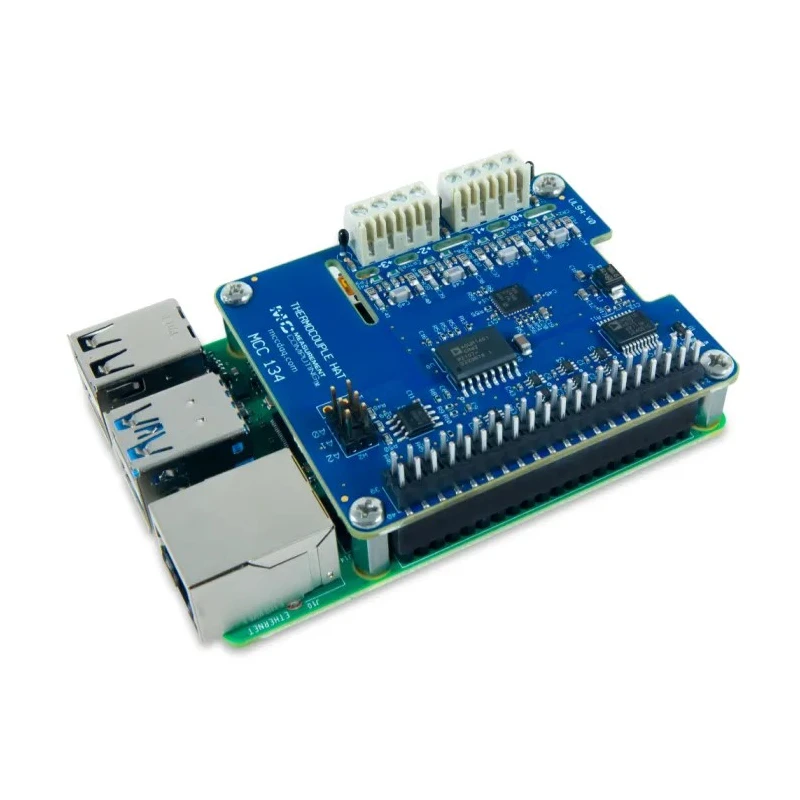

Digilent Thermocouple Measurement DAQ Raspberry Pi HAT 4 Isolated Inputs 24-bit ADC 6069-410-002

Name: Digilent Thermocouple Measurement DAQ Raspberry Pi HAT 4 Isolated Inputs 24-bit ADC 6069-410-002
Brand: Digilent
SKU: 295602
Price: 259.42 USD
Availability: InStock



Category Raspberry Pi Add-On Brand Digilent Condition New

Specifications

Country of Origin	Hungary
Brand	Digilent
Form Factor	HAT
Accessory Category	Dataloggers
Standards/Approvals	RoHS
SpecificationsBrandDigilentProduct TypeRaspberry Pi HATProduct NameMCC 134	Thermocouple Measurement DAQ HAT for Raspberry PiAccessory CategoryDataloggersForm FactorHATStandards/ApprovalsRoHSCountry of OriginHungary
Product NameMCC 134	Thermocouple Measurement DAQ HAT for Raspberry Pi
MCC 134	Thermocouple Measurement DAQ HAT for Raspberry Pi

Key Features

Provides four isolated thermocouple inputs for precise temperature measurement.
Equipped with a 24-bit analog-to-digital converter ensuring high resolution data.
Supports thermocouple types J, K, R, S, T, N, E, and B for versatile applications.
Features cold junction compensation and linearization for accurate thermocouple readings.
Screw terminal connections ensure secure and reliable wiring.
Compatible with Raspberry Pi HAT standard and uses 40-pin GPIO connector.
Allows stacking of up to eight MCC DAQ HATs on a single Raspberry Pi for expanded capability.
Designed for data acquisition and temperature monitoring in embedded and industrial applications.

Product Description

Digilent 6069-410-002 Thermocouple Measurement DAQ HAT for Raspberry Pi is a precision data acquisition accessory designed to interface directly with Raspberry Pi single-board computers. This HAT (Hardware Attached on Top) complies with the Raspberry Pi HAT specification featuring a 40-pin GPIO connector, enabling convenient stacking and expansion.

The MCC 134 HAT provides four isolated thermocouple inputs capable of accepting a wide range of thermocouple types including J, K, R, S, T, N, E, and B. The built-in 24-bit analog-to-digital converter offers high resolution and precise temperature measurement essential for laboratory, industrial, and embedded applications requiring thermal monitoring and control.

Advanced features include cold junction compensation and linearization to ensure the accuracy of temperature readings despite environmental variations. Screw terminal connectors simplify wiring while providing strong and reliable electrical connections.

Up to eight MCC DAQ HATs can be stacked onto a single Raspberry Pi device, allowing users to expand measurement channels for complex data collection and monitoring systems. The device conforms to RoHS standards and is manufactured in Hungary.

This thermocouple DAQ HAT is ideal for applications in industrial automation, research laboratories, HVAC systems, manufacturing process control, and educational projects involving precise temperature monitoring using Raspberry Pi platforms.

Four isolated thermocouple inputs enable simultaneous multi-point temperature measurement. 24-bit A/D converter for high precision data acquisition. Supports common thermocouple types: J, K, R, S, T, N, E, and B. Includes cold junction compensation and linearization for accurate readings.

Screw terminal connections allow easy and secure wiring. Stackable design supports up to eight devices on one Raspberry Pi. Complies with RoHS environmental standards. Explore more Raspberry Pi HATs and add-ons for industrial and educational applications on EnvMart.
