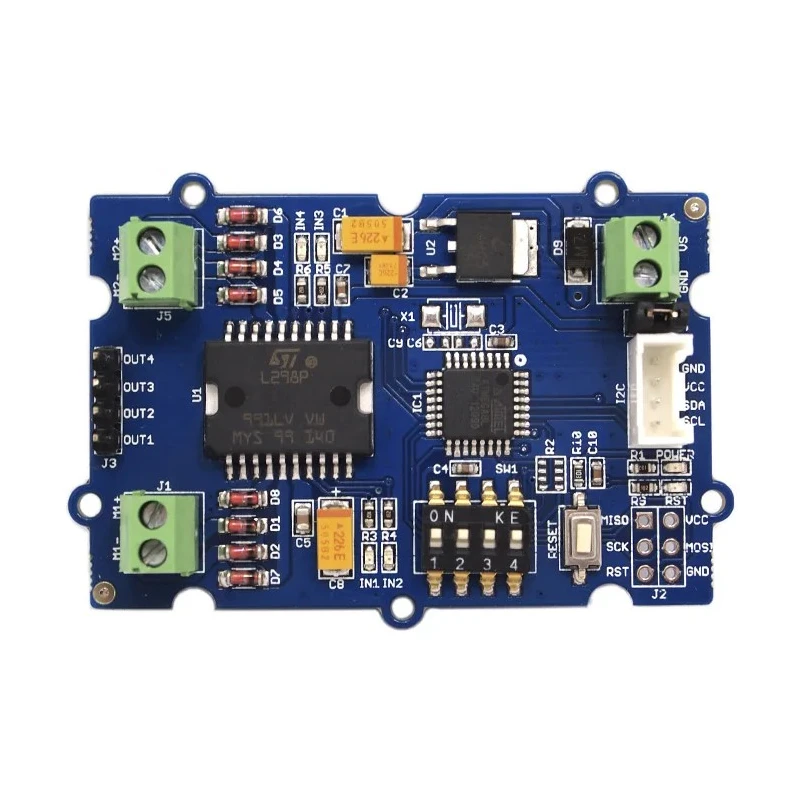

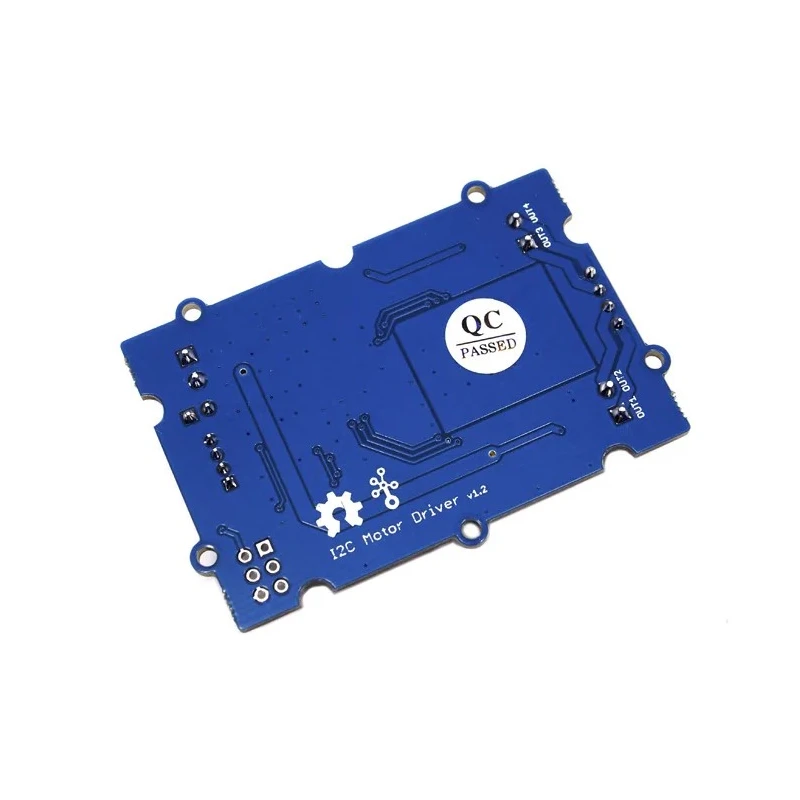

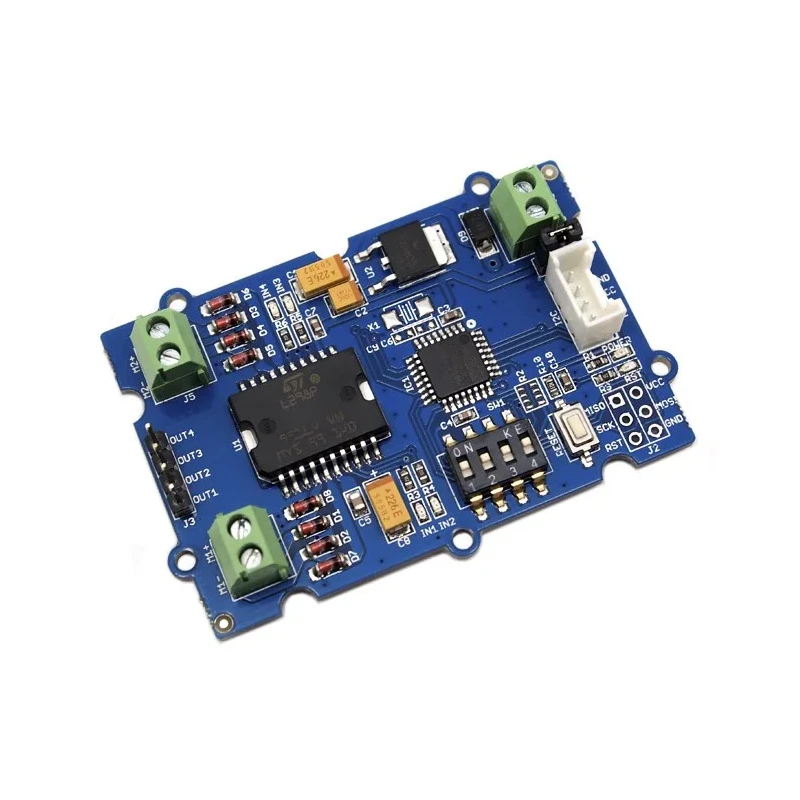

Seeed Studio Arduino Compatible Board Grove I2C Motor Driver with L298 Dual Channel H-Bridge Driver 2A per Channel 105020001

Seeed Studio 105020001 Arduino Compatible Board Grove I2C Motor Driver is designed for versatile motor control applications with a dual channel L298 H-bridge driver chip allowing up to 2A current per motor channel. It utilizes an Atmel ATmega8L microcontroller for efficient I2C communication, making it compatible with Arduino platforms and other microcontrollers.

This motor driver board can control two brushed DC motors independently with differing speeds and directions, or a single 4-wire two-phase stepper motor. The board requires an external power supply ranging from 6V to 15V for motor operation and includes an onboard 5V regulator to supply power to the I2C bus, selectable via jumper.

All motor driver lines are diode-protected from back electromotive force, ensuring reliable and safe operation. The hardware interface features screw terminals for motor and power connections and Grove connectors for easy daisy chaining with other Grove system components.

LED indicators provide clear visual feedback of power status and motor operation direction for both channels. The compact Arduino-compatible design makes this motor driver suitable for educational, robotics, prototyping, and embedded system projects requiring dual motor control.

Its robust design and easy software interface get users up and running quickly in industrial, educational, robotics, and embedded applications. Controls two brushed DC motors or one stepper motor simultaneously. Strong 2A current capability per channel with back EMF protection.

Onboard 5V regulator powers I2C bus optionally. Clear LED indicators for power and motor direction. Screw terminals and Grove interface ease connectivity and expandability. Arduino compatible with I2C control via Atmel ATmega8L.

Ideal for robotics, STEM education, and embedded motor control. Explore more Arduino Compatible Boards and motor control solutions on EnvMart for industrial, laboratory, educational, and prototyping needs.
