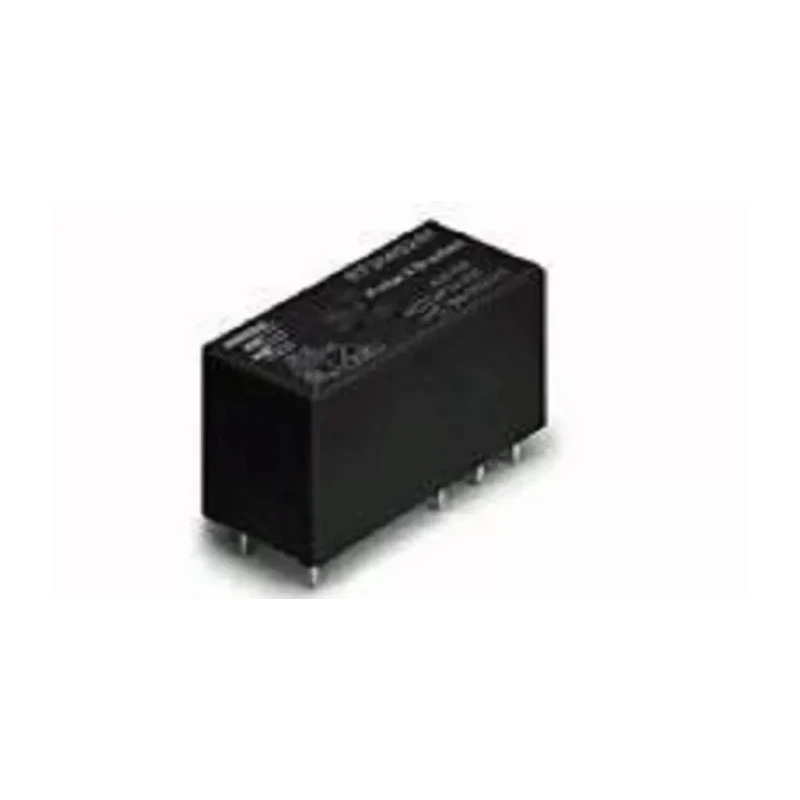

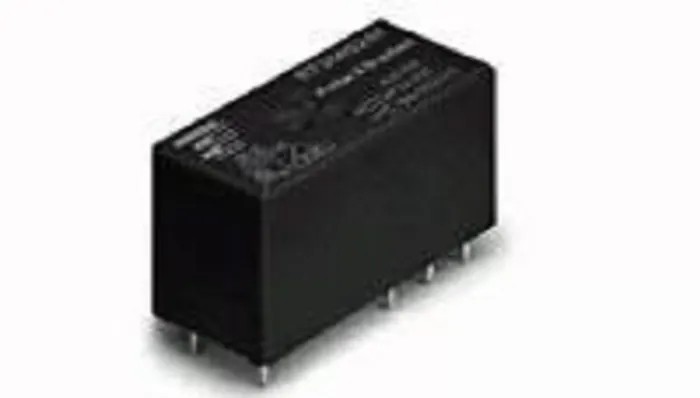

TE Connectivity PCB Monostable Relay, 12V DC Coil, 8A Switching Current, DPDT 3-1393237-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- This monostable relay features a coil power rating of 400 mW.
- It supports switching currents up to 8 amperes for reliable operation.
- The relay is designed for PCB mounting with solder terminal type.
- Operating temperature range is from -40°C to 85°C, suitable for diverse environments.
- Contact material is silver alloy, offering low contact resistance and durability.
- The compact relay dimensions are 20mm length, 15mm height, and 10mm width.
- It has a coil resistance of 100 ohms ensuring optimal coil performance.
- Switching AC voltage rating is 250V AC and DC switching voltage is 30V DC.
Product Description
TE Connectivity 3-1393237-1 PCB Monostable Relay is a high-quality electromechanical relay designed for PCB mounting with solder terminals. It operates on a 12V DC coil voltage and features a double-pole double-throw (DPDT) contact configuration, allowing versatile switching capabilities in electrical and automation systems.
The relay supports a switching current of 8 amperes, suitable for medium power loads in industrial and commercial applications. Its silver alloy contacts provide reliable conductivity and low contact resistance of 50 milliohms, ensuring efficient signal and power switching.
The coil power consumption is rated at 400 milliwatts with a coil resistance of 100 ohms, and the operating temperature ranges from -40°C to 85°C, making it robust for harsh environments. The compact form factor dimensions of 20mm length, 15mm height, and 10mm width allow seamless integration into PCB designs with limited space.
This monostable relay complies with RoHS and UL certification standards, supporting safe and environmentally responsible use in electronics, industrial automation, HVAC controls, and similar systems requiring reliable relay performance.
This monostable relay features a coil power rating of 400 mW. It supports switching currents up to 8 amperes for reliable operation. The relay is designed for PCB mounting with solder terminal type. Operating temperature range is from -40°C to 85°C, suitable for diverse environments.
Contact material is silver alloy, offering low contact resistance and durability. The compact relay dimensions are 20mm length, 15mm height, and 10mm width. It has a coil resistance of 100 ohms ensuring optimal coil performance.
Switching AC voltage rating is 250V AC and DC switching voltage is 30V DC. The relay meets RoHS and UL standards for safety and environmental compliance.
Ideal for industrial, laboratory, automation, electronic, and control systems, the TE Connectivity 3-1393237-1 PCB Monostable Relay balances compact size with robust electrical capabilities for dependable switching operations. Explore more Power Relays on EnvMart to find compatible components for your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of up to 8 amperes, making it suitable for medium power loads in various applications.
It operates on a coil voltage of 12V DC, ensuring compatibility with standard low-voltage control systems.
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching capabilities.
The relay has compact dimensions of 20mm in length, 15mm in height, and 10mm in width, facilitating integration into tight spaces on PCBs.
It operates effectively within a temperature range of -40°C to 85°C, suitable for diverse environmental conditions.
The coil power consumption is rated at 400 milliwatts, which is optimal for its operational efficiency.
The contacts are made of silver alloy, providing low contact resistance and enhancing reliability in switching operations.
The contact resistance is rated at 50 milliohms, ensuring efficient signal and power switching.
The relay has a switching AC voltage rating of 250V AC and a DC switching voltage rating of 30V DC.
It is designed for PCB mounting with solder terminals, making it easy to integrate into printed circuit boards.
This model complies with RoHS and UL certification standards, ensuring safe and environmentally responsible use.
The coil resistance is 100 ohms, which is essential for optimal coil performance.
