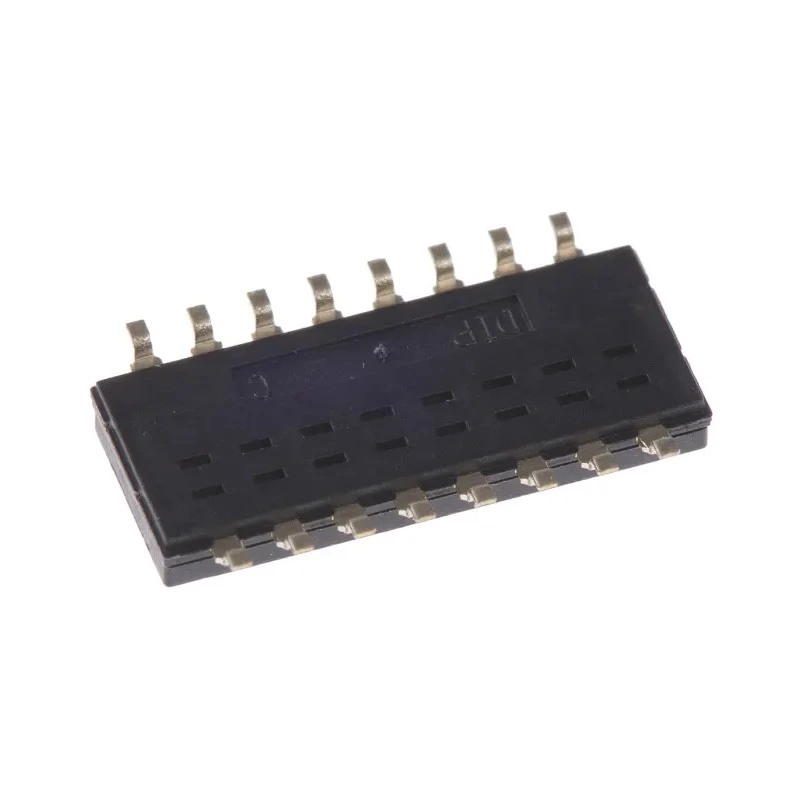

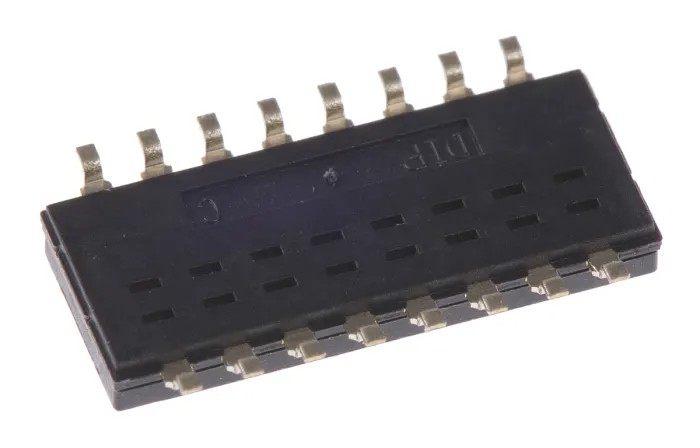

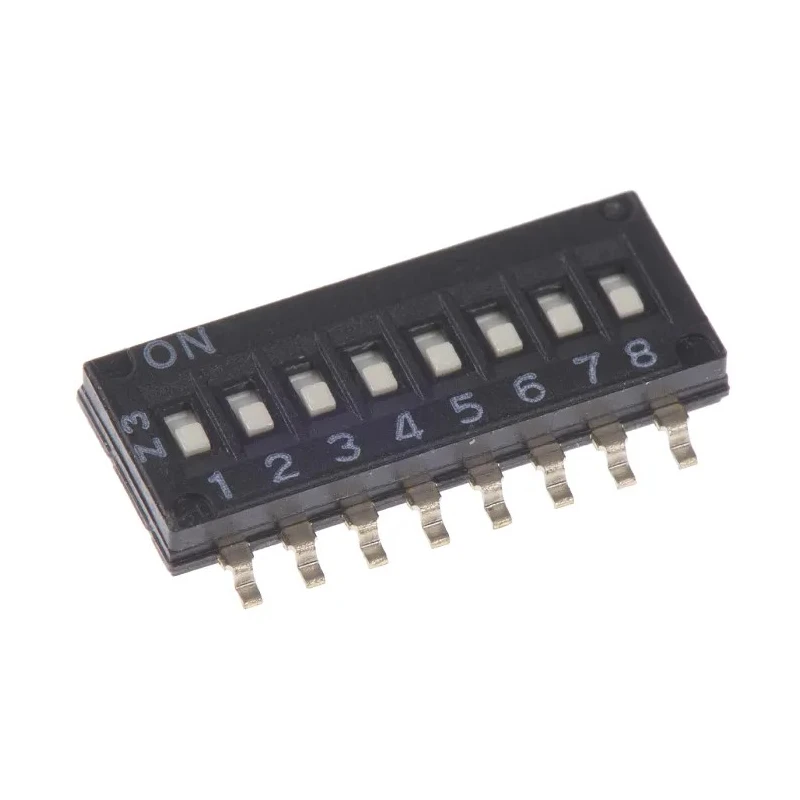

Omron Slide Rotary Coded DIP Switch Surface Mount A6H-8102

Omron A6H-8102 Slide Rotary Coded DIP Switch Surface Mount is a precision half pitch switch designed for compact space applications in electrical, automation, and electronic systems. The surface mount design provides an ultra low profile of 1.55 mm, significantly reducing PCB area required by approximately 63%, making it ideal for densely packed circuits.

This DIP switch series utilizes a slide actuator, facilitating easy coding and setting on circuit boards. The contact resistance is low at 200 milliohms, which minimizes signal loss and power dissipation. Additionally, the device ensures high insulation resistance of 100 megaohms minimum at 250 VDC, guaranteeing electrical isolation integrity.

The switch supports a mechanical life of 1000 operations, suitable for applications requiring reliable switching cycles.

The compact size and low profile make it suitable for industrial automation, control systems, telecommunications, and instrumentation requiring precise rotary coded switching functionality. Its surface mount construction ensures compatibility with modern automated PCB assembly techniques.

This switch reduces mounting space by 63%, suitable for high-density circuit boards. It features a slide actuator type with contact resistance of 200 milliohms. Insulation resistance is at least 100 megaohms at 250 VDC for reliable performance.

Mechanical life expectancy is rated for 1000 operations ensuring durability. The device is RoHS compliant, manufactured in China to high quality standards.

For reliable and space-efficient Rotary Coded DIP Switch applications, the Omron A6H-8102 is a high-quality choice. Explore other rotary and DIP switches within the Switches & Sockets category at EnvMart for diverse industrial and electronics solutions.
