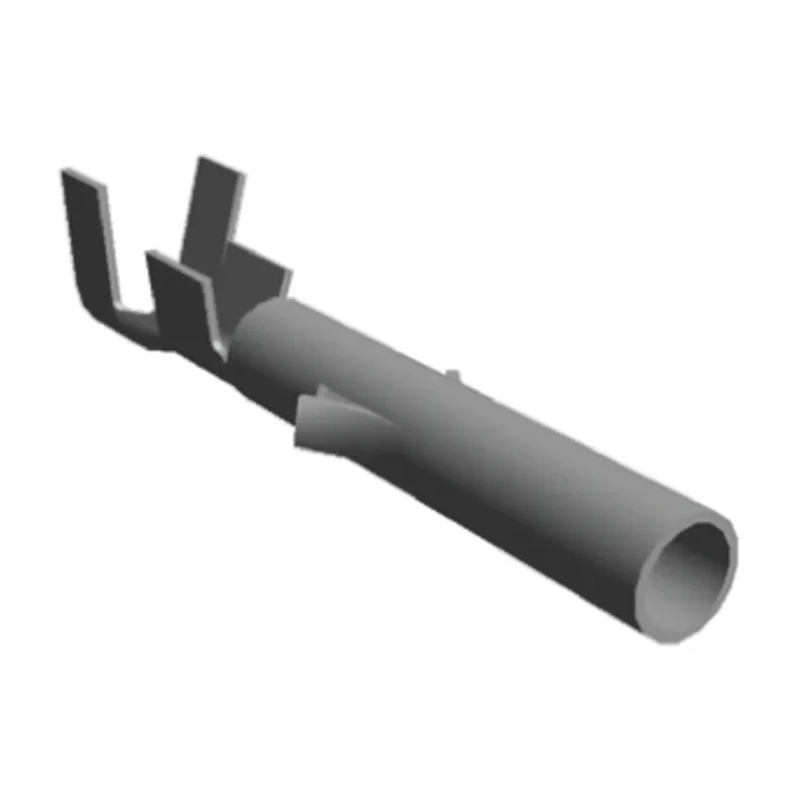

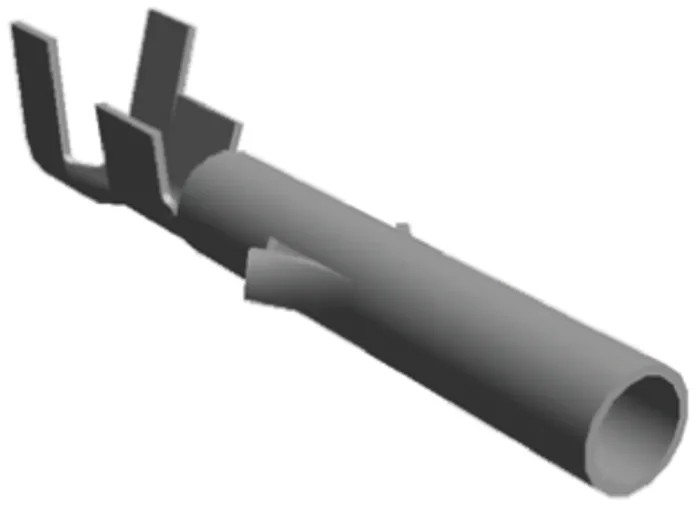

TE Connectivity 0.062 Commercial Series Female Crimp Terminal 24 AWG Min Crimp 18 AWG Max 350628-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 9A |
| Model | 350628-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | 0.062 Commercial |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | 0.062 Commercial Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
Key Features
- Constructed with brass contact material ensuring reliable conductivity.
- Features tin plating on contacts for corrosion resistance.
- Suitable for 0.062 Commercial Connector Housing use.
- Supports a current rating of 9A for moderate electrical loads.
- Operational temperature range from -55°C to 105°C for versatile applications.
- Termination via crimping method for secure connections.
- Complies with no specific standards or approvals but designed for industrial usage.
- Contact designed as female to mate with 0.062 diameter pin connectors.
Product Description
TE Connectivity 350628-1 Female Crimp Terminal is part of the 0.062 Commercial Series designed specifically for use in electronic and electrical assembly applications requiring reliable female Crimp Contacts. This terminal is engineered with a brass contact material that provides excellent electrical conductivity and stability.
The contacts feature a tin plating, enhancing corrosion resistance and ensuring longevity under various environmental conditions. Designed for compatibility with 0.062 Commercial Connector Housings, the terminal supports wire sizes from 24 AWG (0.2 mm²) to 18 AWG (0.9 mm²), making it versatile for a range of wiring applications.
With a rated current capacity of 9 amps, this crimp terminal is suitable for moderate electrical current requirements, commonly found in industrial, laboratory, manufacturing, and HVAC systems. The operating temperature range from -55°C up to 105°C ensures reliable performance in both high and low-temperature environments.
The crimp termination type offers secure mechanical and electrical connections, facilitating efficient assembly processes and reducing failure risks in critical power and signal connections. Although this product does not carry specific certifications, it is widely used in professional applications requiring robust and stable electrical contacts.
Constructed with brass contact material for excellent conductivity. Tin plating improves corrosion resistance. Compatible with 0.062 Commercial Connector Housing systems. Supports wire sizes from 24 AWG to 18 AWG. Rated for 9A current handling capacity.
Operates reliably between -55°C and 105°C. Crimp termination type for secure connections.
This female crimp terminal is ideal for industrial, manufacturing, electronics assembly, and HVAC applications requiring dependable wire termination solutions. For comprehensive access to compatible connectors and tooling, browse the full TE Connectivity range at EnvMart.
