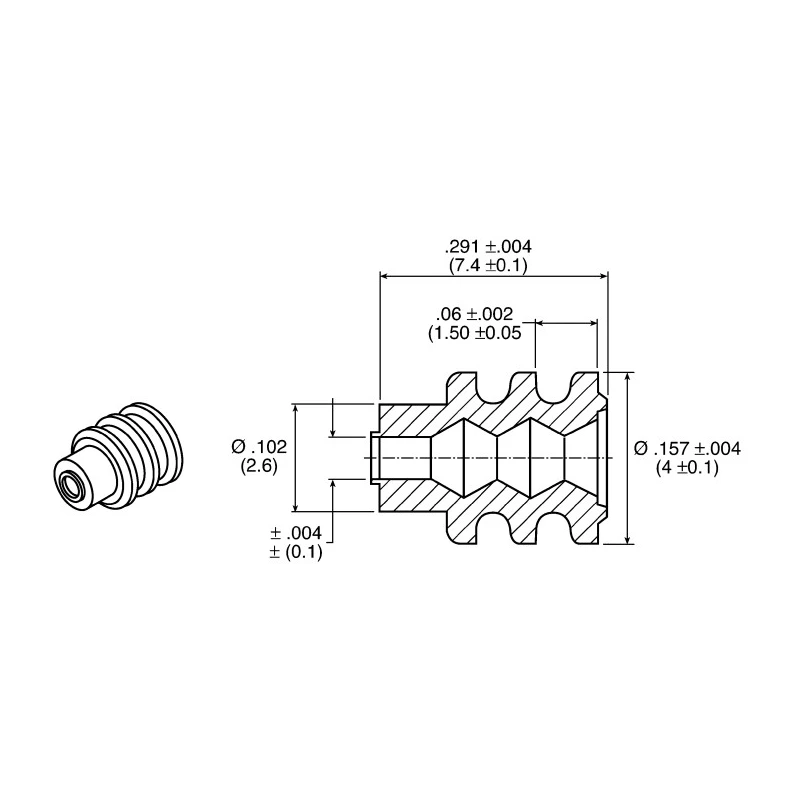

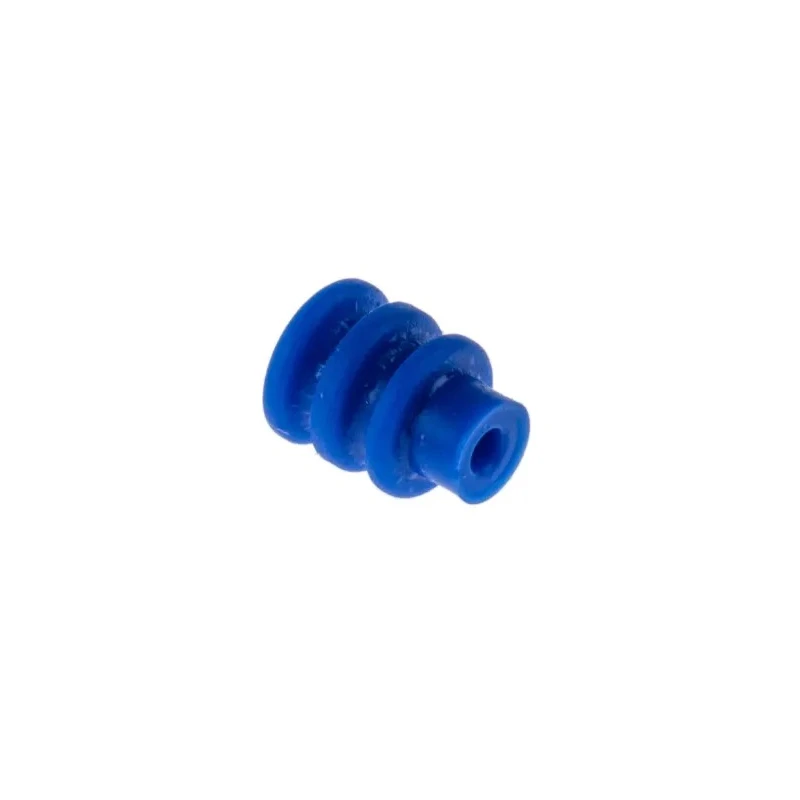

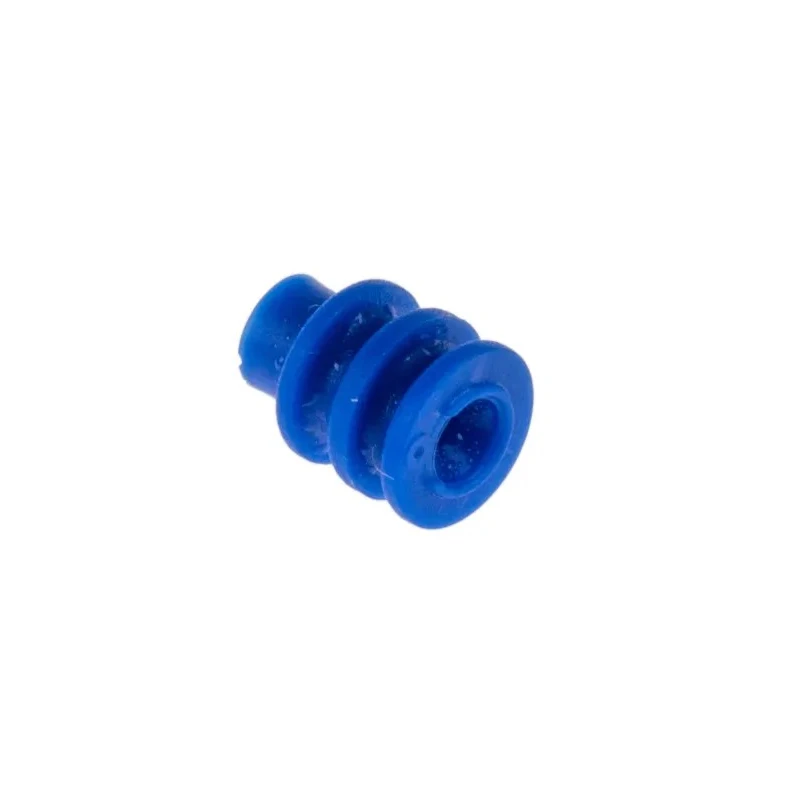

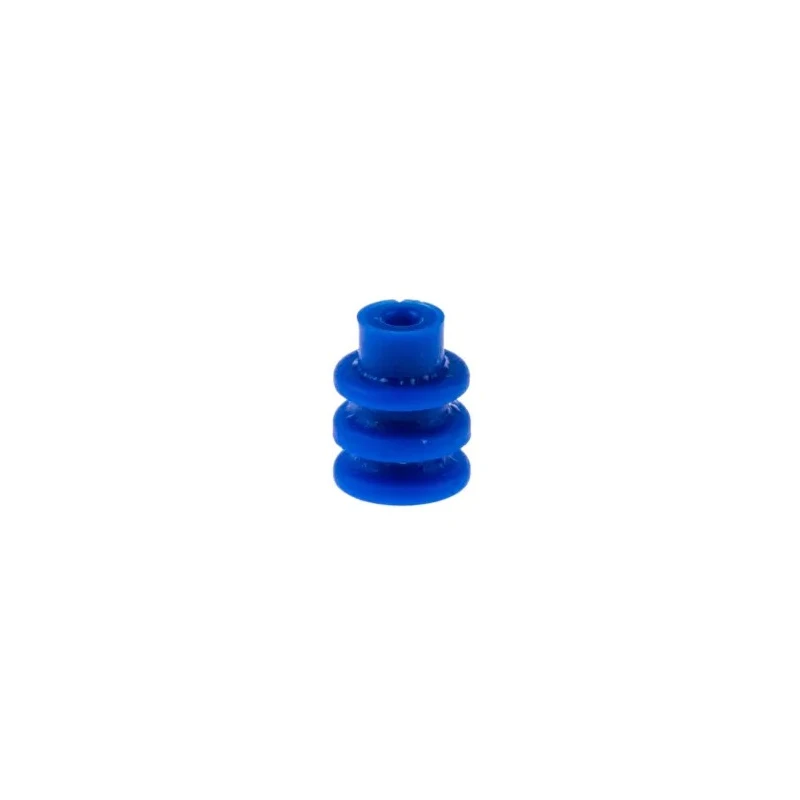

TE Connectivity Mini-Universal MATE-N-LOK Sealed Connector System Female Connector Seal, Crimp, Blue, 3A, 20 - 26AWG 794758-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Current | 3A |
| Model | 794758-1 |
| Gender | Female |
| Contact Material | Nickel Plated Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK Sealed Connector System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MR Socket Housing |
| Contact Plating | Brass |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Provides reliable sealing for Mini-Universal MATE-N-LOK connector systems.
- Carries a current rating of up to 3A suitable for power and signal wiring.
- Compatible with wire sizes from 20 AWG minimum to 26 AWG maximum for application flexibility.
- Manufactured from nickel-plated phosphor bronze with brass contact plating for enhanced conductivity and corrosion resistance.
- Blue single wire seal construction ensures clear identification and secure crimping for MR Socket Housing applications.
- Operating temperature range from minus 30°C to plus 105°C supports use in harsh environments.
- Female connector seal design; meets IP56 and IP57 for sealed performance in demanding conditions.
- Maximum contact resistance of 20 milliohms ensures electrical performance and reliability.
Product Description
The TE Connectivity 794758-1 Mini-Universal MATE-N-LOK Sealed Connector System Female Connector Seal is a specialised wire seal engineered for robust and reliable performance in modular crimp applications. Designed specifically for use with MR Socket Housing, this female connector seal allows secure electrical connections for wires ranging from 20 AWG to 26 AWG, supporting broad compatibility for industrial, electronic, and commercial projects.
Constructed from nickel-plated phosphor bronze with brass contact plating, the seal is intended to maximise conductivity while offering excellent resistance to corrosion and environmental factors. The blue colour provides easy identification in wiring assemblies, and the seal is rated to perform at currents up to 3A, making it suitable for both power and signal transmission within compact footprint assemblies.
Installation is straightforward using crimp termination, ensuring mechanical robustness and electrical reliability. Its operating temperature range from minus 30°C to 105°C supports deployment in demanding industrial, electronics manufacturing, and laboratory environments, where thermal and moisture stresses require durable sealed connections.
Electrical performance is evidenced by a maximum contact resistance of 20 milliohms - critical for maintaining signal integrity and preventing power loss. The female seal offers IP56 and IP57 rated protection, ensuring resistance to dust and water ingress for indoor and outdoor settings.
Typical applications include PCB connector assemblies, wire harnesses for industrial control equipment, instrumentation and measurement systems, and automotive or transport wiring. Its reliability makes it ideal in settings requiring frequent re-termination or modular expansion.
Industries leveraging this product include electronics manufacturing, industrial automation, laboratory instrumentation, telecommunications, and commercial equipment integration. The versatility of the MATE-N-LOK series connector system ensures compatibility with evolving requirements in these fields.
Explore more connector solutions from TE Connectivity and in Crimp Contacts on EnvMart's platform for reliable, industry-standard products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector seal is 3A, making it suitable for both power and signal wiring applications.
This model is compatible with wire sizes ranging from 20 AWG minimum to 26 AWG maximum, providing flexibility for various applications.
The operating temperature range for this connector seal is from -30°C to +105°C, allowing it to function in harsh environments.
The maximum contact resistance of this connector seal is 20 milliohms, ensuring reliable electrical performance.
It is constructed from nickel-plated phosphor bronze with brass contact plating, enhancing conductivity and corrosion resistance.
This model uses crimp termination, which ensures mechanical robustness and electrical reliability during installation.
Yes, it meets IP56 and IP57 ratings for sealed performance, providing resistance to dust and water ingress, making it suitable for outdoor applications.
Typical applications include PCB connector assemblies, wire harnesses for industrial control equipment, and automotive wiring.
The connector seal is blue, which aids in clear identification during wiring assemblies.
This model belongs to the Mini-Universal MATE-N-LOK Sealed Connector System series, designed for modular crimp applications.
This connector seal is designed as a female connector, specifically for use with MR Socket Housing.
The country of origin for this connector seal is India.
