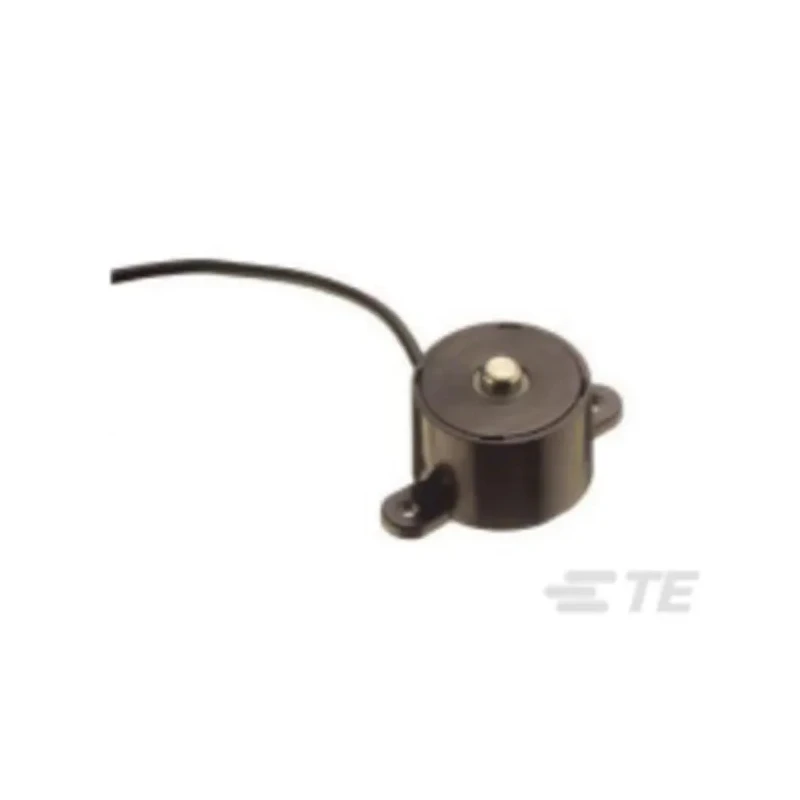

TE Connectivity FC22 Series Robust Load Cell, Compression, 0 lb to 45.3 kg, 5.25V DC, Plastic, Wire Terminal

The TE Connectivity FC2231-0000-0100-L FC22 Series robust load cell is engineered for high accuracy compression force measurement, covering a range from 0 lb to 45.3 kg. This sensor provides high level outputs suitable for precise force detection applications across industrial, medical, and robotics sectors.

Designed with a durable plastic housing, the load cell offers compact dimensions with a gauge length of 26 mm, width of 16.8 mm, and depth of 34 mm. Its wire terminal design allows seamless integration into electronic measurement setups, automation systems, and control gear, facilitating efficient and secure connection to sensor networks.

Operating at a maximum DC voltage of 5.25V, the FC22 Series ensures robust performance and low noise operation, making it suitable for environments requiring reliable and repeatable force measurements. The load cell supports a wide ambient temperature range from -40°C up to 85°C, enabling stable performance under challenging industrial and laboratory conditions.

The sensor complies with multiple standards, including IEC61000-4-2, EN55032 Class A, CE, RoHS, and IEC61000-4-3, ensuring its suitability for regulated environments and high safety standards. Its robust construction and long-term reliability make it a preferred choice for demanding force sensing tasks like medical infusion pumps, robotics end effectors, variable force control, and compression sensing.

This load cell is especially useful in applications requiring precision feedback for actuators, automated test systems, and process control where accurate compression measurement is vital. The product's compact form factor and low noise characteristics further enhance its adaptability within modern manufacturing and research facilities.
