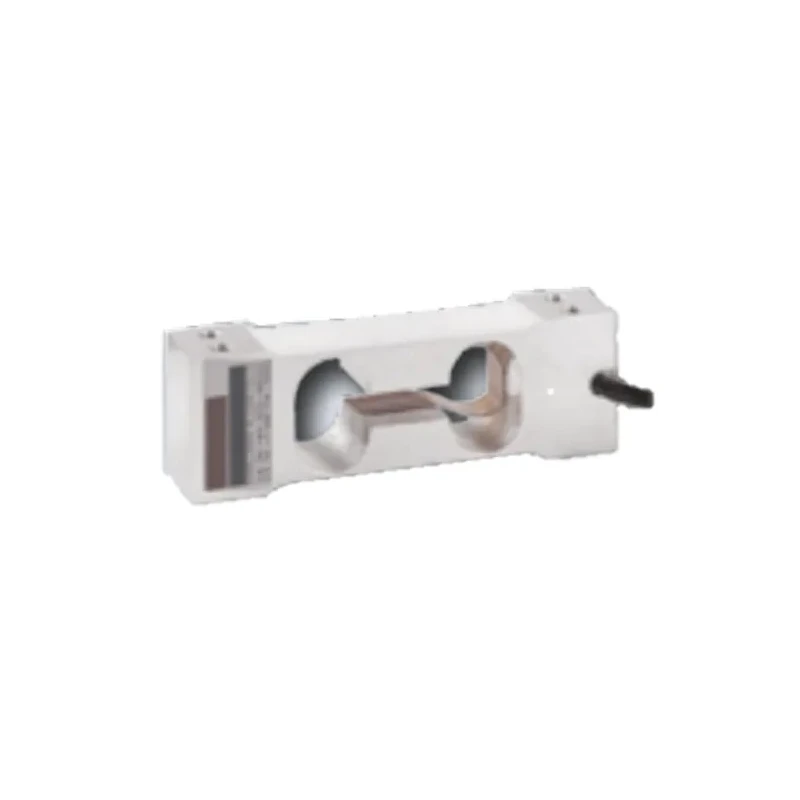

Tedea Huntleigh Model 1006 Series Single-Point Load Cell Compression Force Measurement 2-5 kg, 415Ω Cable 01006-005K-G0-54X

Tedea Huntleigh 01006-005K-G0-54X Model 1006 Series is a very low capacity, high precision single-point load cell designed primarily for compression force measurement within the range of 2 kg to 5 kg. It is built with an aluminium housing and rated IP66 for protection against dust and water ingress, making it suitable for industrial and laboratory-scale weighing scenarios.

The single-point design enables direct mounting in low capacity scales with acting forces within 100 mm of the load cell vertical axis, ideal for applications such as postal scales, counting scales, grocery scales, and various industrial process controls or specialized medical devices. Its compact size, measuring 22 mm in length by 15 mm width and depth, allows easy integration in constrained spaces.

The load cell utilizes a gauge resistance of 415 ohms for high sensitivity and precision measurement. Electrical terminals are provided in cable form, supporting both AC and DC voltages up to 15 V. The operating temperature range from -20°C to 70°C ensures reliable performance in diverse environmental conditions.

This Model 1006 load cell complies with RoHS standards, emphasizing environmental safety in manufacturing and use. Its robust aluminium construction ensures mechanical strength while maintaining light weight and ease of installation in weighing systems.

Common industrial and commercial uses for this sensor include bench and counting scales, postal weighing, and various general-purpose weighing applications where precision, reliability, and compact form factors are critical for measurement accuracy and device integration.

This load cell features a 415 ohm gauge resistance for accurate force sensing. The aluminium housing provides durability and corrosion resistance with an IP66 rating. It operates safely with maximum AC and DC voltages rated at 15 volts.

Designed for use in low capacity scales and force measurement devices with cable terminals for connection. Suitable operating temperature ranges from minus 20°C to 70°C for varied environments. The compact dimensions include 22 mm length, 15 mm width, and 15 mm depth.

Application areas include bench scales, counting scales, postal scales, and general-purpose weighing equipment. Explore the comprehensive catalog of Load Cells and precision sensors on EnvMart for industry-grade measurement solutions that meet your application needs.
