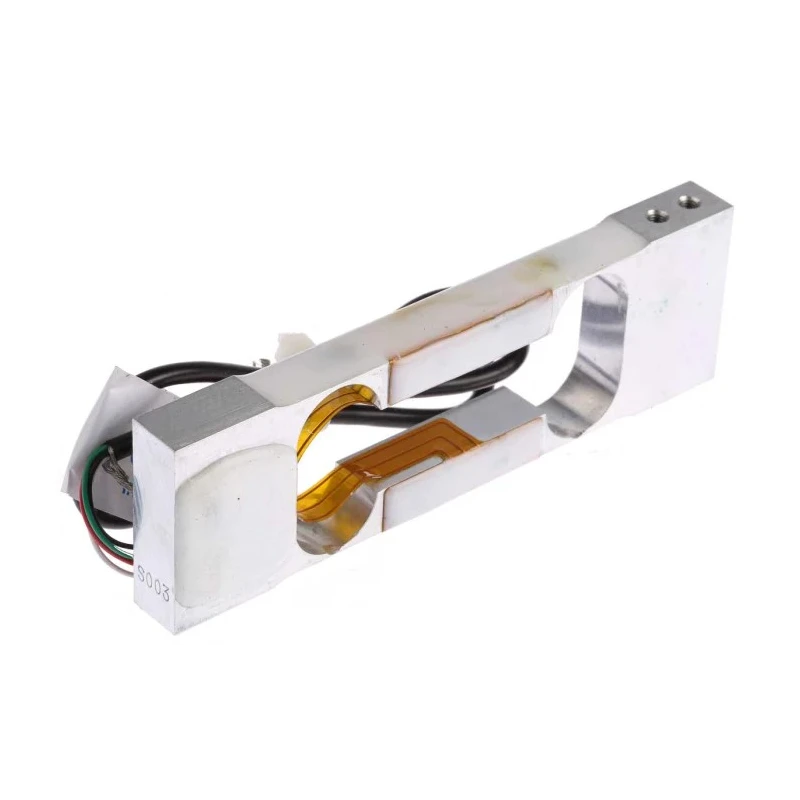

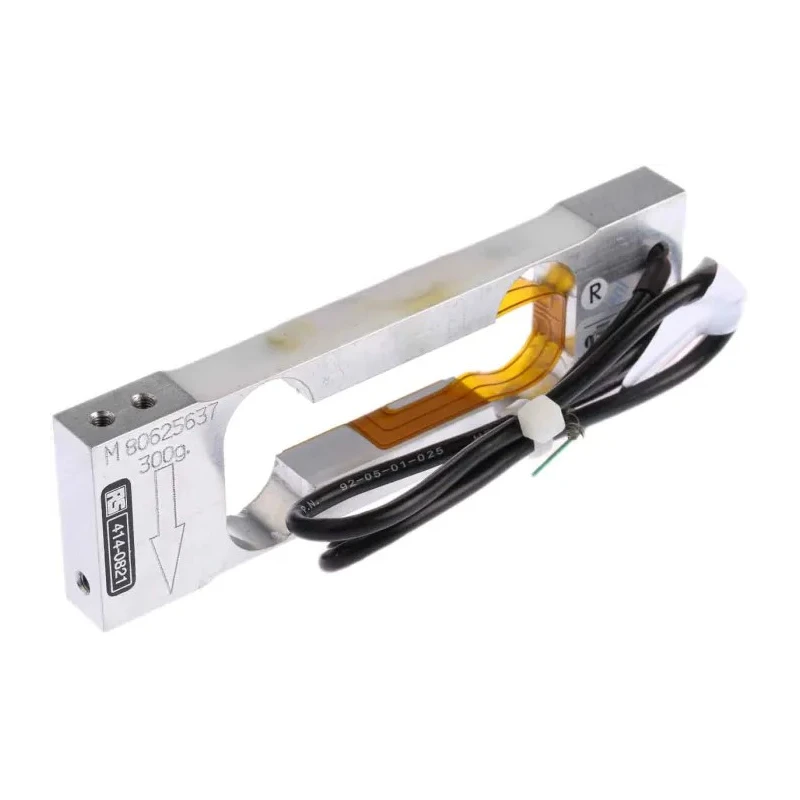

Tedea Huntleigh Low Capacity Aluminium Single Point Compression Load Cell 0.3 kg to 3 kg, 415Ω, IP66, Model 1004-00.3-JW00-RS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tedea Huntleigh |
| Length | 33mm |
| Model | 1004-00.3-JW00-RS |
| Depth | 10mm |
| IP Rating | IP66 |
| Sensor Type | Single Point |
| Width | 110mm |
| Housing Material | Aluminium |
| Series | Model 1004 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 5°C |
| Terminal type | Wire |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | NTEP, OIML |
| Maximum AC Voltage | 15V ac |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 3kg |
| Gauge Resistance | 415Ω |
| Minimum Force/Load Measurement | 0.3kg |
| RS PRO Low Profile Load Cell, 0.06 kg, Compression Measure, 3 kgBrand | RS PRO |
| Tedea Huntleigh Compression Load Cell 0.6kg, 15V dc, IP66Brand | Tedea Huntleigh |
Key Features
- Suitable for force measurements from 0.3 kg minimum to 3 kg maximum compression load.
- Constructed with aluminium housing ensuring light weight and durability.
- Designed with 4-wire, 28 AWG cable with spiral shield and PVC jacket for reliability.
- Operating temperature range from 5°C to 40°C suitable for controlled environments.
- Compact dimensions of 110 mm width, 33 mm length and 10 mm depth for easy integration.
- Complies with NTEP and OIML standards for accuracy and safety.
- Ideal for use in postal scales, counting scales, jewellery scales, and analytical balances.
Product Description
Tedea Huntleigh 1004-00.3-JW00-RS is a precision low capacity single point load cell designed for compression force measurement applications with capacities ranging from 0.3 kg to 3 kg. This load cell features a durable aluminium housing and is engineered for industrial, laboratory, and commercial weighing systems.
With a gauge resistance of 415Ω and an output impedance of 350Ω, it offers stable and reliable measurements. The device supports a maximum AC and DC voltage of 15 V, and its IP66 rating ensures protection against dust and water ingress, making it suitable for harsh environments.
The load cell comes with a 4-wire cable assembly (28 AWG, spiral shield, PVC jacket) for secure electrical connection. Its physical dimensions are 110 mm in width, 33 mm length, and 10 mm depth, allowing installation on platforms up to 200 x 200 mm.
Operating temperature ranges from 5°C to 40°C, suitable for typical indoor weighing and measurement systems. The load cell conforms to NTEP and OIML standards, underscoring its reliability for industrial and commercial weighing applications.
Applications include low-level force measurement, postal weighing, counting scales, jewellery scales, and analytical balances, where precision and durability are essential. Suitable for force measurements from 0.3 kg minimum to 3 kg maximum compression load.
Constructed with aluminium housing ensuring light weight and durability. Designed with 4-wire, 28 AWG cable with spiral shield and PVC jacket for reliability. Operating temperature range from 5°C to 40°C suitable for controlled environments.
Compact dimensions of 110 mm width, 33 mm length and 10 mm depth for easy integration. Complies with NTEP and OIML standards for accuracy and safety. Ideal for use in postal scales, counting scales, jewellery scales, and analytical balances.
Explore the Tedea Huntleigh series and other sensor solutions for automation and control applications at EnvMart.
Explore more products in our Strain Gauges category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell measures compression forces from a minimum of 0.3 kg to a maximum of 3 kg.
The load cell has an IP66 rating, providing protection against dust and water ingress.
It operates within a temperature range of 5°C to 40°C, making it suitable for controlled indoor environments.
It is designed with a 4-wire, 28 AWG cable that includes a spiral shield and PVC jacket for reliability.
The gauge resistance is 415Ω, contributing to stable and reliable measurements.
It complies with NTEP and OIML standards, ensuring accuracy and safety for weighing applications.
This model is ideal for use in postal scales, counting scales, jewellery scales, and analytical balances.
The maximum operating voltage is 15V, both AC and DC.
The housing is constructed from aluminium, ensuring a lightweight design.
The output impedance of this model is 350Ω, which is standard for load cells.
It can be installed on platforms up to 200 x 200 mm in size.
