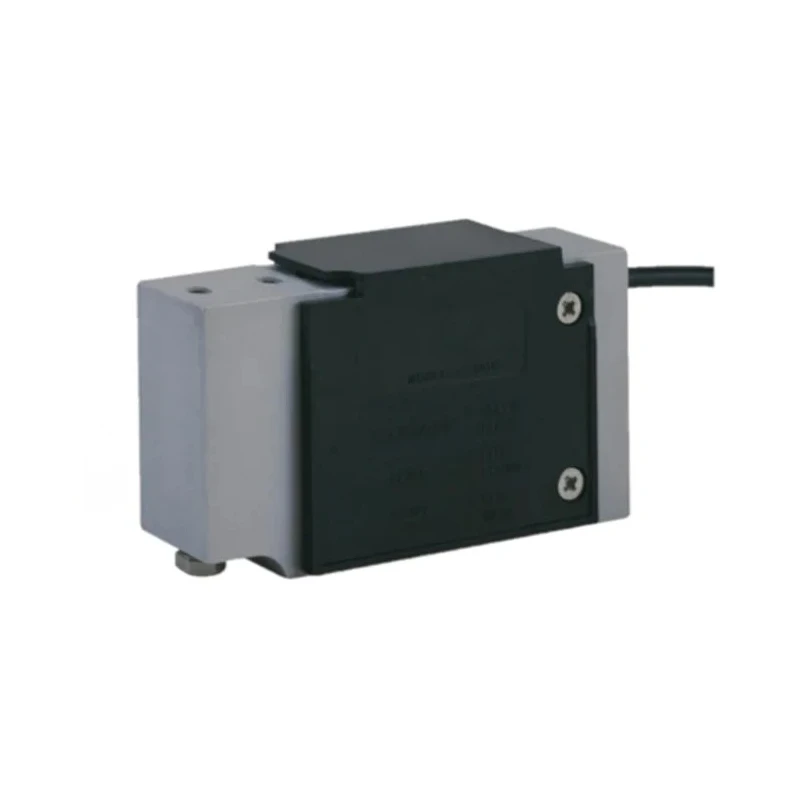

Tedea Huntleigh Single-Point Aluminium Load Cell Model 1015 Series, Compression Force Measurement, 3 kg 01015-010K-G0-56X

Tedea Huntleigh 01015-010K-G0-56X is a Model 1015 Series single-point load cell designed for accurate compression force measurement with capacities ranging from 3 kg minimum to 10 kg maximum. Constructed from aluminium housing, it offers robustness and corrosion resistance suited for industrial and laboratory weighing applications.

This load cell features a cable terminal type connection and an IP65 ingress protection rating that makes it appropriate for environments where dust and water resistance are critical. Its operating temperature range spans from -20°C to 70°C, enabling use in diverse climatic conditions.

The Model 1015 is especially suitable for weighing platforms up to 400 x 400 mm and is used in applications including bench scales, counting scales, and grocery scales. It incorporates a built-in overload stop to provide mechanical protection against excessive loading conditions, enhancing durability and operational safety.

Additionally, the load cell includes two sense wires that compensate for voltage variation due to temperature or cable extension, ensuring signal stability. The product complies with international standards including RoHS, OIML, and NTEP, ensuring compliance with quality and measurement reliability standards in industrial and commercial uses.

The load cell features a cable terminal type for electrical connections. It offers IP65 protection rating suitable for industrial environments. Operating temperature range is from -20°C to 70°C. The housing is constructed from durable aluminium for corrosion resistance.

Suitable for weighing platforms up to 400 x 400 mm. Includes built-in overload protection for mechanical safety. Complies with RoHS, OIML, and NTEP standards for quality and reliability.

Ideal for industrial, laboratory, and commercial weighing applications, the Tedea Huntleigh Model 1015 Load Cell represents a high-accuracy, cost-effective solution for low capacity force measurement tasks. Explore a wide range of sensors and strain gauges within EnvMart’s extensive Electronics & Electrical category.
